Product Summary


  • For 70 or 100V Systems

  • 4 x 2.5" Treated Paper Cone Woofers

  • 110 Hz to 20 kHz Frequency Range

  • Preserves Vocal Intelligibility



  • For 70 or 100V Systems

  • 4 x 2.5" Treated Paper Cone Woofers

  • 110 Hz to 20 kHz Frequency Range

  • Preserves Vocal Intelligibility

  • IP54 Rating for Outdoor Use

  • Powder Coated Aluminum & Steel

  • Locking 4-Pole Euroblock Connector

  • Includes Pan/Tilt Mounting Bracket


Presented in an elegant black design, the QSC AcousticDesign AD-S402T-BK loudspeaker stands as a remarkable audio solution, featuring four 2.5" treated paper cone woofers. With a power-handling capability of 60W within 100V systems and 30W in 70V systems, it ensures reliable performance across varying setups.

Designed to excel in spaces such as transportation terminals, court houses, and lecture halls, where clear vocal intelligibility takes precedence, this loudspeaker shines. Its versatile nature allows it to seamlessly integrate into indoor and outdoor environments, thanks to its IP54 rating for dust and water resistance.

Experience uncompromised auditory excellence with the QSC AcousticDesign AD-S402T-BK loudspeaker—a fusion of impeccable design and impressive functionality, catering to diverse sound reinforcement needs.

QSC AD-S402T-BK Columnar Surface-Mount Loudspeaker (Black)

SKU: ADS402TBK | UPC: 999999532006
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$414.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-S402T-BK Columnar Surface-Mount Loudspeaker (Black) $414.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">For 70 or 100V Systems</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">4 x 2.5" Treated Paper Cone Woofers</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">110 Hz to 20 kHz Frequency Range</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Preserves Vocal Intelligibility</li>\n</ul>

Technical Details

Specifications

Inputs
• 1 x Block 4-Pole Input (Locking)
General
Speaker
Active or Passive
Passive
Number of Included Speakers
4
Speaker Configuration
Full-Range
Power Handling
60 W RMS
Recommended Amplifier Power
120 W RMS
Constant Voltage / Transformer Taps
100 V: 60 / 30 / 15 W or 16 Ohms Bypass 70 V: 30 / 15 / 7.5 W or 16 Ohms Bypass
Impedance
666 Ohms 333 Ohms 167 Ohms
Enclosure Type
Sealed
Drivers
Full-Range Driver
4 x 2.5" / 6.35 cm Paper Cone
Performance
Frequency Range
110 Hz to 20 kHz
Maximum SPL
105 dB (Continuous) 111 dB (Peak)
Sensitivity
85 dB
Coverage Angle
150° H x 35° V 180° H x 90° V 180° H x 80° V 160° H x 46° V 180° H x 28° V
Directivity
11 (Directivity/Q Factor) 10.5 dB (Directivity Index)
Connectivity
I/O
1 x Block 4-Pole Input (Locking)
Environmental
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
Black
Mounting
1 x Bracket Point
Construction Material
Aluminum, Paper, Steel
Dimensions
12.89 x 5.17 x 4.97" / 32.74 x 13.13 x 12.62 cm
Weight
7.5 lb / 3.4 kg (without Bracket)

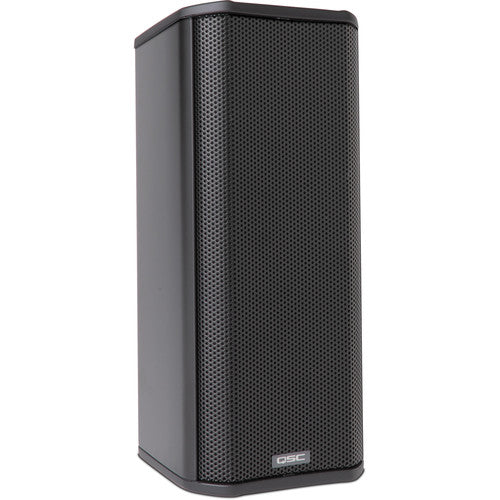

1578333971_1531446
