Product Summary


  • 10" Woofer & 1" Exit Compression Driver

  • 250W RMS Power Handling

  • 90° Conical Coverage

  • 122 dB Peak Maximum SPL



  • 10" Woofer & 1" Exit Compression Driver

  • 250W RMS Power Handling

  • 90° Conical Coverage

  • 122 dB Peak Maximum SPL

  • 50 Hz to 19 kHz Frequency Range

  • Low-Saturation Multi-Tap Transformer

  • Supports 70V, 100V, or 8-Ohm Operation

  • Euroblock Connector for Easy Wiring

  • Includes Award-Winning X-Mount System









Introducing the QSC AD-S10T from the AcousticDesign Series—a sophisticated black surface-mount loudspeaker. Boasting a 10" size and equipped with transformers, this remarkable speaker is paired with the renowned X-Mount system, enhancing its versatility across a spectrum of musical applications. Whether it's at the forefront of auditory experiences or providing an ambient musical backdrop, this speaker excels, adapting seamlessly to both 70/100V setups and 8-ohm configurations. Its adaptable design lends itself to effortless installation on walls or ceilings, whether positioned horizontally, vertically, or in any orientation you desire. Immerse yourself in a world of exceptional sound quality and adaptability with the QSC AD-S10T loudspeaker.

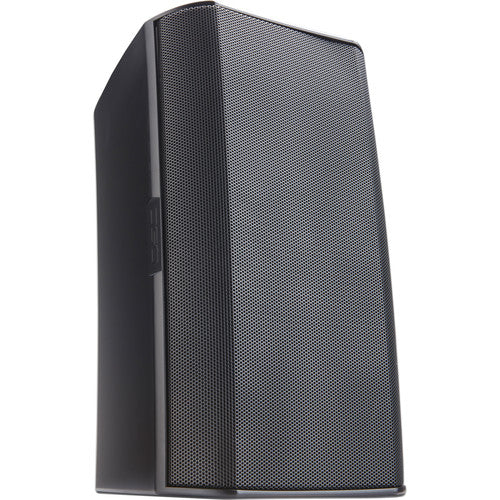

QSC AD-S10T AcousticDesign Series 10" 2-Way 250W Surface-Mount Loudspeaker (Single, Black)

SKU: ADS10TBK | UPC: 684284059499
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$917.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-S10T AcousticDesign Series 10" 2-Way 250W Surface-Mount Loudspeaker (Single, Black) $917.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">10" Woofer &amp; 1" Exit Compression Driver</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">250W RMS Power Handling</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">90° Conical Coverage</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">122 dB Peak Maximum SPL</li>\n</ul>

Technical Details

Specifications

Inputs
• 1 x Block 4-Pole Speaker Input/Thru (Removable)
General
Speaker
Active or Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 2 Hours / At Low-Z: 250 W RMS
Recommended Amplifier Power
500 W
Constant Voltage / Transformer Taps
70 V: 100 / 50 / 25 / 12.5 W or 8 Ohms Bypass 100 V: 100 / 50 / 25 W or 8 Ohms Bypass
Impedance
8 Ohms (Transformer Bypassed)
Transformer Wattage
100 W
Enclosure Type
Sealed
Shielded
No

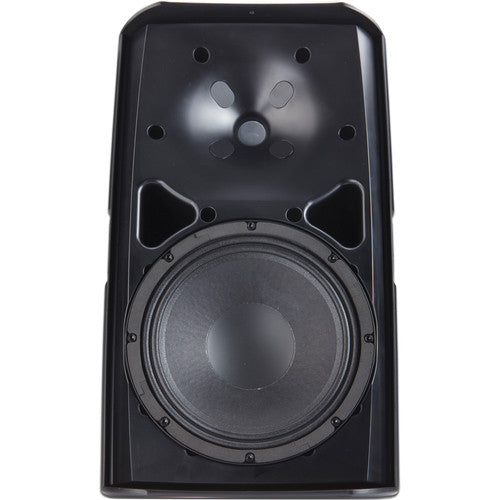

Drivers
HF Driver
1 x 1" / 2.54 cm Compression Driver
HF Voice Coil
1.4" / 3.56 cm
LF Driver
1 x 10" / 25.4 cm Paper Woofer
LF Voice Coil
2.5" / 6.35 cm
Performance
Frequency Range
50 Hz to 19 kHz -10 dB
Maximum SPL
116 dB (Continuous) 122 dB (Peak)
Sensitivity
92 dB SPL
Coverage Angle
90° (Conical)
Directivity
10 (Directivity/Q Factor) 10 dB (Directivity Index)
Maximum Input Voltage
45 V RMS
Connectivity
I/O
1 x Block 4-Pole Speaker Input/Thru (Removable)
Environmental
Environmental Protection
Advertised as Dust Resistant/Humidity Resistant/Water Resistant *Manufacturer Testing: IP54
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
White
Mounting
1 x Bracket Point (Rear) 2 x M10 Suspension (Bottom)
Construction Material
ABS, Aluminum Grille, Polymer
Dimensions
20.3 x 12.5 x 11.7" / 51.56 x 31.75 x 29.72 cm
Weight
31 lb / 14.1 kg
Packaging Info
Package Weight
42.5 lb
Box Dimensions (LxWxH)
32 x 16 x 15.6"
