Product Summary


  • 6.5" Woofer, 0.75" Aluminum Dome Tweeter

  • 60W RMS Power Handling

  • 135° Conical Coverage

  • 112 dB Peak Maximum SPL



  • 6.5" Woofer, 0.75" Aluminum Dome Tweeter

  • 60W RMS Power Handling

  • 135° Conical Coverage

  • 112 dB Peak Maximum SPL

  • 56 Hz to 20 kHz Frequency Range

  • Low-Saturation Multi-Tap Transformer

  • Supports 70V, 100V, or 16-Ohm Operation

  • Euroblock Connector for Easy Wiring

  • Includes Quick-Link Cable Assemblies









Presenting the sophisticated black QSC AD-P6T from the AcousticDesign Series – a pendant-mount loudspeaker with a 6.5" driver and integrated transformer. Meticulously engineered to ensure tonal uniformity across the complete range of AcousticDesign speakers, these speakers are meticulously crafted to excel in various foreground and background music contexts. Whether utilized for 70/100V adaptability or 16-ohm performance, these speakers effortlessly demonstrate their versatility in creating captivating auditory experiences for diverse settings.













QSC AD-P6T AcousticDesign Series 6.5" 2-Way 60W Pendant-Mount Loudspeaker (Black)

SKU: ADP6TBK | UPC: 684284067609
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$379.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-P6T AcousticDesign Series 6.5" 2-Way 60W Pendant-Mount Loudspeaker (Black) $379.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">6.5" Woofer, 0.75" Aluminum Dome Tweeter</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">60W RMS Power Handling</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">135° Conical Coverage</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">112 dB Peak Maximum SPL</li>\n</ul>

Technical Details

Specifications

Inputs
• 1 x Block 4-Pole Speaker Input/Thru (Locking, Removable)
General
Speaker
Active or Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 2 Hours / At Low-Z: 60 W RMS
Recommended Amplifier Power
120 W
Constant Voltage / Transformer Taps
70 V: 60 / 30 / 15 / 7.5 W or 16 Ohms Bypass 100 V: 60 / 30 / 15 W or 16 Ohms Bypass
Impedance
16 Ohms (Nominal, Transformer Bypassed)
Transformer Wattage
60 W
Enclosure Type
Sealed
Shielded
No
Drivers
HF Driver
1 x 0.75" / 1.91 cm Waveguide-Coupled Aluminum Dome Tweeter
LF Driver
1 x 6.5" / 16.51 cm Paper Woofer
LF Voice Coil
1" / 2.54 cm
Performance
Frequency Range
56 Hz to 20 kHz -10 dB
Maximum SPL
106 dB (Continuous) 112 dB (Peak)
Sensitivity
88 dB
Coverage Angle
135° (Conical)
Directivity
6.5 (Directivity/Q Factor) 8 dB (Directivity Index)
Maximum Input Voltage
31 V RMS
Connectivity
I/O
1 x Block 4-Pole Speaker Input/Thru (Locking, Removable)
Maximum Wire Gauge
18 AWG
Environmental
Certifications
UL
Environmental Protection
Advertised as Water Resistant *Manufacturer Testing: IP34
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
Black
Mounting
1 x Suspension (Rear)
Construction Material
ABS, Metal Grille
Dimensions
12.7 x 11.3" / 32.26 x 28.7 cm
Weight
9 lb / 4.1 kg
Packaging Info
Package Weight
12.25 lb
Box Dimensions (LxWxH)
16.3 x 13.8 x 13.7"

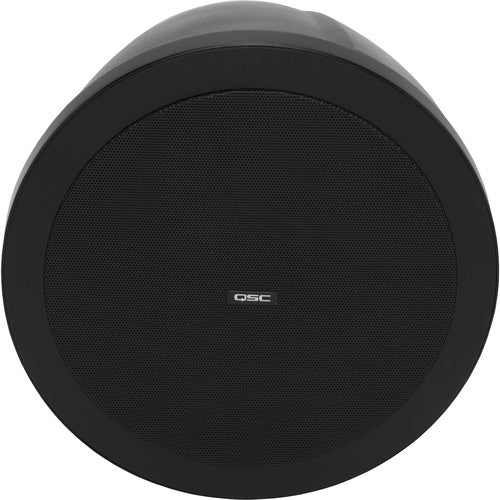

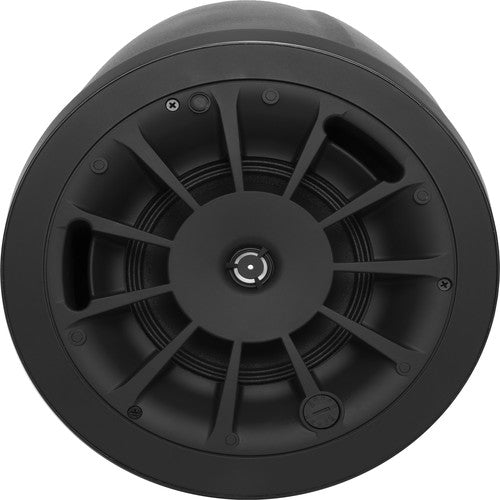

QSC AD-P4T AcousticDesign Series 4.5 2-Way 30W Pendant-Mount Loudspeaker (Black)
