Product Summary


  • 5.25 in (135mm) in weather-resistant cone woofer

  • Reliable 120 W 70 / 100 V transformers with 16 Ω bypass

  • Maximum peak SPL 112 dB (16 Ω bypass)



  • 5.25 in (135mm) in weather-resistant cone woofer

  • Reliable 120 W 70 / 100 V transformers with 16 Ω bypass

  • Maximum peak SPL 112 dB (16 Ω bypass)

  • Includes direct-to-concrete mounting collar (burial mounting option via AD-DWL.BASE acessory)

  • Tamper resistant stainless-steel hardware

  • Rugged F1-F2 UL Rated polypropylene/fiberglass construction exterior

  • Unobtrusive green color and style allows it to blend with the environment (or paintable exterior allows for further customization)

  • Meets Ingress Protection (IP) rating of IP-55 for dust and splash resistance

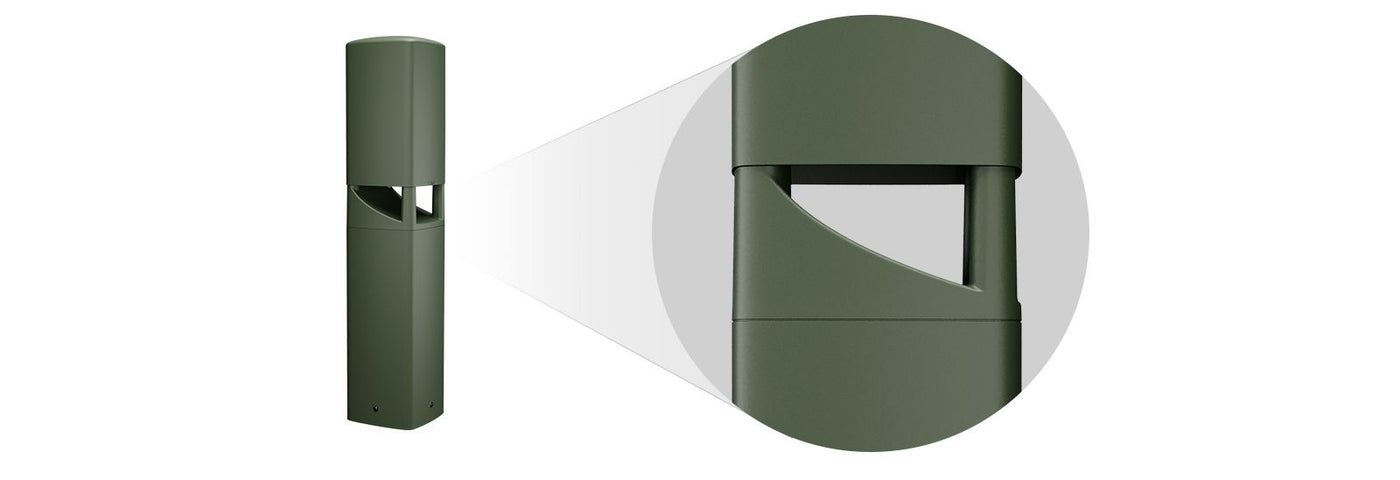

Elevated Outdoor Sound

Experience AcousticDesign™ Series Direct Weather models ensure exceptional outdoor sound experiences with elevated bollard design, enabling unobstructed sound propagation for optimal listener engagement. The companion subwoofer enhances outdoor soundscapes and offers effortless installation with a shared base support footprint.

Enhanced Impact Resistance

Featuring direct-to-concrete or in-earth base supports for permanent installation, tamper-resistant screws, and a rugged build, the AcousticDesign™ Series Direct Weather family is engineered to counteract damage from accidents or tampering attempts.

Weatherproof Endurance

Built to endure long-term outdoor exposure, this series boasts an IP55 Ingress Protection (IP) Rating, robust polypropylene/fiberglass construction, and stainless-steel hardware, ensuring durability against environmental elements.

Advanced Loudspeaker

Voicings For heightened performance and streamlined installation, advanced voicing filter sets utilizing Intrinsic Correction™ techniques are accessible via Q-SYS, delivering optimal results and offering a comprehensive systems solution.

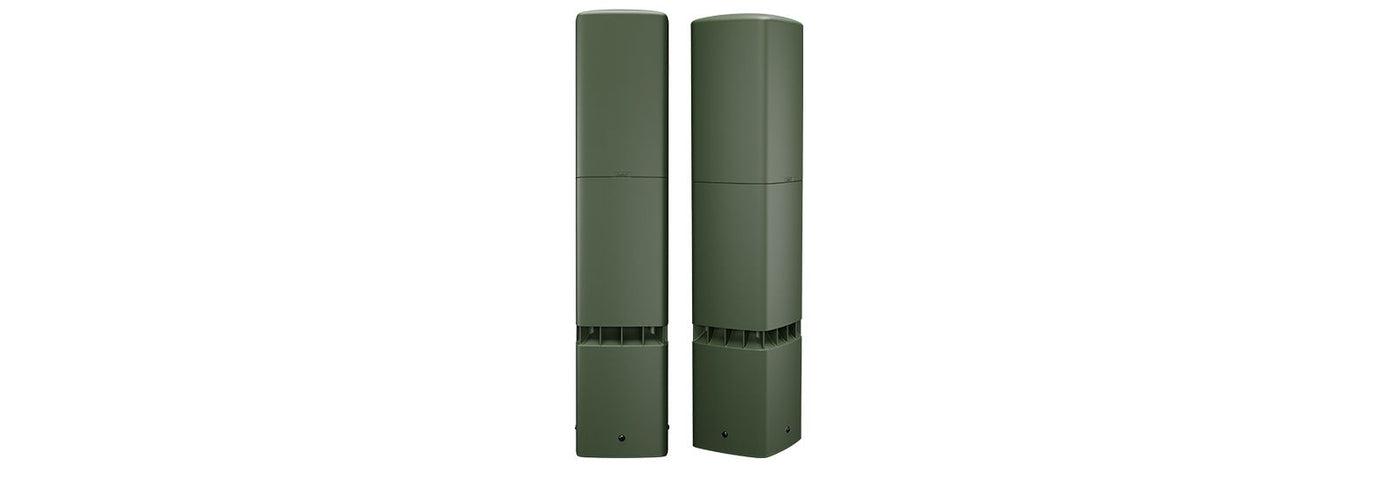

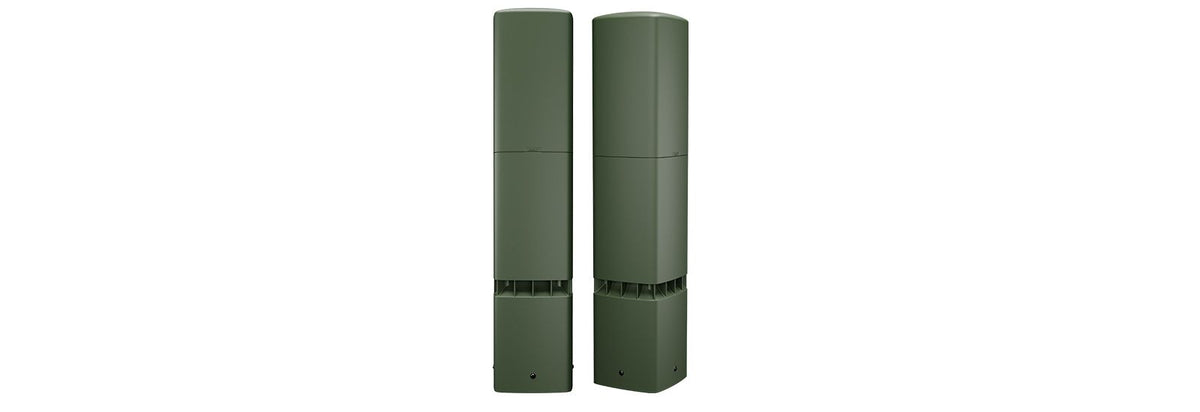

QSC AD-DWL.SUB -Dual 5" Landscape Subwoofer Speaker

SKU: ADDWLSUB
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$692.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-DWL.SUB -Dual 5" Landscape Subwoofer Speaker $692.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>5.25 in (135mm) in weather-resistant cone woofer</li>\n <li>Reliable 120 W 70 / 100 V transformers with 16 Ω bypass</li>\n <li>Maximum peak SPL 112 dB (16 Ω  bypass)</li>\n</ul>

Technical Details

Specifications

Inputs
• Wire pig-tail, blunt
General
System Details AD-DWL.SUB
Effective frequency range 48Hz - 200 Hz
Rated noise power 160 W
Broadband sensitivity >84 dB @ 1 W/1m
Coverage angle (-6 dB) Omni
Maximum continuous SPL 106 dB
Maximum peak SPL 112 dB
Rated impedance 16 Ω
Transformer taps 12.5 W, 25 W, 50 W, 100 W / 25 W, 50 W, 100 W
Transducer 2x 5.25 in (135 mm) weather resistant cone woofer, ferrite magnet, rubber surround
Input connector type Wire pig-tail, blunt
Enclosure material Glass-Filled polypropylene, F1-F2 UL Rated
Grille material Polyester fabric on polycarbonate frame
Mount Direct to concrete
ENCLOSURE DETAILS
Ingress protection (IP - 55)
Operating environment Designed for outdoor use
Testing Exceeded MilSpec819 standard for humidity, salt spray, temperature, and UV Passed Mil-STD-202f standard for salt spray (specific to electrical components)
Product dimensions (HWD) 30.16 in (766mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support)
Net weight 10.36 lb (4.7 kg)
Shipping weight 14.8 lb (6.7 kg)
Shipping dimensions (HWD) 38.23 in (971mm) x 10.63 in (270mm) x 10.63 in (270mm)
Included accessories Direct-to-concrete mounting collar
QSC AD-DWL.SUB -Dual 5 Landscape Subwoofer Speaker
QSC

QSC AD-DWL.SUB -Dual 5" Landscape Subwoofer Speaker

$692.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

Wire pig-tail, blunt

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<table class="striped" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td><strong>System Details</strong></td>
<td><strong>AD-DWL.SUB</strong></td>
</tr>
<tr>
<td>Effective frequency range</td>
<td>48Hz - 200 Hz</td>
</tr>
<tr>
<td>Rated noise power</td>
<td>160 W</td>
</tr>
<tr>
<td>Broadband sensitivity</td>
<td>&gt;84 dB @ 1 W/1m</td>
</tr>
<tr>
<td>Coverage angle (-6 dB)</td>
<td>Omni</td>
</tr>
<tr>
<td>Maximum continuous SPL</td>
<td>106 dB</td>
</tr>
<tr>
<td>Maximum peak SPL</td>
<td>112 dB</td>
</tr>
<tr>
<td>Rated impedance</td>
<td>16 Ω</td>
</tr>
<tr>
<td>Transformer taps</td>
<td>12.5 W, 25 W, 50 W, 100 W / 25 W, 50 W, 100 W</td>
</tr>
<tr>
<td>Transducer</td>
<td>2x 5.25 in (135 mm) weather resistant cone woofer, ferrite magnet, rubber surround</td>
</tr>
<tr>
<td>Input connector type</td>
<td>Wire pig-tail, blunt</td>
</tr>
<tr>
<td>Enclosure material</td>
<td>Glass-Filled polypropylene, F1-F2 UL Rated</td>
</tr>
<tr>
<td>Grille material</td>
<td>Polyester fabric on polycarbonate frame</td>
</tr>
<tr>
<td>Mount</td>
<td>Direct to concrete</td>
</tr>
<tr>
<td colspan="2"><strong>ENCLOSURE DETAILS</strong></td>
</tr>
<tr>
<td>Ingress protection</td>
<td>(IP - 55)</td>
</tr>
<tr>
<td>Operating environment</td>
<td>Designed for outdoor use</td>
</tr>
<tr>
<td>Testing</td>
<td>Exceeded MilSpec819 standard for humidity, salt spray, temperature, and UV

Passed Mil-STD-202f standard for salt spray (specific to electrical components)</td>
</tr>
<tr>
<td>Product dimensions (HWD)</td>
<td>30.16 in (766mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support)</td>
</tr>
<tr>
<td>Net weight</td>
<td>10.36 lb (4.7 kg)</td>
</tr>
<tr>
<td>Shipping weight</td>
<td>14.8 lb (6.7 kg)</td>
</tr>
<tr>
<td>Shipping dimensions (HWD)</td>
<td>38.23 in (971mm) x 10.63 in (270mm) x 10.63 in (270mm)</td>
</tr>
<tr>
<td>Included accessories</td>
<td>Direct-to-concrete mounting collar</td>
</tr>
</tbody>
</table>
