Product Summary


  • 5.25 in (135 mm) in weather-resistant cone woofer; (2x) 1 in (25 mm) aluminum dome tweeter

  • 360° focused outdoor coverage

  • Reliable 60W 70 / 100V transformers with 16 Ω bypass

  • Maximum peak SPL 110 dB (16 Ω bypass)


The AcousticDesign™ Series Direct Weather models are specifically designed to tackle the challenges of outdoor environments. Their raised bollard design ensures sound travels unobstructed, delivering an exceptional listening experience. With a 360° coverage angle, these models provide comprehensive sound distribution that aligns with specific environmental needs.

Enhanced Outdoor Listening Experience

The AcousticDesign™ Series Direct Weather models are tailored for outdoor environments, utilizing an elevated bollard design that allows sound to rise above obstructions, ensuring an optimal auditory encounter. With a 360° coverage angle, these models provide thorough sound dispersion to meet specific environmental needs.

Resilience Against Impact

Designed for permanence, the AcousticDesign™ Series Direct Weather models offer direct-to-concrete or in-earth base supports, along with tamper-resistant screws and a sturdy exterior. This family of speakers is equipped to resist damage from accidents or tampering attempts.

Weatherproof Endurance

With an IP55 Ingress Protection (IP) Rating, sturdy polypropylene/fiberglass construction, and stainless-steel hardware, this series is engineered to withstand prolonged exposure to outdoor conditions.

Advanced QSC Loudspeaker Voicings

For optimized performance and efficient installation, advanced voicing filter sets are available through QSC Intrinsic Correction™ techniques, accessible via Q-SYS or CXD Series amplifier platforms, providing a comprehensive QSC systems solution.

QSC AD-DWL.360 5.25" 2-Way Direct Weather Landscape Loudspeaker with 360° Coverage

SKU: ADDWL360
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$675.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-DWL.360 5.25" 2-Way Direct Weather Landscape Loudspeaker with 360° Coverage $675.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>5.25 in (135 mm) in weather-resistant cone woofer; (2x) 1 in (25 mm) aluminum dome tweeter</li>\n <li>360° focused outdoor coverage</li>\n <li>Reliable 60W 70 / 100V transformers with 16 Ω bypass</li>\n <li>Maximum peak SPL 110 dB (16 Ω bypass)</li>\n</ul>

Technical Details

Specifications

Inputs
• Wire pig-tail, blunt
General

Features

  • 5.25 in (135mm) in weather-resistant cone woofer; (2x) 1 in (25mm) aluminum dome tweeter
  • 360° focused outdoor coverage
  • Reliable 60 W 70 / 100 V transformers with 16 Ω bypass
  • Maximum peak SPL 110 dB (16 Ω bypass)
  • Includes direct-to-concrete mounting collar (burial mounting option via AD-DWL.BASE accessory)
  • Tamper resistant stainless-steel hardware
  • Rugged F1-F2 UL Rated polypropylene/fiberglass construction exterior
  • Unobtrusive green color and style allows it to blend with the environment (or paintable exterior allows for further customization)
  • Advanced voicing filter sets using Intrinsic Correction™, available through Q-SYS
  • Meets Ingress Protection (IP) rating of IP-55 for dust and splash resistance

Benefits

  • Optimal Outdoor Sound Experience All AcousticDesign™ Series Direct Weather models address the variabilities of outdoor environments with an elevated bollard design, allowing sound to travel above obstructions for an optimal listener experience. The 360° coverage angle enables customization for individual environmental requirements.
  • Impact Resistance Featuring direct-to-concrete or in-earth base supports for permanent installation as well as tamper-resistant screws and a rugged exterior, the AcousticDesign™ Series Direct Weather family mitigates damage from accident or attempted tampering.
  • All Weather Durability With an Ingress Protection (IP) Rating of IP55, durable polypropylene/fiberglass construction and stainless-steel hardware, this series is built to withstand the long-term outdoor exposure.
  • Advanced Loudspeaker Voicings To further enhance performance and speed of install with optimum result, advanced voicing filter sets using Intrinsic Correction™ techniques are available via Q-SYS for a complete systems solution.
System Details AD-DWL.360
Effective frequency range 55 Hz - 25 kHz
Rated noise power 80 W
Broadband sensitivity >84 dB @ 1 W/1m (200 - 10 kHz)
Coverage angle (-6 dB) 360° (500 Hz – 5 kHz)
Directivity factor (Q) Coming Soon
Directivity Index Coming Soon
Maximum continuous SPL 104 dB
Maximum peak SPL 110 dB
Rated impedance 16 Ω
Transformer taps 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W
Transducer (1)  5.31 in weather resistant cone woofer, ferrite magnet, rubber surround (2)  1 in aluminum dome tweeter, rubber surround
Input connector type Wire pig-tail, blunt
Enclosure material Glass-Filled polypropylene, F1-F2 UL Rated
Grille material Polyester fabric on polycarbonate frame
Mount Direct to concrete
ENCLOSURE DETAILS
Ingress protection (IP - 55)
Operating environment Designed for outdoor use
Testing Exceeded MilSpec819 standard for humidity, salt spray, temperature, and UV Passed Mil-STD-202f standard for salt spray (specific to electrical components)
Product dimensions (HWD) 30.16 in (76mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support)
Net weight 10.36 lb (4.7 kg)
Shipping weight 14.8 lb (6.7 kg)
Shipping dimensions (HWD) 38.23 in (971mm) x 10.63 in (270mm) x 10.63 in (270mm)
Included accessories Direct-to-concrete mounting collar

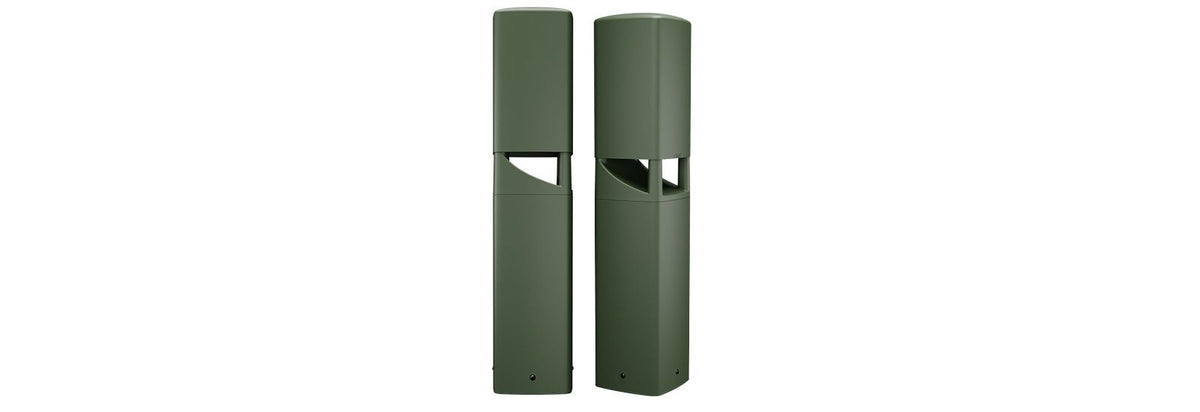

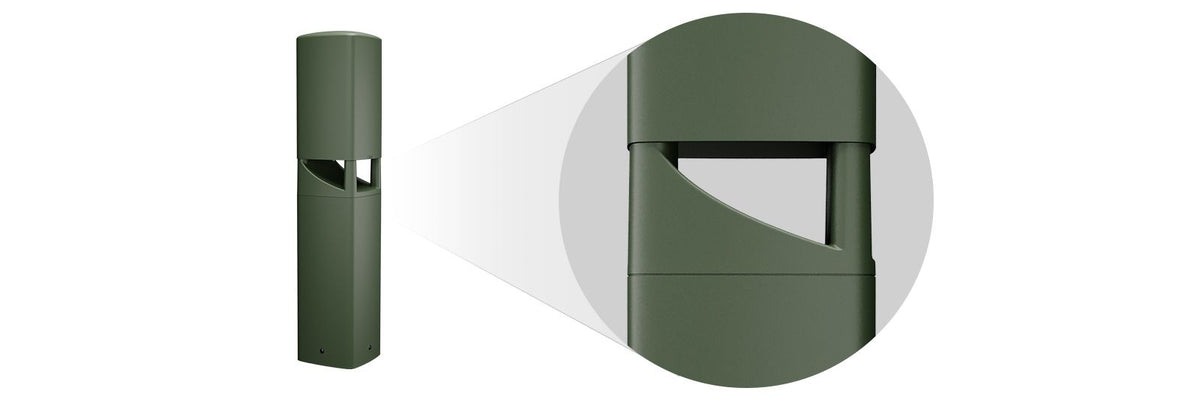

QSC AD-DWL.180 5 2-way 180° coverage Landscape Speaker
