Product Summary


  • 8" Low-Frequency Woofer

  • 1.4" Diaphragm Compression Driver

  • 200 Watt Continuous Power Rating

  • 70V/100V Multi-Tap Transformer Included



  • 8" Low-Frequency Woofer

  • 1.4" Diaphragm Compression Driver

  • 200 Watt Continuous Power Rating

  • 70V/100V Multi-Tap Transformer Included









Introducing the QSC AD-C920820 High-Output Ceiling Mount Loudspeaker with a round grille design. This speaker is meticulously engineered to excel in scenarios that demand powerful music playback, clear public address, and efficient distributed audio. Part of the AcousticDesign Series, these installation loudspeakers are meticulously crafted to ensure seamless operation and adaptability in a variety of environments.

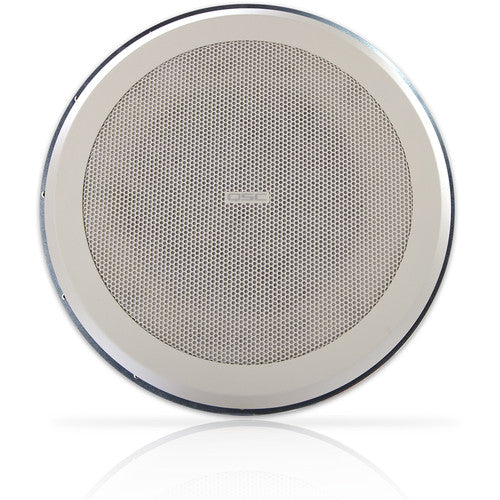

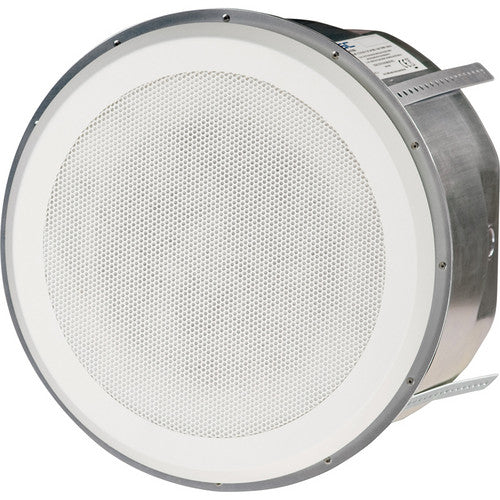

QSC AD-C820 High-Output Ceiling Mount Loudspeaker (Round Grille)

SKU: ADC820RSYSTEM
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$920.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-C820 High-Output Ceiling Mount Loudspeaker (Round Grille) $920.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">8" Low-Frequency Woofer</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">1.4" Diaphragm Compression Driver</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">200 Watt Continuous Power Rating</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">70V/100V Multi-Tap Transformer Included</li>\n</ul>

Technical Details

Specifications

Inputs
• Back box (AD-C800BB): ceramic block connector inputs and "through" connectors (rated for 400 W max). Loudspeaker Baffle (AD-C820): 10-pin MATE-N-LOK connector and faston connectors.
General

QSC AD-C820 Specs

Configuration
Passive
Woofer
8" (203 mm) ferrite woofer
Tweeter
1.4" (36 mm) neodymium compression driver
Maximum Output
Calculated Peak Output: 120 dB SPL Calculated Continuous Output: 114 dB SPL
Nominal Coverage Angle
90° horizontal and vertical
Nominal Impedance
16 ohms
Power Rating
200 W
SPL
91 dB SPL, 1W/1m
Transformer Taps
100 V: 16 ohms bypass, 100 W, 50 W, 25 W 70 V: 16 ohms bypass, 100 W, 50 W, 25 W, 12.5 W
Volume
Enclosure volume: 18 L (0.64 ft 3)
Rating
CE, UL 1480 (commercial/professional use) UL 2043 (air handling spaces)
Connectors
Back box (AD-C800BB): ceramic block connector inputs and "through" connectors (rated for 400 W max). Loudspeaker Baffle (AD-C820): 10-pin MATE-N-LOK connector and faston connectors.
Dimensions
Diameter: 14.9" (37.9 cm)Depth: 11.2" (28.4 cm)
Weight
17.5 lb (7.9 kg)
Packaging Info
Package Weight
29 lb
Box Dimensions (LxWxH)
1 x 1 x 1"
QSC AD-C820 High-Output Ceiling Mount Loudspeaker (Round Grille)
