Product Summary


  • 6.5" Subwoofer with Dual Voice Coil

  • Better Thermal Dissipation & Output

  • 100W at 4 Ohms

  • 70/100V Transformer

  • Locking 4-Pole Euroblock Connectors

  • Removable Conduit Cover Plat



  • 6.5" Subwoofer with Dual Voice Coil

  • Better Thermal Dissipation & Output

  • 100W at 4 Ohms

  • 70/100V Transformer

  • Locking 4-Pole Euroblock Connectors

  • Removable Conduit Cover Plate

  • 4 x "Dog-Ear" Style Mounting System

  • Intrinsic Correction Voicing Capable

  • C-Ring, Cut-Out Templates, Tie Rails

  • Magnetic Grille









Introducing the sleek black QSC AD-C.SUB 6.5" Small-Format Passive Ceiling Subwoofer – a meticulously engineered and enclosed subwoofer system designed to enhance background music experiences that demand impeccable depth and clarity, even when enjoyed at lower volume levels. Crafted for environments where sonic precision is essential, this purpose-built system delivers a subwoofer encounter that's both sophisticated and immersive.

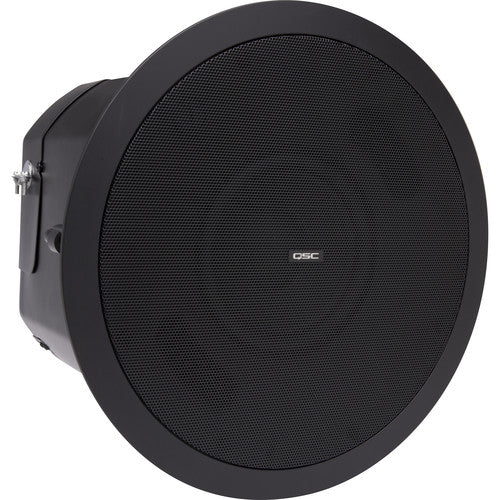

QSC AD-C.SUB 6.5" Small-Format Passive Ceiling Subwoofer (Black)

SKU: ADCSUBBK
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$520.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-C.SUB 6.5" Small-Format Passive Ceiling Subwoofer (Black) $520.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">6.5" Subwoofer with Dual Voice Coil</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Better Thermal Dissipation &amp; Output</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">100W at 4 Ohms</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">70/100V Transformer</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Locking 4-Pole Euroblock Connectors</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Removable Conduit Cover Plat</li>\n</ul>

Technical Details

Specifications

Inputs
• 3 x Block 4-Pole Speaker Input/Output (Locking)
General
Speaker
Active or Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Subwoofer
Power Handling
100 W
Recommended Amplifier Power
100 W
Constant Voltage / Transformer Taps
70 V: 100 / 50 / 25 / 12.5 W 100 V: 100 / 50 / 25 W or 4 Ohms Bypass
Impedance
4 Ohms
Enclosure Type
Bass-Reflex
Drivers
LF Driver
1 x 6.5" / 165.1 mm Woofer
Performance
Frequency Range
45 Hz to 150 Hz
Maximum SPL
111 dB (Peak) 105 dB (Continuous)
Sensitivity
86 dB
Coverage Angle
250° (Conical)
Directivity
1.8 dB (Directivity Index) 1.5 (Directivity/Q Factor)
Connectivity
I/O
3 x Block 4-Pole Speaker Input/Output (Locking)
Maximum Wire Gauge
12 AWG
Environmental
Certifications
CE, RoHS, UL
Environmental Protection
Advertised as Dust Resistant/Moisture Resistant *Manufacturer Testing: IP34
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
Black
Mounting
1 x In-Ceiling
Construction Material
ABS, Steel
Dimensions
13.4 x 10.4" / 340.36 x 264.16 mm
Weight
19.2 lb / 8.7 kg
