Product Summary


  • 6.5" Woofer

  • 0.75" Tweeter

  • Directivity Matched Transition Waveguide

  • Intrinsic Correction Voicings

  • Blind Mounting System

  • Snap-Fit Magnetic Grille

  • Blemish-Free Removable Logo









Introducing the white QSC AcousticDesign 6.5" Loudspeaker – a carefully crafted two-way ceiling speaker meticulously designed to excel in a diverse array of foreground and background sound reinforcement applications. Seamlessly integrating 70/100V transformers with 16-Ohm bypass configurations, this speaker offers exceptional versatility. Highlighting a premium 6.5" weather-treated paper cone woofer, accompanied by a 1" voice coil and a 0.75" aluminum dome tweeter thoughtfully positioned on a Directivity Matched Transition waveguide, this speaker ensures precise sound distribution. Delivered as a pair, these speakers prove ideal for elevating auditory experiences across various settings, including restaurants, retail spaces, audiovisual installations, educational facilities, and transportation terminals, delivering impeccable audio quality.

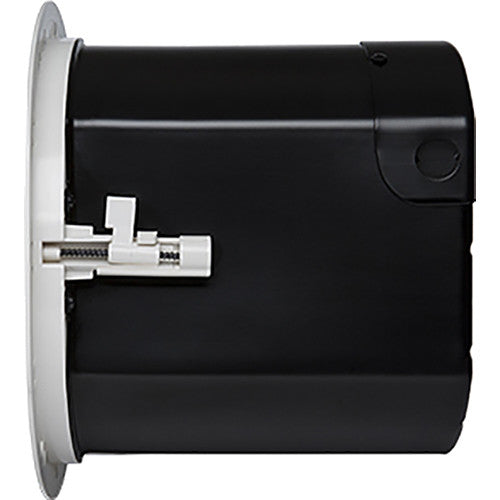

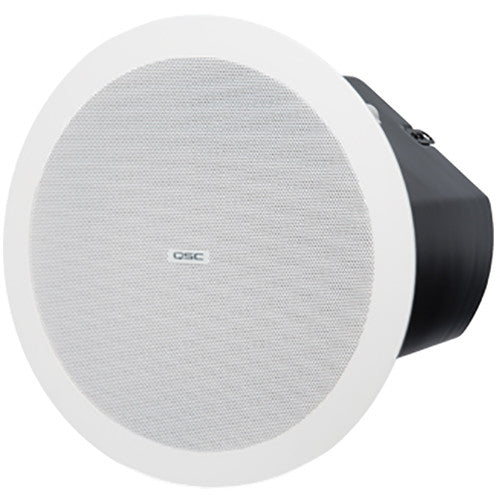

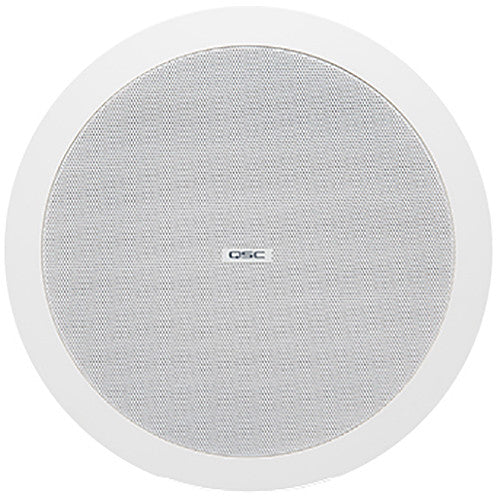

QSC AcousticDesign 6.5" Two-Way Ceiling Loudspeaker (Pair, White)

SKU: ADC6TWH | UPC: 684284067562
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$265.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AcousticDesign 6.5" Two-Way Ceiling Loudspeaker (Pair, White) $265.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Technical Details

Specifications

Inputs
• Euroblock connector with parallel output
General
Low Frequency Transducer
6.5" / 165 mm weather-treated paper cone woofer
High Frequency Transducer
0.75" / 19 mm aluminum dome tweeter
Frequency
65 Hz - 20 kHz
Power
60 W / 31 V (rms)
Sensitivity
88 dB (Rated at 1 W, 1 m) 74 dB (EN54-24 at 1 W, 4 m)
Coverage
135° conical Directivity Matched Transition (rated at -6 dB) Horizontal / Vertical: 500 Hz: 176° / 177° 1 kHz: 151° / 151° 2 kHz: 99° / 130° 4 kHz: 71° / 59°
SPL
(Hz: dB): 500: 59.4; 630: 59.2; 800: 61.8; 1000: 62.1; 1250: 61.6; 1600: 62.9; 2000: 64.4; 2500: 61.9; 3150: 63.2; 4000: 65.7
Equalization
EN54-24 Equalization: High Pass, 12 dB/oct, Butterworth, Fc: 200 Hz High Shelf, 12 dB/oct, (Q)1 / (BW)1.38, Fc: 8 kHz, gain: +4 dB
Directivity Factor
6.5
Directivity Index
8 dB
Maximum SPL
106 dB / 112 dB (rated, 1 m (continuous / peak) 92.31 dB / 91.80 dB (EN54-24, 4 m (low-Z / highest-tap)
Recommended Amplifier Power
60 W
Transformer Taps
Bypass: 16 Ohms 7.5 W (70 V); 15 W (100 V) Tap: 667 Ohms 15 W (70 V); 30 W (100 V) Tap: 333 Ohms 30 W (70 V); 60 W (100 V) Tap: 167 Ohms 60 W (70 V); N/A (100 V) Tap: 83 Ohms
Input
Euroblock connector with parallel output
Enclosure
ABS baffle on powder-coated steel back can
Grille
Powder coated steel
Rating
IP34, designed for indoor use
Safety
EN54-24: 2008 type A, 0359-CPR-00623 UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems
Operating Temperature
-4 to 122°F / -20 to 50°C
Cutout Diameter
9.65" / 245 mm
Dimensions
¿ 11.02 x 9.32" / ¿ 280 x 237 mm
Weight
9.5 lb / 4.3 kg
Packaging Info
Package Weight
27 lb
Box Dimensions (LxWxH)
29.5 x 15.3 x 13"
