Product Summary


  • 4.5" Paper Cone Woofer

  • 0.75" Aluminum Dome Tweeter

  • 70 Hz to 20 kHz Frequency Range

  • 70/100V Transformer with 16-Ohm Bypass



  • 4.5" Paper Cone Woofer

  • 0.75" Aluminum Dome Tweeter

  • 70 Hz to 20 kHz Frequency Range

  • 70/100V Transformer with 16-Ohm Bypass

  • Directivity Matched Transition Waveguide

  • Snap-Fit Magnetic Grille

  • 3x Double Stepped Blind Mount System

  • Removable Conduit Cover Plate









Elevate your audio environment with the dual set of RAL 9010 white AcousticDesign 4.5" 2-Way, Low-Profile Ceiling Loudspeakers by QSC. Meticulously engineered for both foreground and background sound enhancement needs, these speakers are equipped with a versatile 70/100V multi-tap transformer that can seamlessly transition to 16-Ohm speaker systems when needed. Each unit showcases a superior 4.5" weather-treated paper cone woofer, complemented by a 1" voice coil and a 0.75" aluminum dome tweeter, thoughtfully positioned on a DMT waveguide for optimal sound dispersion. Perfectly suited for spaces like restaurants, retail establishments, educational institutions, airports, and train stations, these speakers enhance sound quality to create an immersive auditory experience.

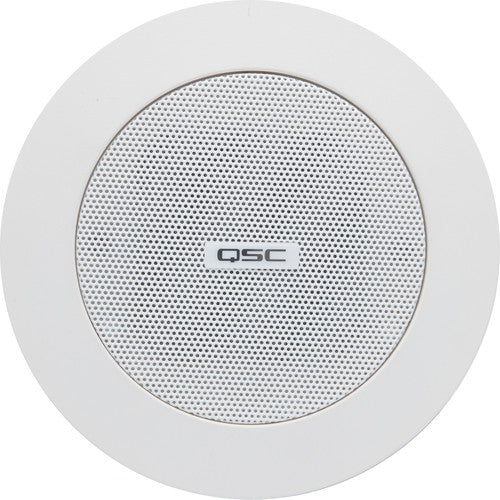

QSC AcousticDesign 4.5" 2-Way, Low-Profile Ceiling Loudspeaker (Pair, White)

SKU: ADC4TLP | UPC: 684284067548
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$218.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AcousticDesign 4.5" 2-Way, Low-Profile Ceiling Loudspeaker (Pair, White) $218.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">4.5" Paper Cone Woofer</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">0.75" Aluminum Dome Tweeter</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">70 Hz to 20 kHz Frequency Range</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">70/100V Transformer with 16-Ohm Bypass</li>\n</ul>

Technical Details

Specifications

Inputs
• Euroblock connector with parallel output
General

QSC AD-C4T Specs

Low Frequency Transducer
4.5" / 114 mm weather-treated paper cone woofer
High Frequency Transducer
0.75" / 19 mm aluminum dome tweeter
Frequency Response
70 Hz - 20 kHz
Power Handling
30 W / 22 V (RMS)
Sensitivity
87 dB at 1 W, 3.3' / 1 m
Coverage
150° conical DMT at -6 dB
Directivity Factor
4.5
Directivity Index
6.5 dB
Maximum SPL
Continuous: 102 dB Peak: 108 dB
Nominal Impedance
16 Ohms
Recommended Amplifier Power
60 W
Transformer Taps
Bypass: 16 Ohms 3.75 W (70 V), 7.5 W (100 V), Tap: 1333 Ohms 7.5 W (70 V), 15 W (100 V), Tap: 667 Ohms 15 W (70 V), 30 W (100 V), Tap: 333 Ohms 30 W (70 V), N/A (100 V), Tap: 167 Ohms
Input Interface
Euroblock connector with parallel output
Enclosure
ABS baffle on powder-coated steel back can
Grille
Powder-coated steel
IP Rating
IP34, for indoor use
Safety
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces Transformer UL registered per UL1876, ROHS, CE compliant Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849/EN60849 systems
Operating Temperature
-4 to 122°F / -20 to 50°C
Cutout Diameter
9.65" / 245 mm
Dimensions
11.02 x 3.93" / 28 x 10 cm
Weight
6.6 lb / 3 kg
Packaging Info
Package Weight
22 lb
Box Dimensions (LxWxH)
27.5 x 15 x 7.5"

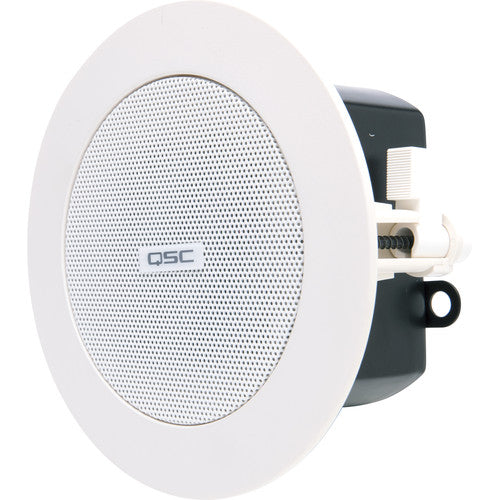

1552303403_1459277
