Key Features
- <ul>\n <li>Deep Lows, Euphoric Highs</li>\n <li>Freq Range: 95 Hz - 18 kHz</li>\n</ul>
$90.00
Technical Details
| Drivers | 200 mm (8 in) Full-Range, Dual-cone |
| Frequency Range (-10dB) | 95 Hz – 18 kHz |
| Coverage Angle | 90° conical |
| Sensitivity | 97 dB (2k - 8k Hz) |
| Driver Power Capacity | 40W (160W peak), 2 hrs25W (100W peak), 100 hrs |
| Transformer Taps | 6W, 3W, 1.5W, (0.75W at 70V only) |
| Input Connectors | Bare Wire |
| Magnet | 10 ounces (283 g) |
| Safety Agency | Transformer is UL registered per UL1876 |
| Installation | Full assembly consists of 8138 speaker plus MTC-81BB8 backbox andMTC-81TB8 tile bridge. Four screw holes at industry standard 286 mm (11.25 in) mounting circle. |
| Dimensions (Diameter x Depth) | 327 mm (12.9") diameter baffle x 84 mm (3.3") depth from back of baffle. Overall depth, 99 mm (3.9") |
| Mounting points | 4 points on 286 mm (11.25 in) diameter mounting circle |
| Ceiling Cutout Size | 300 mm (11.75") with tile bridge and backbox.228 mm (9.0") diameter as stand alone. |
| Net Weight | 1.4 kg (3.0 lb) |
| Included Accessories | Integral grille, 4 pcs M4 x 40 mm tapping screws |
| Optional Accessories | MTC-81BB8 backcan, MTC-81TB8 tile bridge |
| Power Rating | See transformer taps |
| Maximum SPL (1m) | 105 dB (top 70V/100V tap) |
| Color | White |
| Backcan | formed steel (accessory) |
| Baffle/Rim | Plastic |
| Plenum Usage | Yes, with accessory backcan |
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comOnce we have all the information requested above, an account and order will be created.
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.

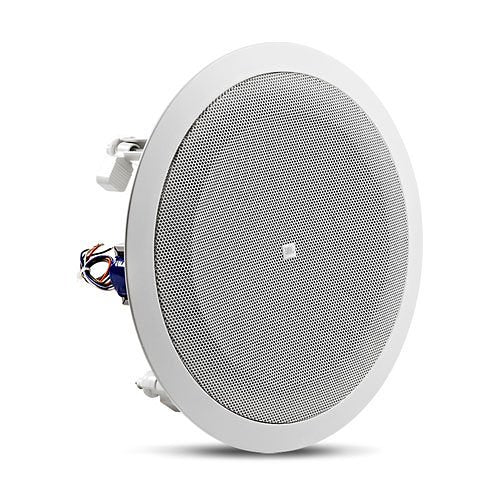

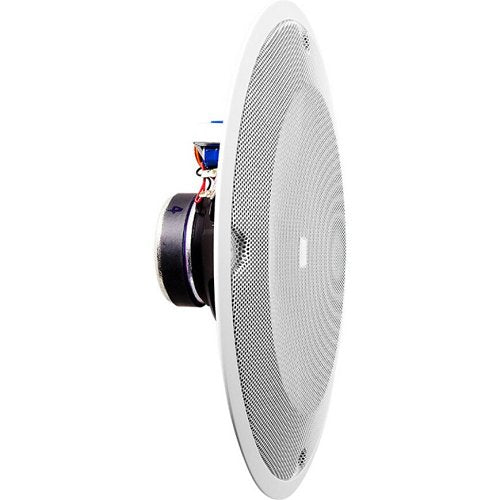

JBL Professional HPD8138 8" Full-Range, In-Ceiling Loudspeaker for use with Pre-Install Backcans, White, 4-Pack
Add to Cart for Lower Price
Call for Price
$90.00
