Product Summary


  • Dual CMCD-82H 8” Horn

  • Streamlined Integrated Rigging System

  • Dual 2432H Compression Drivers


Elevated Output Mid-High Range Speaker System Experience an unparalleled sonic impact with the PD764i Precision Directivity™ loudspeaker system, designed to deliver resounding sound reinforcement even across extensive throw distances that typically challenge single-driver configurations. With the capability to generate over 104 dB SPL (continuous) at distances reaching 50 meters (approximately 165 feet), the PD764i stands as a sonic powerhouse. Whether integrated into arrays with other members of the PD family or utilized independently as part of a dispersed setup, its performance remains unmatched.

Key Attributes:

  • Symmetrical 60° by 40° Coverage Pattern: Flexibility in orientation—horizontal or vertical—within an array is facilitated by the consistent frontal dimensions.

  • Innovative IFS™ Interference Free Summation: The incorporation of a dual HF driver module eradicates detrimental interference, leading to a remarkable 6 dB surge in output.

  • Dual 2432H Compression Drivers: Boasting 3” diaphragms, these drivers stand as a testament to precision engineering.

  • Dual CMCD-82H 8” Horn Loaded Cone Mid-Range Drivers: Elevating output levels by an impressive 6 dB compared to conventional designs.

  • Pattern Integrity Extended to Sub-400 Hz Frequencies: Enjoy consistent pattern control throughout the audible spectrum.

  • Co-Axial Mid/High-Frequency Module Configuration: Enhancing mid-frequency arrayability while minimizing overall system dimensions.

  • Streamlined Integrated Rigging System: The array design and construction process is simplified, thanks to the thoughtfully integrated rigging system.


Unleash the potential of your audio experience with the PD764i Precision Directivity™ loudspeaker system. Witness a convergence of cutting-edge technology, meticulous engineering, and an unwavering commitment to audio excellence.

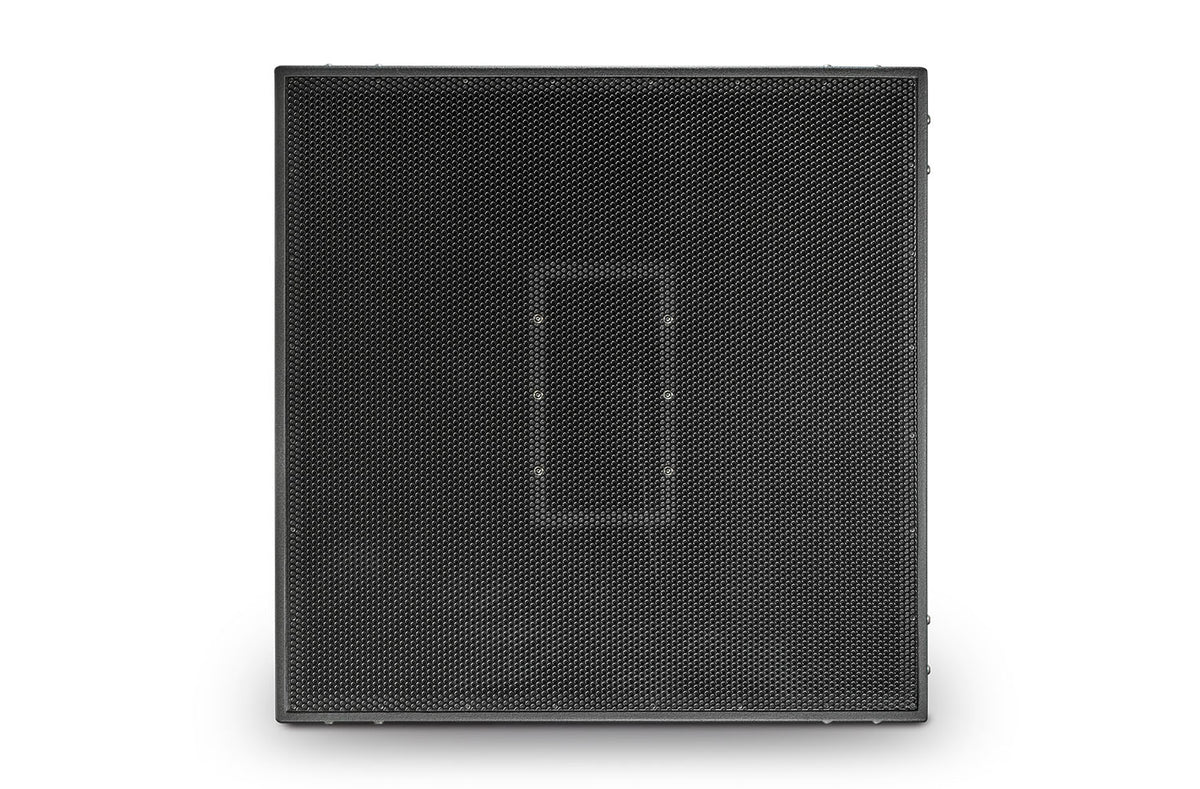

JBL PD764i-WRX 8" Very High Output Mid-High Loudspeaker System

SKU: PD764iWRX
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD764i-WRX 8" Very High Output Mid-High Loudspeaker System Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Dual CMCD-82H 8” Horn</li>\n <li>Streamlined Integrated Rigging System</li>\n <li>Dual 2432H Compression Drivers</li>\n</ul>

Technical Details

Specifications

General
Frequency Range (-10dB) 200 Hz to 19.5 kHz
Frequency Response (±3 dB) 230 Hz - 18.5 kHz
Coverage Pattern 60° x 40°
Directivity Index (DI) 13 dB
System Sensitivity (1w @ 1m) Passive Mid-High: 110 dB SPL
Maximum SPL (1m) MHF - 142 dB Peak
Transducer Power Rating (AES) MHF - 400 W (1600 W Peak)
Crossover Frequencies 1.2 kHz
DSP Custom DSP for Crown ITHD and IT4x3500HD amplifiers
MF Driver 2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil
HF Driver 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance MF: 4 ohms HF: 16 ohms
Enclosure Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood
Enclosure WRC/WRX Version For direct exposure or extreme environments, berglassed with stainless steel hardware
Grille Black powder coated zinc treated 14 gauge perforated steel with black foam backing
Grille WRC/WRX Version Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh
Input Connector NL4 for bi-amp operation
Input Connectors WRC/WRX Version 4 conductor 16 awg direct burial cable assy 20 length
Environmental Available WRC/WRX Version: IP55
Suspension Attachment 52 total points (12 top and bottom, 11 each side, 6 back), M10 threaded hardwar
Dimensions (H x W x D) 991 mm x 991 mm x 1145.8 mm(39.0 x 39.0 x 45.1 in)
Net Weight (each) 215 lbs (97.7 kg)
Crossover Modes Passive
System Power Rating MHF - 400 W (1600 W Peak) (AES rated)
