Product Summary


  • Dual 15” Low-Frequency Differential Drive

  • Dual 2432H Compression Drivers

  • Dynamic 60° by 40° Coverage Pattern










Elevate Your Audio Experience with the PD764i-215 Precision Directivity™ Loudspeaker System

Introducing the PD764i-215 Precision Directivity™ loudspeaker system, a powerhouse of sonic excellence designed to redefine the boundaries of sound reinforcement. Engineered for unparalleled impact, this system delivers extraordinary sound projection even across extensive throw distances that often challenge the capabilities of single-driver designs. With a single module effortlessly achieving sound pressure levels exceeding 104 dB (continuous) at distances spanning 50 meters (approximately 165 feet), the PD764i-215 sets new standards in audio performance. It seamlessly adapts to both clustered setups with other PD family modules and solo deployments within distributed systems.

Key Features Unveiled:

  • Comprehensive Full-Range Brilliance: Immerse yourself in the richness of a complete frequency spectrum.

  • Dynamic 60° by 40° Coverage Pattern: Symmetrical front dimensions offer the flexibility of horizontal or vertical orientation within arrays, catering to diverse audio preferences.

  • Revolutionary IFS™ Interference Free Summation: Experience cutting-edge technology that eliminates destructive interference, unlocking an impressive 6 dB boost in output.

  • Dual 2432H Compression Drivers: Equipped with 3” diaphragms, these drivers exemplify precision and engineering finesse.

  • Dual CMCD-82H 8” Horn Loaded Cone Mid-Range Drivers: Elevate your auditory experience with 6 dB higher output compared to traditional designs.

  • Dual 15” Low-Frequency Differential Drive®, Dual Voice Coil – Dual Magnetic Gap Woofers: Enjoy a robust low-end foundation that reverberates with power and clarity.

  • Precise Sub-400 Hz Pattern Control: Immerse yourself in a world of seamless pattern integrity extended to frequencies below 400 Hz.

  • Coherent Co-Axial Mid/High-Frequency Module Configuration: Optimize mid-frequency arrayability while maintaining a compact, space-efficient design.

  • Streamlined Integrated Rigging System: Simplify array design and construction through an ingeniously integrated rigging system.


Experience the pinnacle of sonic innovation with the PD764i-215 Precision Directivity™ loudspeaker system. Where sophistication meets performance, and every note is a testament to audio excellence.







JBL PD764i-215-WRX Very High Output Full-Range Loudspeaker System

SKU: PD764i215WRX
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD764i-215-WRX Very High Output Full-Range Loudspeaker System Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Dual 15” Low-Frequency Differential Drive</li>\n <li>Dual 2432H Compression Drivers</li>\n <li>Dynamic 60° by 40° Coverage Pattern</li>\n</ul>

Technical Details

Specifications

General
Frequency Range (-10dB) 36.5 Hz to 19.5 kHz
Frequency Response (±3 dB) 41.5 Hz - 18.5 kHz
Coverage Pattern 60° x 40°
Directivity Index (DI) 16 dB
System Sensitivity (1w @ 1m) LF: 103 dB SPL; Passive Mid-High: 111 dB SPL
Maximum SPL (1m) LF - 141 dB Peak; MHF - 143 dB Peak
Transducer Power Rating (AES) LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak)
Crossover Bi-Amp with passive mid/high crossover (Tri-Amp optional)
Crossover Frequencies 220 Hz, 1.2 kHz
DSP Custom DSP for Crown ITHD and IT4x3500HD amplifiers
LF Driver 2 x JBL 2265H 380 mm (15 in) Diferential Drive driver with 75 mm (3 in) dual voice coil
MF Driver 2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil
HF Driver 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance LF: 4 ohms MF: 4 ohms HF: 16 ohms
Enclosure Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood
Enclosure WRC/WRX Version For direct exposure or extreme environments, berglassed with stainless steel hardware
Grille Black powder coated zinc treated 14 gauge perforated steel with black foam backing
Grille WRC/WRX Version Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh
Input Connector NL4 for bi-amp operation or NL8 for tri-amp operation (optional)
Input Connectors WRC/WRX Version 4 conductor 16 awg direct burial cable assy 20 length (or length TBD)
Environmental Available WRC/WRX Version: IP55
Suspension Attachment 52 total points (12 top and bottom, 11 each side, 6 back), M10 threaded hardwar
Dimensions (H x W x D) 991 mm x 991 mm x 889 mm (39.0 x 39.0 x 35 in)
Net Weight (each) 295 lbs (134 kg)
Crossover Modes Passive
System Power Rating LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak) (AES rated)
Nominal LF Driver Impedance 4 ohms
Nominal MF Driver Impedance 4 ohms
Nominal HF Driver Impedance 4 Ohms Passive Mid/High Crossover

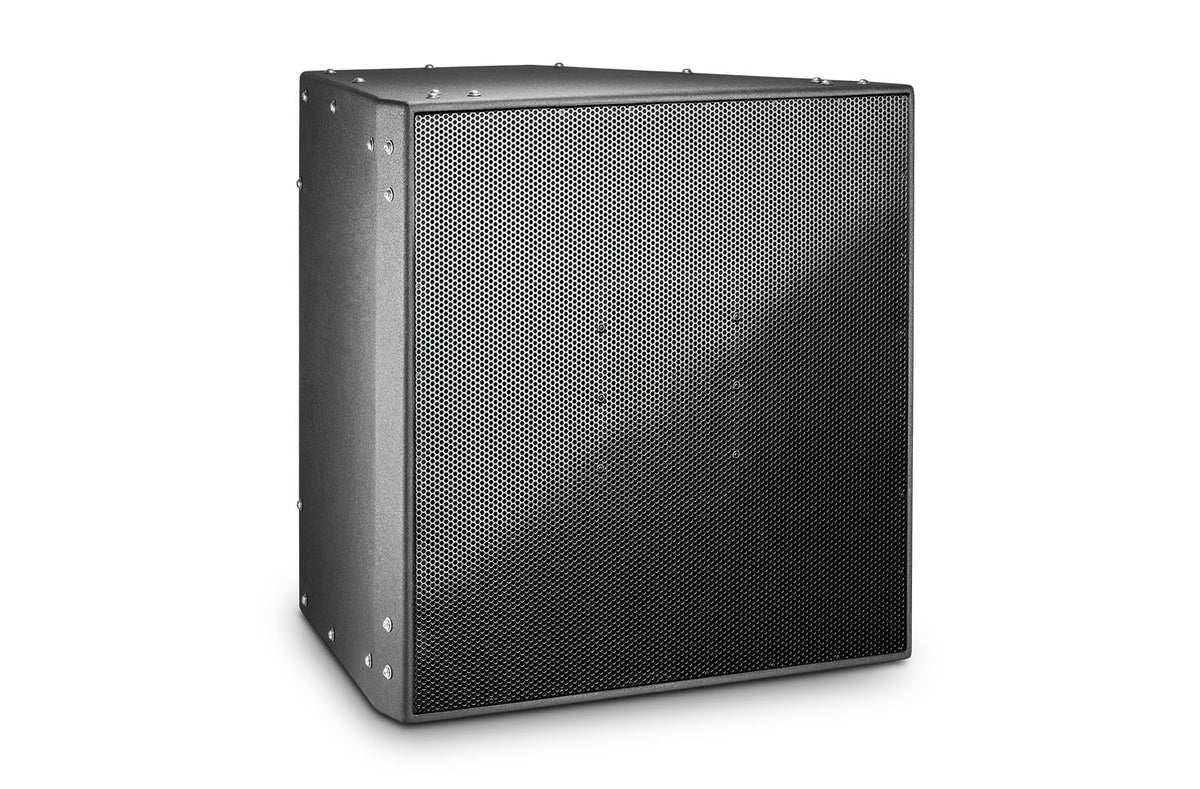

JBL PD764i-215-WRX Very High Output Full-Range Loudspeaker System f
