Product Summary


  • Dual 2432H Compression Drivers

  • Sub-400 Hz Pattern Control

  • Full-Spectrum Sonic Brilliance


Unleash the Power of Full-Range Audio with the PD764i-215 Precision Directivity™ Loudspeaker System

Prepare to be immersed in an audio experience like no other with the PD764i-215 Precision Directivity™ loudspeaker system. Designed to redefine the boundaries of sound reinforcement, this system delivers an impactful sonic performance even across vast throw distances that often challenge traditional single-driver configurations. With a single module effortlessly achieving over 104 dB SPL (continuous) at distances spanning 50 meters (approximately 165 feet), the PD764i-215 redefines audio potency. It seamlessly adapts to either clustering with fellow PD family modules or shining individually as a vital component of a meticulously dispersed setup.

Key Features at a Glance:

  • Full-Spectrum Sonic Brilliance: Experience sound in its entirety, spanning the entire frequency range.

  • Remarkable 60° by 40° Coverage Pattern: The symmetrical frontal dimensions empower you with the choice of horizontal or vertical orientation within an array, catering to your auditory needs.

  • Innovative IFS™ Interference Free Summation: Embrace technology that eradicates destructive interference, unleashing an extraordinary 6 dB surge in output.

  • Dual 2432H Compression Drivers: Equipped with 3” diaphragms, these drivers exemplify precision engineering.

  • Dual CMCD-82H 8” Horn Loaded Cone Mid-Range Drivers: Elevating output levels by an astonishing 6 dB compared to conventional designs.

  • Double Trouble: Dual 15” Low-Frequency Differential Drive®, Dual Voice Coil – Dual Magnetic Gap Woofers ensure a robust low-end foundation that resonates powerfully.

  • Sub-400 Hz Pattern Control: Experience seamless pattern integrity extended to frequencies below 400 Hz.

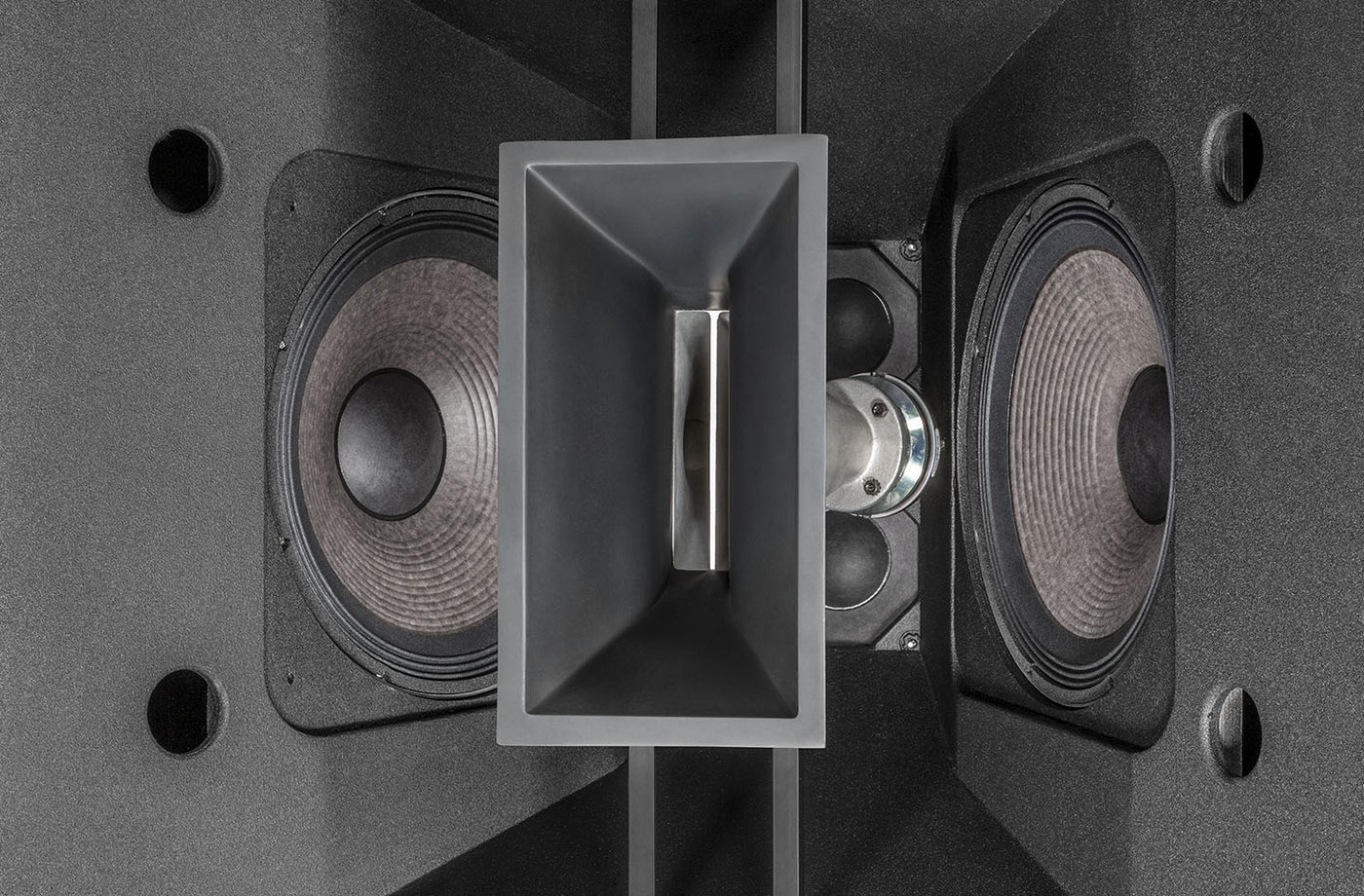

  • Co-Axial Mid/High-Frequency Module Configuration: The layout optimizes mid-frequency arrayability while ensuring a compact form factor.

  • Simplified Integration: Thanks to the integrated rigging system, array design and construction are streamlined for your convenience.


Discover the next dimension of sonic excellence with the PD764i-215 Precision Directivity™ loudspeaker system. Where innovation converges with audio perfection, and where every note resonates with unprecedented clarity and intensity.

JBL PD764i-215-WRC Very High Output Full-Range Loudspeaker System

SKU: PD764i215WRC
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD764i-215-WRC Very High Output Full-Range Loudspeaker System Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Dual 2432H Compression Drivers</li>\n <li>Sub-400 Hz Pattern Control</li>\n <li>Full-Spectrum Sonic Brilliance</li>\n</ul>

Technical Details

Specifications

General
Frequency Range (-10dB) 36.5 Hz to 19.5 kHz
Frequency Response (±3 dB) 41.5 Hz - 18.5 kHz
Coverage Pattern 60° x 40°
Directivity Index (DI) 16 dB
System Sensitivity (1w @ 1m) LF: 103 dB SPL; Passive Mid-High: 111 dB SPL
Maximum SPL (1m) LF - 141 dB Peak; MHF - 143 dB Peak
Transducer Power Rating (AES) LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak)
Crossover Bi-Amp with passive mid/high crossover (Tri-Amp optional)
Crossover Frequencies 220 Hz, 1.2 kHz
DSP Custom DSP for Crown ITHD and IT4x3500HD amplifiers
LF Driver 2 x JBL 2265H 380 mm (15 in) Diferential Drive driver with 75 mm (3 in) dual voice coil
MF Driver 2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil
HF Driver 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance LF: 4 ohms MF: 4 ohms HF: 16 ohms
Enclosure Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood
Enclosure WRC/WRX Version For direct exposure or extreme environments, berglassed with stainless steel hardware
Grille Black powder coated zinc treated 14 gauge perforated steel with black foam backing
Grille WRC/WRX Version Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh
Input Connector NL4 for bi-amp operation or NL8 for tri-amp operation (optional)
Input Connectors WRC/WRX Version 4 conductor 16 awg direct burial cable assy 20 length (or length TBD)
Environmental Available WRC/WRX Version: IP55
Suspension Attachment 52 total points (12 top and bottom, 11 each side, 6 back), M10 threaded hardwar
Dimensions (H x W x D) 991 mm x 991 mm x 889 mm (39.0 x 39.0 x 35 in)
Net Weight (each) 295 lbs (134 kg)
Crossover Modes Passive
System Power Rating LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak) (AES rated)
Nominal LF Driver Impedance 4 ohms
Nominal MF Driver Impedance 4 ohms
Nominal HF Driver Impedance 4 Ohms Passive Mid/High Crossover
