Product Summary


  • Unparalleled Mid-Frequency Power

  • Unrivaled Sound Impact

  • Effortless Integration










Introducing the PD743 Precision Directivity™ Loudspeaker System – a powerhouse designed to redefine your audio experience. With exceptional sound reinforcement capabilities that extend far beyond the limits of conventional single-driver setups, the PD743 delivers a truly immersive sonic encounter.

Key Features:

Unrivaled Sound Impact: The PD743 is engineered to create a high-impact sound reinforcement experience, reaching distances that were once thought unattainable by traditional single-driver designs.

Versatile Coverage: Boasting a symmetrical 40° by 30° coverage pattern, the PD743 offers the flexibility of both horizontal and vertical orientation within an array. This adaptability ensures your sound system fits seamlessly into any configuration.

Cutting-edge IFS™ Technology: Our revolutionary Interference Free Summation (IFS™) dual HF driver module takes audio optimization to the next level. By eliminating destructive interference and amplifying output by an impressive 6 dB, it guarantees a flawless auditory journey.

Unparalleled Mid-Frequency Power: Equipped with dual 8-inch horn-loaded cone mid frequency drivers, the PD743 achieves an astonishing 6 dB greater output compared to conventional designs. This formidable power remains consistent even below 400 Hz, delivering clear and impactful audio across all frequencies.

Innovative Co-Axial Design: The co-axial mid/high-frequency module layout not only enhances mid-frequency arrayability but also minimizes the system's overall size. This ingenious design contributes to a harmonious and immersive sound experience.

Effortless Integration: Featuring an integrated rigging system, the PD743 simplifies array design and construction, ensuring a hassle-free setup process that doesn't compromise on precision.

Discover a new echelon of sound reinforcement with the PD743 Precision Directivity™ Loudspeaker System. Its state-of-the-art features redefine the capabilities of mid-high loudspeaker technology, delivering a sonic encounter that's characterized by its sheer impact and adaptability.







JBL PD743-WH 8" Mid/High Frequency Coaxial Speaker (White)

SKU: PD743WH
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$19,705.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
JBL PD743-WH 8" Mid/High Frequency Coaxial Speaker (White) $19,705.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Unparalleled Mid-Frequency Power</li>\n <li>Unrivaled Sound Impact</li>\n <li>Effortless Integration</li>\n</ul>

Technical Details

Specifications

General
Frequency Range 150 Hz - 17 kHz (-10 dB)
Frequency Response 200 Hz – 15 kHz (+/- 3 dB)
Coverage Angle 40° x 30°
Directivity Index (DI) 15 dB
Recommended Crossover Frequencies 225 Hz, 1.5 kHz
Nominal Impedance MF: 8 Ohms HF: 16 Ohms
Input Power Rating MF: 700 W AES (2800 W peak) HF: 150 W AES (600 W peak)
Sensitivity MF: 111 dB, 1 W @ 1 m (3.3 ft) HF: 118 dB, 1 W @ 1 m (3.3 ft)
Calculated Maximum SPL MF: 139 dB Continuous; 145 dB Peak HF: 140 dB Continuous; 146 dB Peak SPL @ 1 m (3.3 ft)
Mid Frequency 2 x 2250J - 203 mm (8 in) cone, Dual 75 mm (3 in) edgewound ribbon voicecoil, NDD™ motor structure
High Frequency 2 x 2430H - 75 mm (3 in) diaphragm, 38 mm (1.5 in) aperture, neodymium magnet
Enclosure Dual Trapezoidal, 25° vertical, 35° horizontal; birch plywood
Suspension Attachment M10 threaded points, 24 total; 40° by 30° Coverage Pattern–symmetrical frontal dimensions
Finish lack DuraFlex™ coating (white & custom colors optional)
Grille Black powder coated zinc treated 14 gauge perforated steel with black foam backing (white & custom colors)
Input Connector Neutrik NL4 Speakon (Options:barrier strip or captive cable)
Dimensions (H x W x D) 991 x 991 x 1102.36 mm (39 x 39 x 43.4 in)
Net Weight 245 lb, 111.4 kg

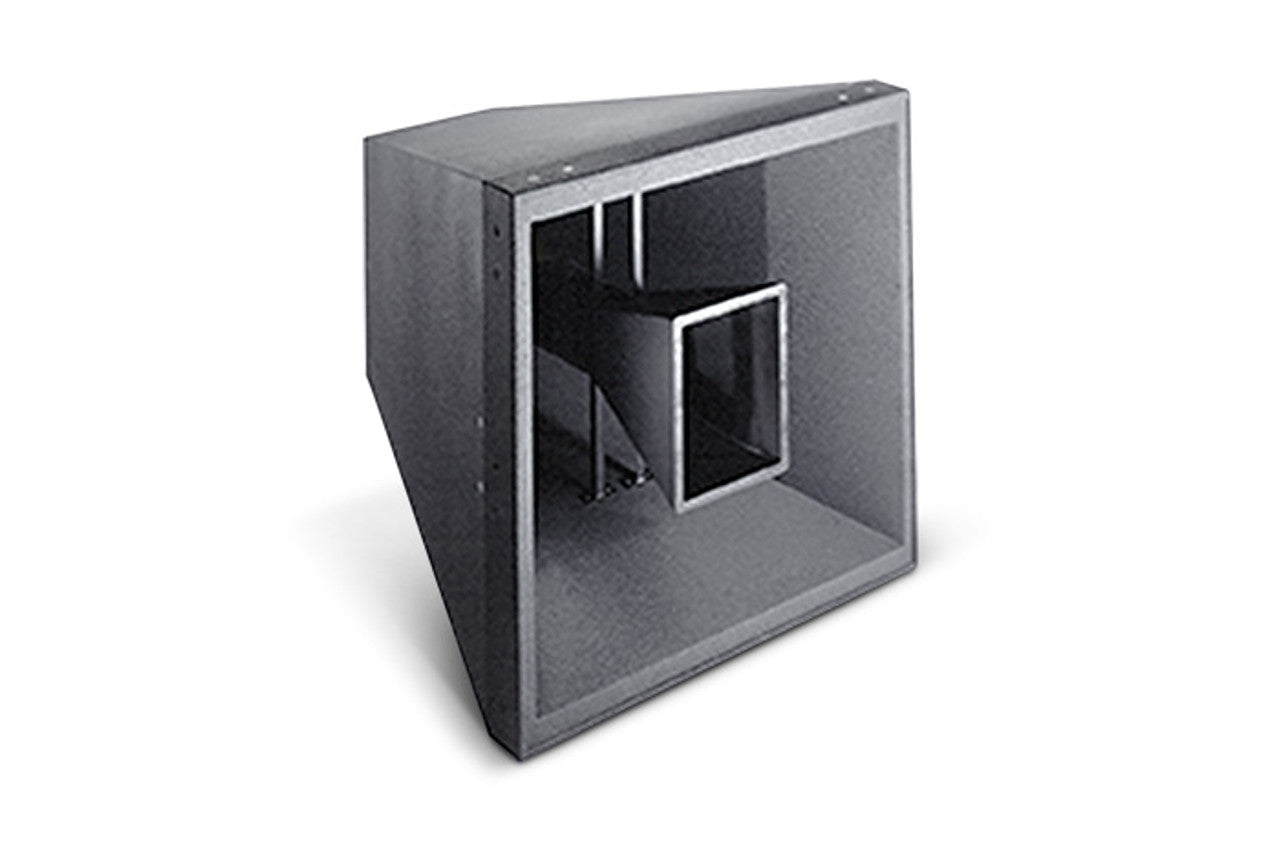

JBL PD743-WH High Output Coax 40 X 30 (Weather Protection Treatment)
