Product Summary


  • 380mm horn-loaded low-frequency driver

  • Large PT Progressive Transition waveguides

  • Rotatable waveguide














Introducing the PD595 Precision Directivity Loudspeaker – a powerhouse designed to elevate your audio experience with its exceptional pattern control and high-output capabilities. Whether you're immersed in music or captivated by speech, the PD595 is tailored for applications demanding precision.

At its core, the PD595 boasts the cutting-edge 2031H 380mm low-frequency transducer. With an emphasis on high sensitivity and minimal power compression, this driver ensures a continuous and powerful sound at impressive SPL levels. The horn-loaded design goes the extra mile, enhancing sensitivity and refining pattern control for an immersive sonic adventure.

The PD595's prowess extends to its high frequencies, driven by the remarkable 2432H 38mm exit compression driver. This component boasts a neodymium magnet and an aluminum diaphragm, culminating in crystal-clear high-frequency projection. Even at elevated drive levels, distortion remains minimal, while the extended frequency response ensures every nuance is heard.

Adapting to your needs, the PD595 features a sizable rotatable PT waveguide. This ingenious design enables both vertical and horizontal orientations, making it remarkably versatile in various setups. Be it a standalone configuration or a comprehensive full-range system with subwoofers, the PD595 rises to the occasion.

Flexibility meets functionality with the option for biamplified operation or full passive mode, allowing you to customize your audio setup to your preference. The CE-compliant covered barrier strips facilitate seamless input connectivity, ensuring a hassle-free experience.

Engineered for seamless integration, the PD595 is equipped with twenty-two M10 threaded suspension points, offering multiple installation possibilities to suit any environment.

Incorporating a meticulously crafted passive crossover network with switchable bi-amp/passive crossover modes, the PD595 ensures not just sound, but an auditory journey.

Key Features:

  • 380mm horn-loaded low-frequency driver for commanding bass

  • Large PT Progressive Transition waveguides for impeccable pattern control and smooth frequency response

  • Rotatable waveguide accommodates vertical or horizontal orientations

  • Thoughtfully designed passive crossover network with bi-amp/passive modes

  • Exceptional build quality with M10 threaded suspension points for versatile installations

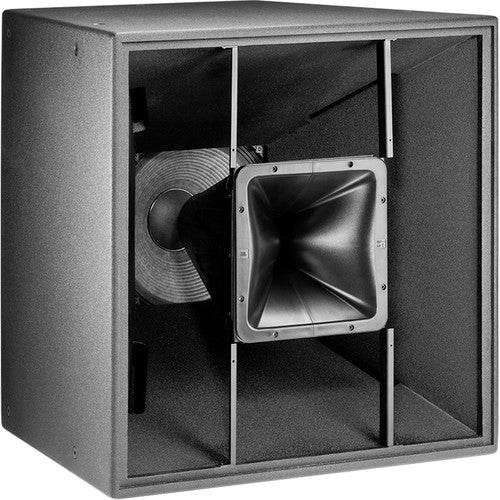

JBL PD595-WRX 15" Horn-Loaded Full-Range Loudspeaker System with WRC Weather Protection (90° x 50°, Black)

SKU: PD595WRX | UPC: 691991014895
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD595-WRX 15" Horn-Loaded Full-Range Loudspeaker System with WRC Weather Protection (90° x 50°, Black) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>380mm horn-loaded low-frequency driver</li>\n <li>Large PT Progressive Transition waveguides</li>\n <li>Rotatable waveguide</li>\n</ul>

Technical Details

Specifications

General
Product Type
Speaker - for stage
Enclosure Color
Black
Enclosure Material
Birch plywood
Design Features
DuraFlex finish, trapezoidal design
Speaker System
Speaker Type
2-way - passive
Nominal Output Power
300 Watt
Max (RMS) Output Power
500 Watt
Frequency Response
50 - 20000 Hz
-3dB Frequency Response
90 - 16000 Hz
Nominal Impedance
8 Ohm
Max Output Level (Max SPL)
139 dB
Sensitivity
104 dB
Crossover Frequency
1300Hz
Coverage
90° x 50°
Detachable Grilles
Yes
Speaker System Details
Speakers Included
1 x speaker - 2-way - 300 Watt - 50 - 20000 Hz - 8 Ohm - wired
Driver Details
Speaker: woofer driver - 15" - Horn Speaker: tweeter driver - 1.5" - Horn Loaded Compression Driver (HLCD)
Miscellaneous
Compliant Standards
MIL-STD-810, IPX3

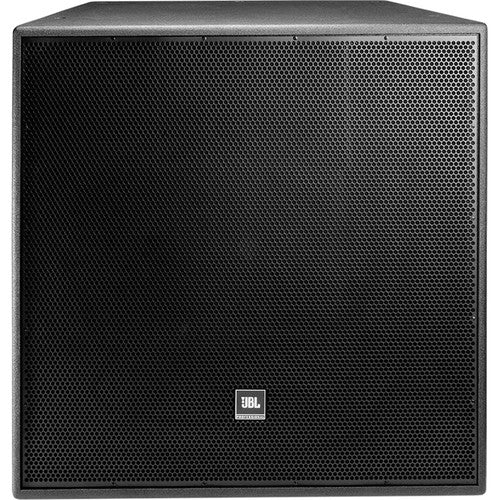

JBL PD595-WRC 15 f Horn-Loaded Full-Range Loudspeaker System with WRC Weather Protection (90° x 50°, Black)
