Product Summary


  • Sophisticated steep-slope passive crossover

  • Adapts to your surroundings effortlessly

  • Large PT Progressive Transition waveguides













Introducing PD566: Precision Redefined

Discover the future of audio precision with the PD566, a Precision Directivity loudspeaker meticulously engineered to cater to applications that demand exceptional output capability and meticulous pattern control. Whether it's the symphony of music or the clarity of speeches, the PD566 sets a new standard for auditory excellence. Elevate your experience by combining it with subwoofers for extended bandwidth fullrange systems.

Key Features:

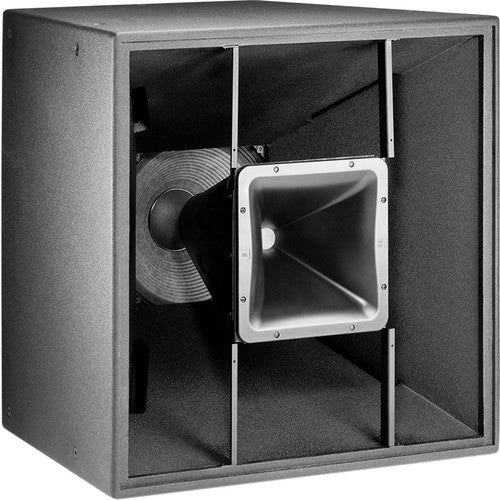

Unleash Sonic Power The PD566 showcases a horn-loaded low-frequency driver, ensuring each note resonates with precision and power. Witness sound in its truest form as the PD566 takes you on an auditory journey like never before.

Masterful Pattern Control Empowered by Large PT Progressive Transition waveguides, the PD566 offers an expansive pattern control that remains distortion-free, even at high SPL levels. Its seamless frequency response captures every nuance, creating an audio encounter that captivates the senses.

Adapt to Your Space With a rotatable waveguide, the PD566 adapts to your surroundings effortlessly. Choose between horizontal or vertical cabinet orientations to create a harmonious blend of sound and space.

Craft Your Sonic Landscape Behind the scenes, a sophisticated steep-slope passive crossover network with switchable bi-amp/passive crossover modes empowers you to craft a sonic landscape that resonates with your unique vision. Immerse yourself in an audio experience that's both refined and immersive.

Elevate Your Sound Horizon PD566 isn't just a loudspeaker; it's a testament to precision. Whether you're delving into the depth of music or seeking the clarity of speeches, PD566 delivers an unrivaled experience. Embrace the future of sound with PD566 - where sound isn't just an auditory sensation; it's an emotion.

Rediscover Your Auditory Universe Embark on a journey of sound transformation with PD566. Elevate your auditory encounters to unmatched heights and experience the fusion of precision and innovation. With PD566, the boundaries of excellence are yours to redefine.

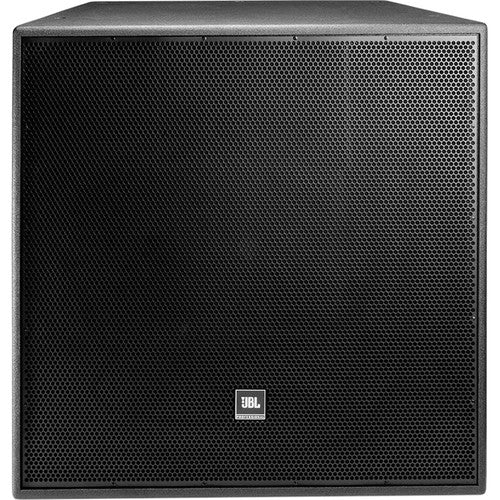

JBL PD566-WRC 15" Horn-Loaded Full-Range Loudspeaker System with WRC Weather Protection (60° x 60°, Black)

SKU: PD566WRC
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD566-WRC 15" Horn-Loaded Full-Range Loudspeaker System with WRC Weather Protection (60° x 60°, Black) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Sophisticated steep-slope passive crossover</li>\n <li>Adapts to your surroundings effortlessly</li>\n <li>Large PT Progressive Transition waveguides</li>\n</ul>

Technical Details

Specifications

General
Product Type
Speaker - for PA system
Enclosure Color
Black
Enclosure Material
Fiberglass, birch plywood
Design Features
DuraFlex finish, trapezoidal design
Speaker System
Speaker Type
Passive
Nominal Output Power
300 Watt
Max (RMS) Output Power
500 Watt
Frequency Response
50 - 20000 Hz
Nominal Impedance
8 Ohm
Max Output Level (Max SPL)
131 dB
Sensitivity
104 dB
Crossover Frequency
1300Hz
Coverage
60° x 60°
Recommended Placing
Outdoor
Speaker System Details
Driver Details
Speaker: woofer driver - 15" - Horn Speaker: tweeter driver - 1.5" - compression driver
Miscellaneous
Included Accessories
Speaker grille
Compliant Standards
MIL-STD-810, IEC 529/IP56
