JBL Control 16C-VA Two-Way 6.5" Co-axial Ceiling Loudspeaker

SKU: CONTROL16CVA
Call For Price
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n EN54-24 Certified for Safety\n High-Quality 165mm Cone Driver\n Effortless Blind-Mount Installation\n Versatile Power Options: 70V/100V, 8Ω\n Wide 110° Coverage, Impressive Sensitivity\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • EN54-24 Certified for Safety

  • High-Quality 165mm Cone Driver

  • Effortless Blind-Mount Installation

  • Versatile Power Options: 70V/100V, 8Ω

  • Wide 110° Coverage, Impressive Sensitivity


Elevate Acoustics with EN54-24 Certified Co-axial Ceiling Loudspeaker

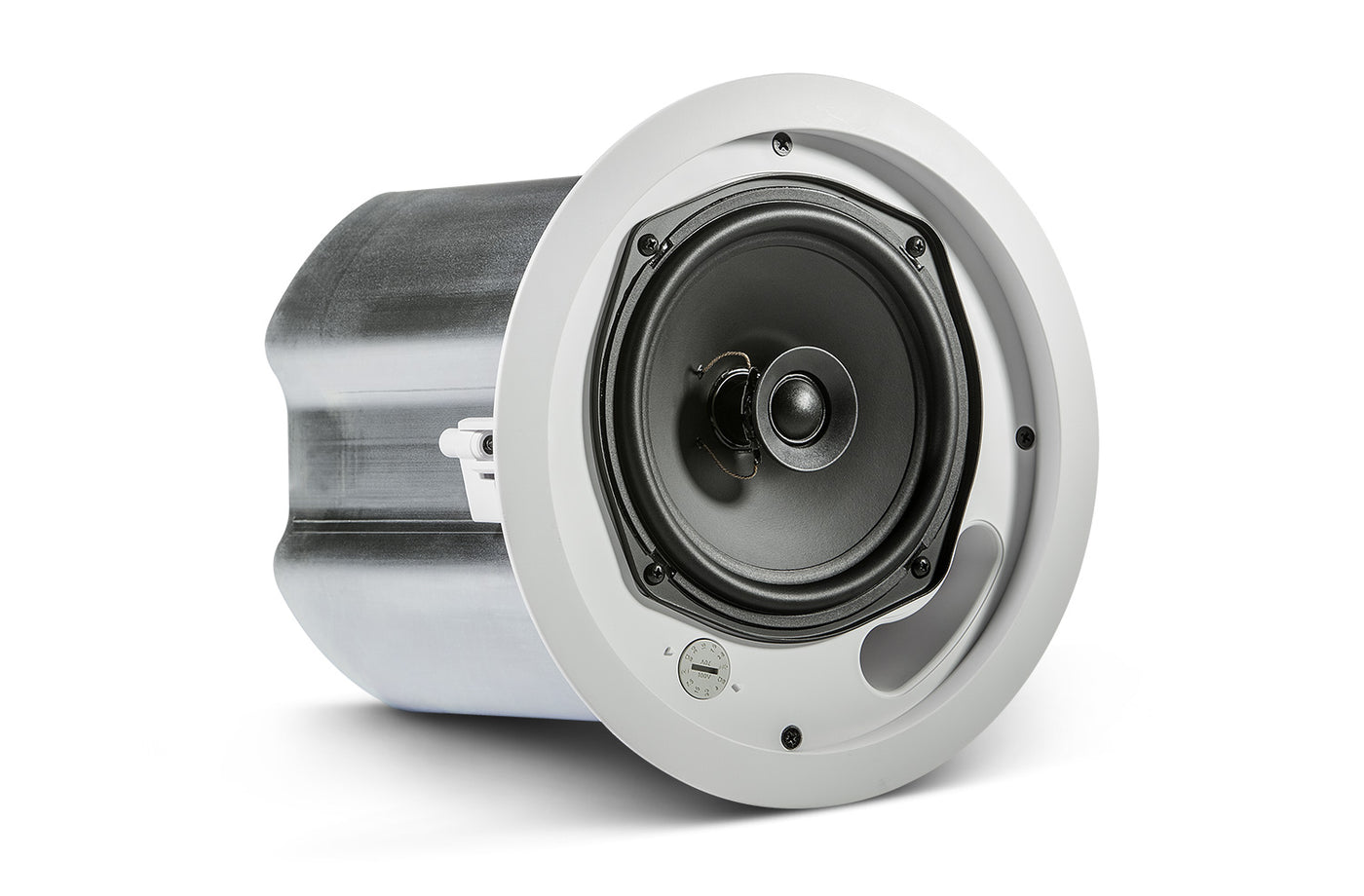

Introducing the Control 16C-VA, a versatile two-way ceiling loudspeaker designed for EN54-24 applications. Immerse your surroundings in premium sound quality through its high-tech 165 mm cone driver and 19 mm liquid-cooled tweeter, seamlessly integrated into a paintable, UV-resistant baffle. The blind-mount backcan ensures swift and effortless installation. This certified loudspeaker excels in various settings including music cafes, retail stores, lounges, and more, delivering consistent sound quality both on and off-axis. Complying with EN 54-24 standards, the Control 16C-VA is your assurance of safety.

Key Features:

  • Cutting-Edge Components:

    • 165 mm high-output driver with polypropylene cone and butyl rubber surround

    • 19 mm soft-dome liquid-cooled tweeter



  • EN 54-24 Compliant:

    • Designed for life safety applications



  • Effortless Installation:

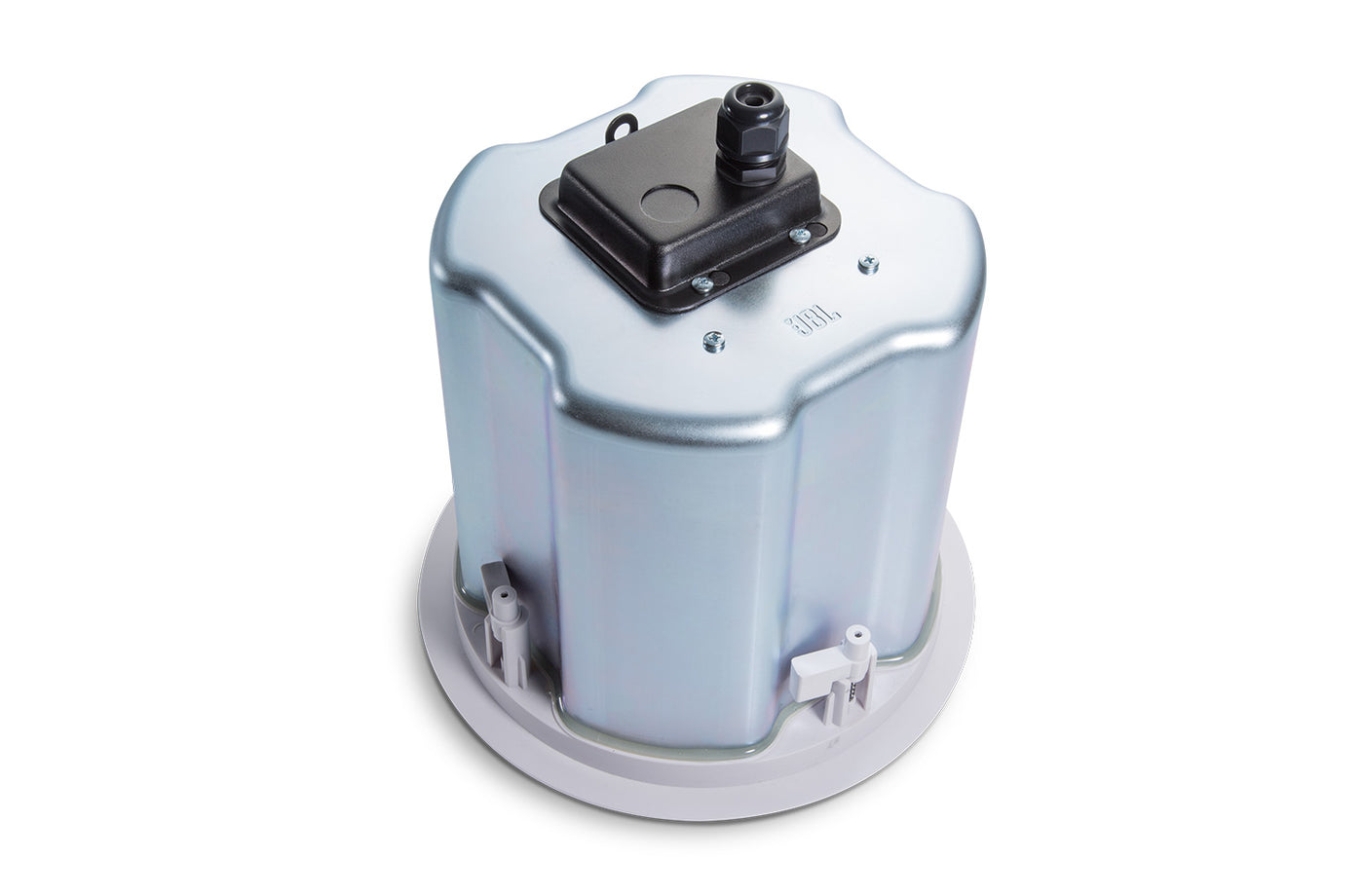

    • Blind-mount backcan for quick setup



  • Versatile Operation:

    • Combined 70V/100V and low impedance direct settings

    • 50W at 8Ω nominal, 30W multi-tap at 70V/100V



  • Immersive Sound:

    • 62 Hz – 20 kHz bandwidth with wide 110° coverage

    • High 91 dB sensitivity for impressive SPL




Elevate your audio experience with the Control 16C-VA, setting new standards in acoustic excellence and safety.

Is This Right For You?


Recommendation


JBL Control 16C-VA Two-Way 6.5 inch Co-axial Ceiling Loudspeaker
JBL

JBL Control 16C-VA Two-Way 6.5" Co-axial Ceiling Loudspeaker

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<table class="specs">
<tbody>
<tr>
<td class="name">Frequency Range (-10dB)</td>
<td>62 Hz – 20 kHz</td>
</tr>
<tr>
<td class="name">Frequency Response (±3 dB)</td>
<td>96 Hz – 15 kHz</td>
</tr>
<tr>
<td class="name">Power Rating</td>
<td>IEC System Long-Term Ratings (low-Z direct):
100 Watts Continuous Program Power
50 Watts Continuous Pink Noise (200W peak), 100 hrs</td>
</tr>
<tr>
<td class="name">Rated Noise Power</td>
<td>30W (30W tap)</td>
</tr>
<tr>
<td class="name">Rated Noise Voltage</td>
<td>70V/100V (with 70V/100V tap settings)</td>
</tr>
<tr>
<td class="name">Sensitivity</td>
<td>91 dB (1kHz - 16 kHz)</td>
</tr>
<tr>
<td class="name">EN54 Sensitivity (@ 4m)</td>
<td>77 dB (per EN54-24 spectrum and measurement conditions at 4 meters).</td>
</tr>
<tr>
<td class="name">Coverage Angle</td>
<td>110° conical</td>
</tr>
<tr>
<td class="name">Coverage Angles(by Frequency) Conical (Vertical &amp; Horizontal)</td>
<td>500 Hz: 180°1000 Hz: 160°2000 Hz: 155°4000 Hz: 92°</td>
</tr>
<tr>
<td class="name">Reference Axis</td>
<td>Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane</td>
</tr>
<tr>
<td class="name">Directivity Factor (Q)</td>
<td>7.8</td>
</tr>
<tr>
<td class="name">Directivity Index (DI)</td>
<td>8.2 dB</td>
</tr>
<tr>
<td class="name">Maximum SPL (1m)</td>
<td>108 dB (low-impedance, 116 dB peak)
106 dB (top 70V/100 tap)
EN54: 91 dB (4m, top 70/100V tap)</td>
</tr>
<tr>
<td class="name">EN54 Max SPL (@ 4m)</td>
<td>91 dB (per EN54-24 spectrum and measurement conditions, 30W tap, at 4 meters)</td>
</tr>
<tr>
<td class="name">Impedance</td>
<td>8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz) 3.8W@70V; 7.5W@100V Tap: 1333Ω 7.5W@70V; 15W@100V Tap: 667Ω 15W@70V; 30W@100V Tap: 333Ω 30W@70V; N/C@100V Tap: 166Ω</td>
</tr>
<tr>
<td class="name">Transformer Taps</td>
<td>30W, 15W, 7.5W @ 70V or 100V (plus 3.8W @ 70V only)</td>
</tr>
<tr>
<td class="name">Crossover Network</td>
<td>12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver</td>
</tr>
<tr>
<td class="name">Fuse</td>
<td>Thermal Fuse, open temperature 152 degrees C, Rating &gt;= 10A @ 250VAC</td>
</tr>
<tr>
<td class="name">Drivers</td>
<td>LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (3/4 in)</td>
</tr>
<tr>
<td class="name">Connections</td>
<td>Input +, Input -, Earth (connected to backcan). Ceramic with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire.</td>
</tr>
<tr>
<td class="name">Gland Nut/Strain Relief</td>
<td>Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in)</td>
</tr>
<tr>
<td class="name">Materials</td>
<td>ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan</td>
</tr>
<tr>
<td class="name">Safety Agency</td>
<td>EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 &amp; NFPA70; Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems</td>
</tr>
<tr>
<td class="name">Dimensions</td>
<td>253 mm diameter x 262 mm from back of baffle to back of gland nut (10.0 in diameter x 10.3 in in depth)</td>
</tr>
<tr>
<td class="name">Ceiling Cutout Size</td>
<td>Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)</td>
</tr>
<tr>
<td class="name">Ceiling Thickness Range</td>
<td>Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses</td>
</tr>
<tr>
<td class="name">Safety Seismic Attachment</td>
<td>One point, top surface</td>
</tr>
<tr>
<td class="name">Net Weight</td>
<td>3.4 kg (7.4 lbs, one speaker)</td>
</tr>
<tr>
<td class="name">Shipping Weight</td>
<td>11.2 kg (24.7 lbs, pair in master carton)</td>
</tr>
<tr>
<td class="name">Included Accessories</td>
<td>C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille</td>
</tr>
<tr>
<td class="name">Optional Accessories</td>
<td>MTC-16WG high humidity grille MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dogears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans</td>
</tr>
<tr>
<td class="name">Input Connectors</td>
<td>Ceramic block with brass inserts</td>
</tr>
<tr>
<td class="name">Color</td>
<td>White</td>
</tr>
<tr>
<td class="name">Backcan</td>
<td>formed steel (included "blind-mount")</td>
</tr>
<tr>
<td class="name">Plenum Usage</td>
<td>Yes, backcan included</td>
</tr>
</tbody>
</table>
