Key Features
- <ul>\n <li>Operating Temperature Range –40° F to +212° F (–40° C to +100° C)</li>\n <li>Storage Temperature Range –58° F to +221° F (–50° C to +105° C)</li>\n <li>Length 1.96" (49.78mm)</li>\n <li>Width 0.956" (24.28mm)</li>\n</ul>
Product Summary
- Operating Temperature Range –40° F to +212° F (–40° C to +100° C)
- Storage Temperature Range –58° F to +221° F (–50° C to +105° C)
- Length 1.96" (49.78mm)
- Width 0.956" (24.28mm)

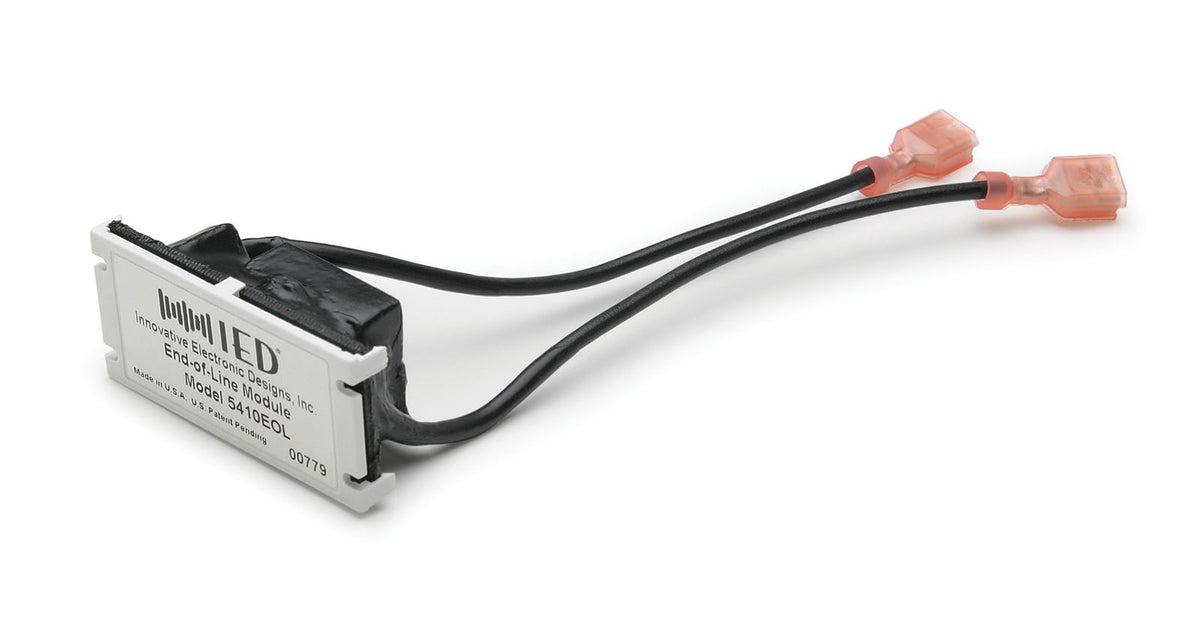

The Model 5410EOL / 5411EOL End-of-Line Module is a device which augments automatic testing of 100 Volt constant voltage speaker lines. The 5410EOL / 5411EOL allows testing continuity of speaker wiring all the way to the end of the line without the need and expense of a return wire from the line end. When used with the automated test function of the 5404DZM, the 5432DZM, the DNA2404x, or the T112 or T112C amplifiers, the 5410EOL / 5411EOL enables testing the integrity of the speaker lines. While the 5410EOL / 5411EOL represents a significant load to the amplifier and speaker lines at 20 kHz, it has no significant effect on the audible frequency performance of the system.
For proper / complete speaker line testing, speakers on a circuit must be wired as one continuous string without any paralleled off branches. The figure below shows the right and wrong ways to interconnect speakers for proper testing. Only one 5410EOL / 5411EOL can be applied to the end of the speaker line of any one DZM speaker output. It is not permissible to place additional units in branch circuits of the same speaker output.
This model (5411EOL) is for use with amplifiers producing 200W (continuous) or greater, or for use with the outpout of the DNA2404X or T112 / T112C amplifiers.
Atlas Sound EN54-16 End-of-Line Speaker Load Modules for Supervision (for amplifiers >= 200W) IED5411EOL
Authorized Dealer
Authorized
Atlas Sound
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$152.99
BACK 2 SCHOOL SALE | additional discount in cart
Atlas Sound EN54-16 End-of-Line Speaker Load Modules for Supervision (for amplifiers >= 200W) IED5411EOL
$152.99
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
- Operating Temperature Range –40° F to +212° F (–40° C to +100° C)
- Storage Temperature Range –58° F to +221° F (–50° C to +105° C)
- Length 1.96" (49.78mm)
- Width 0.956" (24.28mm)
The Model 5410EOL / 5411EOL End-of-Line Module is a device which augments automatic testing of 100 Volt constant voltage speaker lines. The 5410EOL / 5411EOL allows testing continuity of speaker wiring all the way to the end of the line without the need and expense of a return wire from the line end. When used with the automated test function of the 5404DZM, the 5432DZM, the DNA2404x, or the T112 or T112C amplifiers, the 5410EOL / 5411EOL enables testing the integrity of the speaker lines. While the 5410EOL / 5411EOL represents a significant load to the amplifier and speaker lines at 20 kHz, it has no significant effect on the audible frequency performance of the system.
For proper / complete speaker line testing, speakers on a circuit must be wired as one continuous string without any paralleled off branches. The figure below shows the right and wrong ways to interconnect speakers for proper testing. Only one 5410EOL / 5411EOL can be applied to the end of the speaker line of any one DZM speaker output. It is not permissible to place additional units in branch circuits of the same speaker output.
This model (5411EOL) is for use with amplifiers producing 200W (continuous) or greater, or for use with the outpout of the DNA2404X or T112 / T112C amplifiers.
Technical Details
Specifications
General
SPECIFICATIONS
| Operating Temperature Range | –40° F to +212° F (–40° C to +100° C) |
| Storage Temperature Range | –58° F to +221° F (–50° C to +105° C) |
| Length | 1.96" (49.78mm) |
| Width | 0.956" (24.28mm) |
