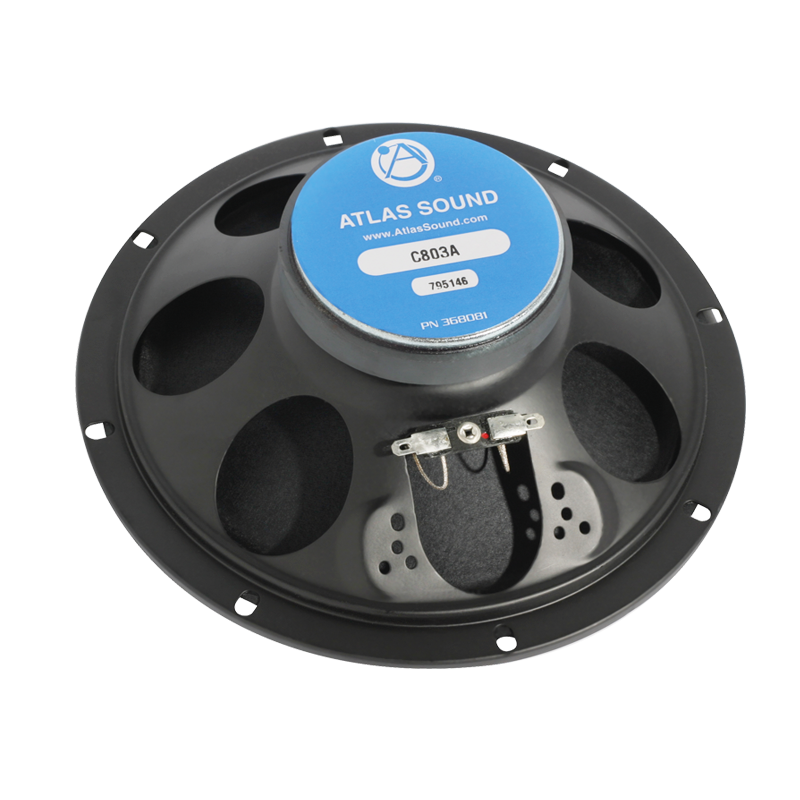

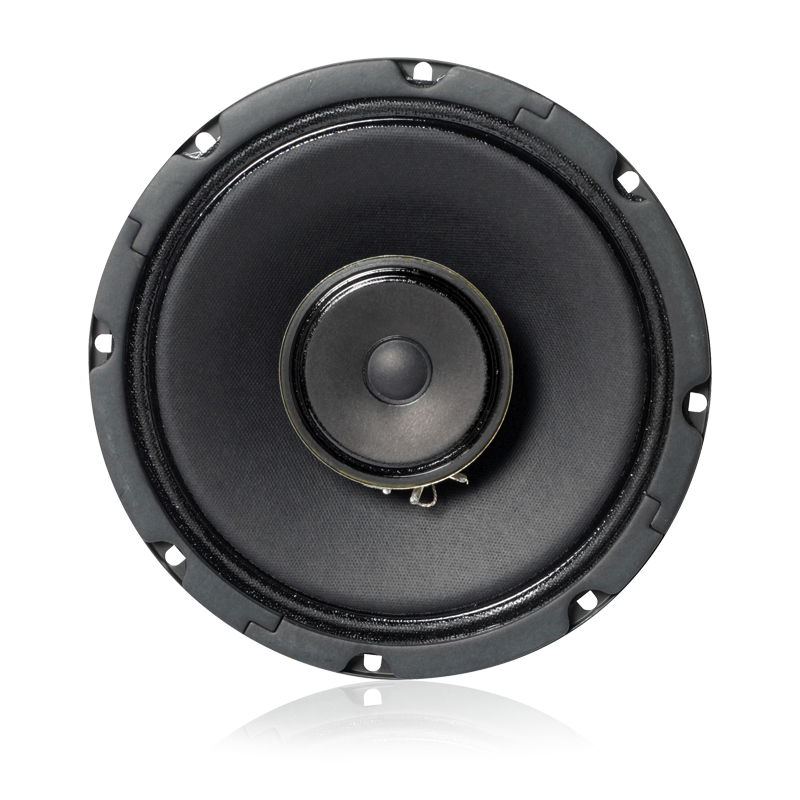

Atlas Sound 8" In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer C803AT167

SKU: C803AT167  |  UPC: 612079179787
$114.99
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use\n Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker\n Offers Proven Performance with Wide Frequency Response\n Post-Mounted Tweeter Adds Strength and a More Attractive Appearance\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use

  • Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker

  • Offers Proven Performance with Wide Frequency Response

  • Post-Mounted Tweeter Adds Strength and a More Attractive Appearance


Model C803AT167, A high-quality 16-watt loud speaker with a factory-installed 70.7V 16W line-matching transformer. Model C803AT167 utilizes a post-mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 40Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems. The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter). Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.

Is This Right For You?


Recommendation


8 In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer
Atlas Sound

Atlas Sound 8" In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer C803AT167

$114.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>Speaker Type</td>
<td>Treated Paper</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>98dB (peak), 95dB (avg)</td>
</tr>
<tr>
<td>Frequency Response</td>
<td>40Hz - 15kHz</td>
</tr>
<tr>
<td>Power Taps</td>
<td>4, 8, &amp; 16 Watts</td>
</tr>
<tr>
<td>Dispersion</td>
<td>120°</td>
</tr>
<tr>
<td>Depth</td>
<td>5 1/8" (13.0302 cm)</td>
</tr>
<tr>
<td>Diameter</td>
<td>8" (20.32 cm)</td>
</tr>
<tr>
<td>Shipping Weight</td>
<td>4.75 lbs (2.15 kgs)</td>
</tr>
<tr>
<td>Safety Listed</td>
<td>1480</td>
</tr>
</tbody>
</table>
</div>
