Product Summary


  • Acoustically Proven, General Purpose 25-Watt Loudspeaker

  • Ideal for Multi-Purpose Commercial, Industrial and Institutional Use

  • Includes LT-25 Factory-Installed Line-Matching Transformer

  • Mounts a Wide Selection of Atlas Sound Baffles

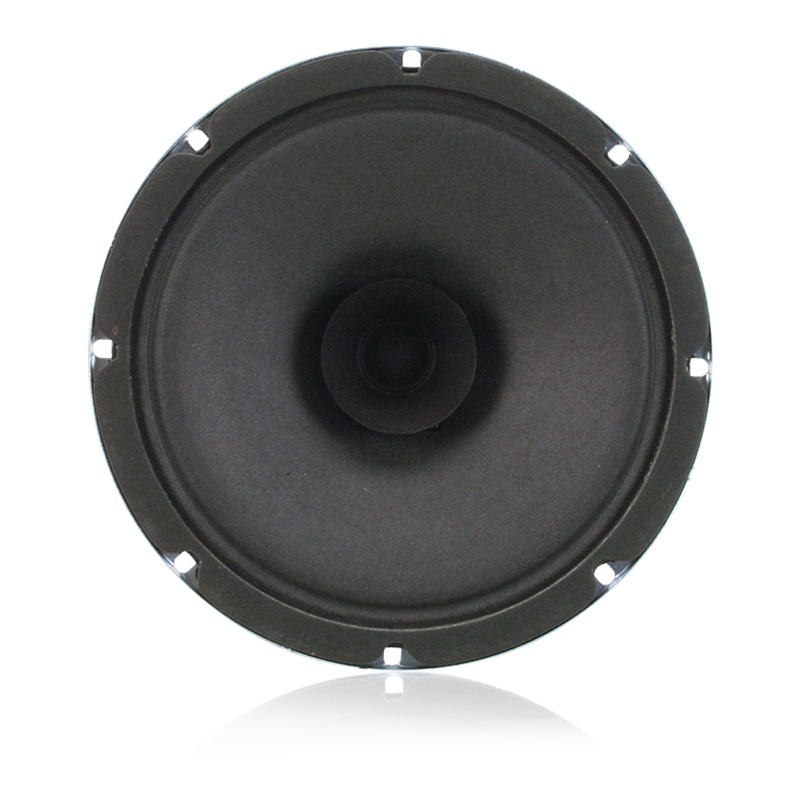

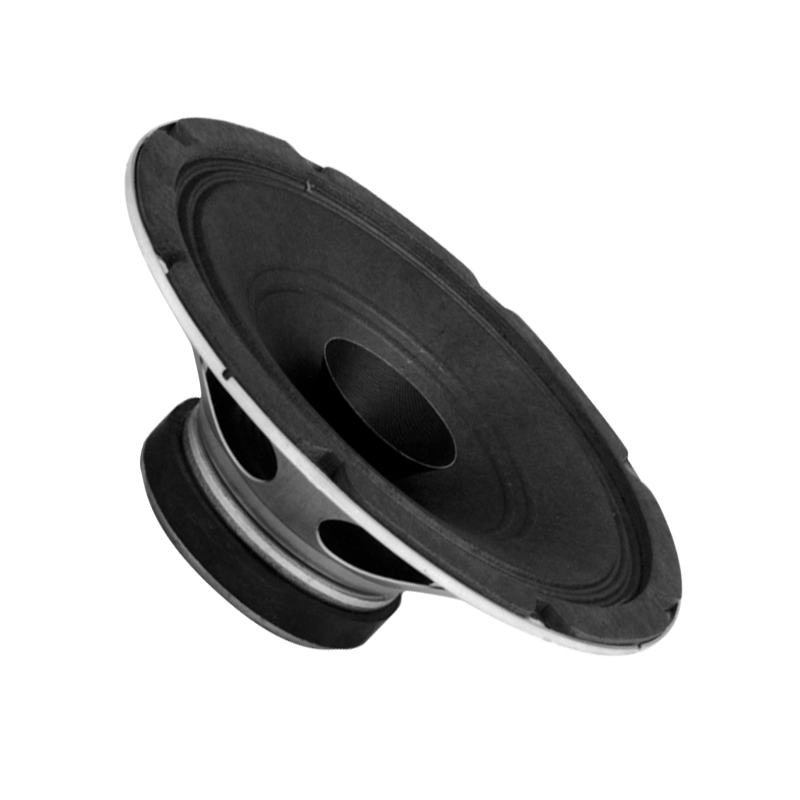

Model C10AT25 is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 25V 5W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.

Atlas Sound 8" Dual Cone In-Ceiling Speaker with 5-Watt 25V Transformer and 10oz Magnet C10AT25

SKU: C10AT25 | UPC: 612079129607
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$51.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 8" Dual Cone In-Ceiling Speaker with 5-Watt 25V Transformer and 10oz Magnet C10AT25 $51.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Acoustically Proven, General Purpose 25-Watt Loudspeaker</li>\n <li>Ideal for Multi-Purpose Commercial, Industrial and Institutional Use</li>\n <li>Includes LT-25 Factory-Installed Line-Matching Transformer</li>\n <li>Mounts a Wide Selection of Atlas Sound Baffles</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type Treated Paper
Sensitivity 97dB Peak, 94dB Average
Frequency Response 100Hz - 10kHz
Dispersion 105°
Power Taps .5, 1, 2, & 5 Watts
Depth 2 7/8" (7.3025 cm)
Diameter 8" (20.32 cm)
Shipping Weight 3.00 lbs (1.36 kgs)
