Product Summary


  • 100-Watt Unit Offers Extended Sound Pressure Levels for High/Vaulted Ceiling Applications

  • Conveniently Front Loads into Acoustically-Matched System Enclosures or Mounting Ring

  • Top-of-the-Line 8" Coaxial Loudspeaker Delivers Full-Frequency Response with Superior Fidelity


Model FA138 is AtlasIED's premium 8" coaxial speaker. This 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21oz. magnet and a 1/2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance. For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the speaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Speakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure. Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures. For limited depth installations when no enclosure is required mounting ring model FAPR-8 may be utilized. New construction ring model FA-TR8 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.

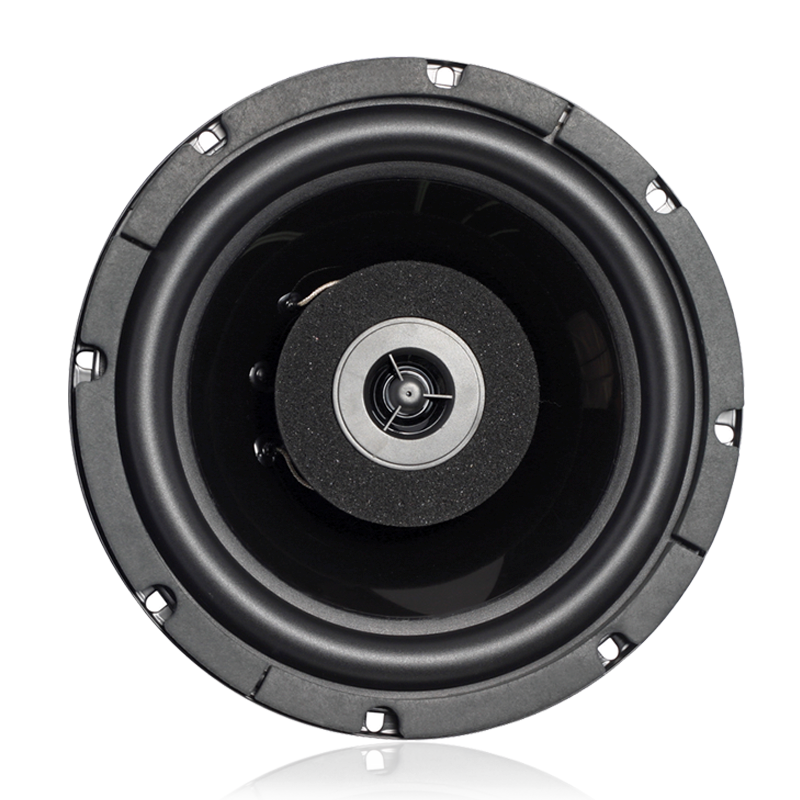

Atlas Sound 8" Coaxial 100-Watt 8 Ohm In-Ceiling Speaker FA138

SKU: FA138 | UPC: 612079129744
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$86.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 8" Coaxial 100-Watt 8 Ohm In-Ceiling Speaker FA138 $86.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>100-Watt Unit Offers Extended Sound Pressure Levels for High/Vaulted Ceiling Applications</li>\n <li>Conveniently Front Loads into Acoustically-Matched System Enclosures or Mounting Ring</li>\n <li>Top-of-the-Line 8" Coaxial Loudspeaker Delivers Full-Frequency Response with Superior Fidelity</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type Coaxial
Sensitivity 89.5dB Average, 93dB Peak
Power Taps 8 ohms
Frequency Response 75Hz - 20kHz
Dispersion 110°
Diameter 8 1/4" (20.955 cm)
Depth 3 5/8" (9.144 cm)
Shipping Weight 5.20 lbs (2.36 kgs)
Safety Listed 1480 / 2043
Atlas Sound 8 Coaxial 100-Watt 8 Ohm In-Ceiling Speaker FA138
Atlas Sound

Atlas Sound 8" Coaxial 100-Watt 8 Ohm In-Ceiling Speaker FA138

$86.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>Speaker Type</td>
<td>Coaxial</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>89.5dB Average, 93dB Peak</td>
</tr>
<tr>
<td>Power Taps</td>
<td>8 ohms</td>
</tr>
<tr>
<td>Frequency Response</td>
<td>75Hz - 20kHz</td>
</tr>
<tr>
<td>Dispersion</td>
<td>110°</td>
</tr>
<tr>
<td>Diameter</td>
<td>8 1/4" (20.955 cm)</td>
</tr>
<tr>
<td>Depth</td>
<td>3 5/8" (9.144 cm)</td>
</tr>
<tr>
<td>Shipping Weight</td>
<td>5.20 lbs (2.36 kgs)</td>
</tr>
<tr>
<td>Safety Listed</td>
<td>1480 / 2043</td>
</tr>
</tbody>
</table>
</div>
