Product Summary


  • front mounted tap selector switch for easy system tuning

  • built-in 70/100V transformer

    • 70-volt taps: 3.8, 7.5, 15, 30, and 60 watts

    • 100-volt taps: 7.5, 15, 30, and 60 watts



  • 8-ohm bypass allows use with consumer audio receivers and amplifiers

  • cutout diameter: 9-9/16"



  • 60-watt power handling

  • 6" paper composite woofer and 3/4" silk tweeter

  • low profile enclosure and 60° distribution pattern for installations in high ceilings

  • frequency response: 63-20,000 Hz (±7dB)

  • 92 dB sensitivity

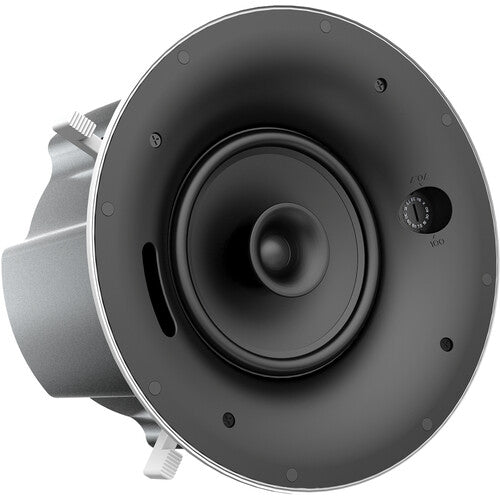

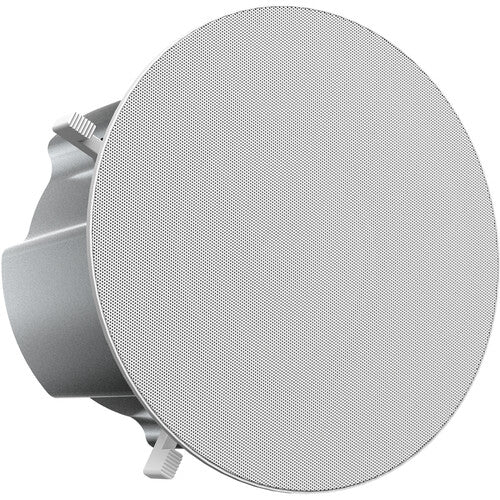

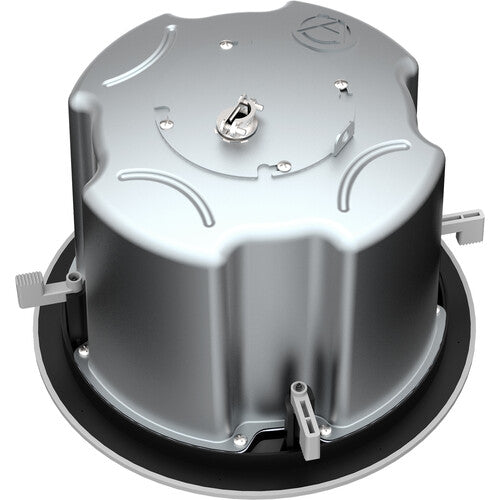

The Atlas FAP6260T can be the ideal speaker for a distributed audio installation in a room with high ceilings. The speaker's compact enclosure features a 60° narrow dispersion pattern and a built-in 60-watt transformer. A 6" paper composite woofer with rubber surround and a 3/4" coaxially mounted silk dome tweeter provide clear voice reproduction and background music for the office environment.

Atlas Sound 6" Coaxial Speaker System with 70.7/100V-60W Transformer and 8-Ohm Bypass

SKU: FAP6260T | UPC: 612079189943
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$397.98

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 6" Coaxial Speaker System with 70.7/100V-60W Transformer and 8-Ohm Bypass $397.98
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>front mounted tap selector switch for easy system tuning</li>\n <li>built-in 70/100V transformer\n<ul>\n <li>70-volt taps: 3.8, 7.5, 15, 30, and 60 watts</li>\n <li>100-volt taps: 7.5, 15, 30, and 60 watts</li>\n</ul>\n</li>\n <li>8-ohm bypass allows use with consumer audio receivers and amplifiers</li>\n <li>cutout diameter: 9-9/16"</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Power Rating 60 Watts
Cut Out Diameter 9.567" (243mm)
Power Taps 1.9, 3.8, 7.5, 15, 30, 60 Watts & 8Ω
Frequency Response 63Hz - 15kHz
Sensitivity 92dB
Dispersion 60°
Woofer 6" Composite Cone Butyl Rubber Surround
Woofer Magnet Weight 20 oz (566g)
HF Driver 20mm Coaxial Horn-Loaded Silk Dome Tweeter
Enclosure Volume 365 in3
Depth 8.08" (205mm)
Diameter 10.972" (279mm)
Mounting Depth 7.862" (19.97cm)
Certified To Safety Listing UL1480 & UL2043
