Product Summary


  • Efficient Wide-Range Frequency Response

  • Ideal for Public Address and Background Music Installations

  • Includes 4 Watt 70-Volt Transformer

  • Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker



  • Efficient Wide-Range Frequency Response

  • Ideal for Public Address and Background Music Installations

  • Includes 4 Watt 70-Volt Transformer

  • Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker

  • Mounts a Large Selection of Atlas Sound 4" Grilles

  • Offers Proven Performance with Wide-Angle Sound Dispersion

  • UL1480 Listed for General Signaling

  • UL Certified, Safety Listed to UL2043

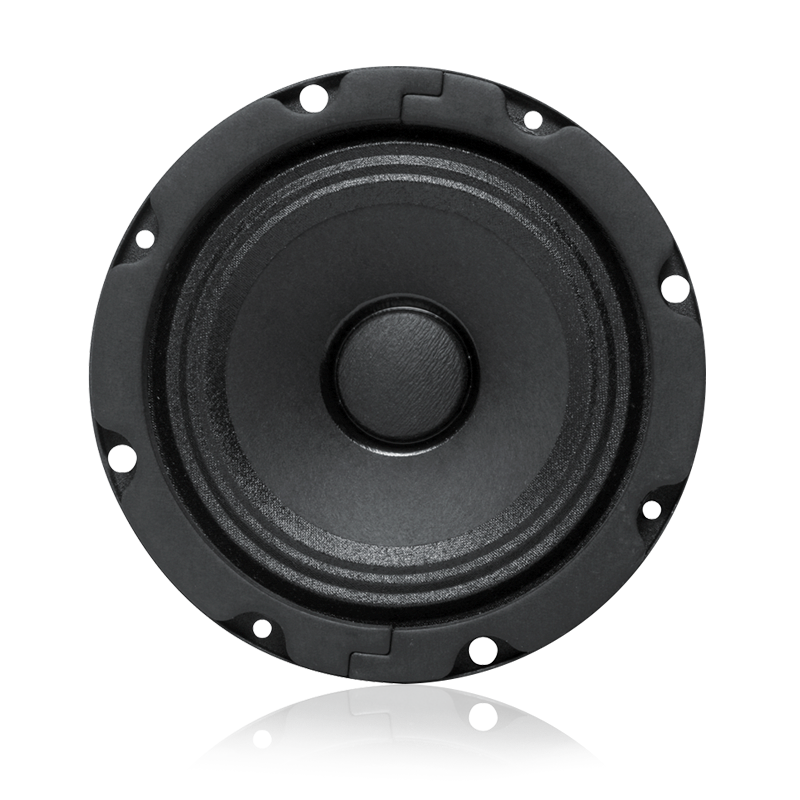

This compact, full-range, 4" (127mm) speaker with a LT-72 transformer is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response. Model FC104 also offers a wide dispersion angle which reduces the number of speakers necessary to achieve total coverage in low-level distribution systems. The 10-watt, 8-ohm model (without transformer) offers a frequency response range of 150Hz - 17kHz, sensitivity of 94dB (at 1 watt, 1 meter) and a dispersion angle of 135° (-6dB, 2kHz octave band). The unit contains a 10 oz. (283g) ceramic magnet with a flux density of 10,500 gauss. This U.S.-made speaker is available with six different factory-installed line matching transformers (see chart below) to meet a variety of project requirements. A dual-purpose bracket securely mounts the transformer in a low profile position and enables torsion spring mounting found on many AtlasIED baffles.

Atlas Sound 4" In-Ceiling Speaker with 4-Watt 25V/70V Transformer FC104T72

SKU: FC104T72 | UPC: 612079113699
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$71.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 4" In-Ceiling Speaker with 4-Watt 25V/70V Transformer FC104T72 $71.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Efficient Wide-Range Frequency Response</li>\n <li>Ideal for Public Address and Background Music Installations</li>\n <li>Includes 4 Watt 70-Volt Transformer</li>\n <li>Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type High Compliance
Sensitivity 94dB (1W/1m)
Frequency Response 100Hz - 10kHz
Power Taps .5, 1, 2, & 4 Watts
Dispersion 135° (-6dB, 2 kHz octave band)
Depth 4" (10.16 cm)
Shipping Weight 2.67 lbs (1.21 kgs)
Safety Listed 1480, 2043
