Product Summary


  • Use In Fixed Install or Portable Applications

  • 45° Vertical Coverage

  • 135° Horizontal Coverage

  • 70.7V, 100V or 6Ω Operation

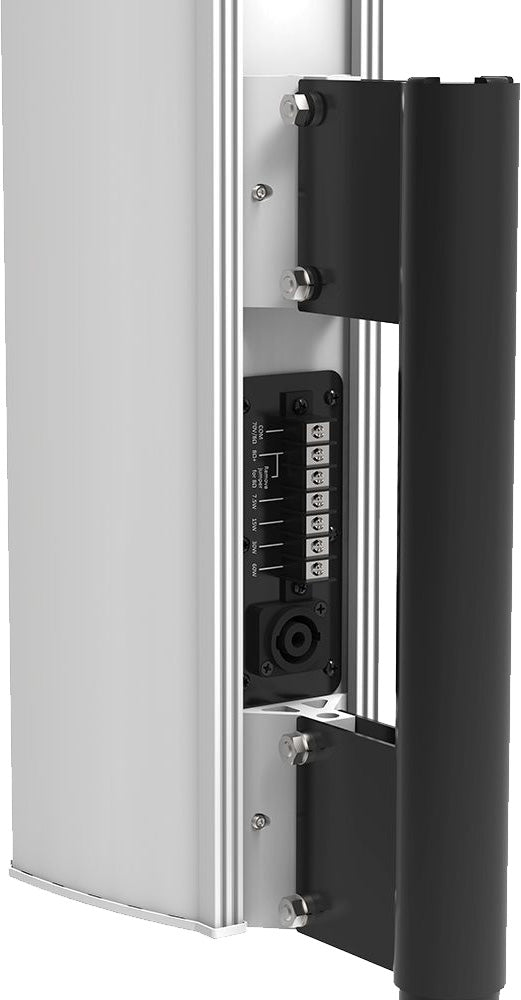

The Atlas EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW's transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.

Atlas ALA5TAW EN54-24 Certified 5-Inch Speaker Full Range Line Array Speaker System - White

SKU: EN54-24 | UPC: 999999540595
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$451.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas ALA5TAW EN54-24 Certified 5-Inch Speaker Full Range Line Array Speaker System - White $451.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Use In Fixed Install or Portable Applications</li>\n <li>45° Vertical Coverage</li>\n <li>135° Horizontal Coverage</li>\n <li>70.7V, 100V or 6Ω Operation</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
6Ω RMS Power 375 Watts
70.7V Power Taps 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
100V Power Taps 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
Dispersion 135° H x 45° V
Sensitivity 92dB (1W/1m)
Sensitivity (EN54-24) 78dB (1W/4m)
Frequency Response 137Hz - 20kHz (+/-5dB)
Height 16.61" (422mm)
Depth 5.43" (137.9mm)
Width 4.61" (117mm)

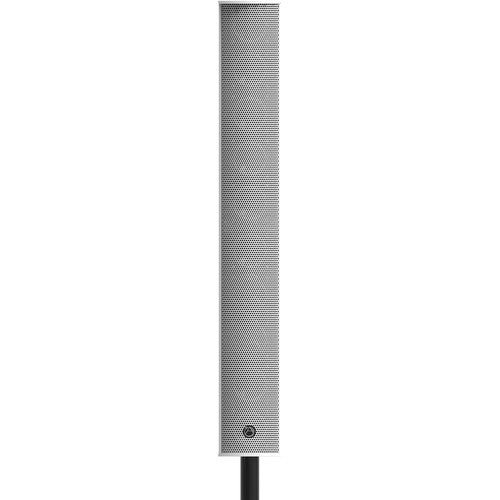

Atlas Sound ALA10TAW Passive 400W 3 2-Way Line Array Speaker System (White)
