Product Summary


  • Compatible with 5MP Cameras

  • CS Mount

  • Compatible with 1/2" Sensors

  • 7.6mm Focal Length

  • IR Corrected

  • 60.8° Diagonal Field of View

  • Fixed Iris Operation

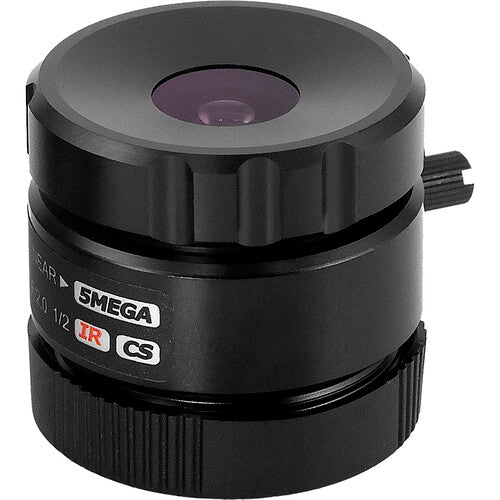

The V-557.6-5MP-VIS-IR 1/2 CS-Mount 7.6mm Fixed Lens from Marshall Electronics is designed for use with 5MP cameras that have a 1/2" sensor. This lens features a 7.6mm focal length that delivers a 60.8° diagonal field of view. It is IR corrected and has a fixed iris.









IR corrected







Anodized aluminum housing







f/2.0 aperture







Eight elements and eight components glass construction







SLAR coating on all eight elements (reflectivity <1%, 400 to 700nm)







6.1mm back focal length (±5%, in air)







Image circle diameter ≥8mm







<-12.7% optical distortion







44.5% relative illumination







486.1 to 656.3 / 780, 850nm visible and IR wavelengths





Marshall Electronics V-557.6-5MP-VIS-IR 1/2 CS-Mount 7.6mm Fixed Lens

SKU: V55765MPVISIR12 | UPC: 801813193107
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$89.50

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall Electronics V-557.6-5MP-VIS-IR 1/2 CS-Mount 7.6mm Fixed Lens $89.50
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_22p_DbxsLr4MV-m3EOA_5T">\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Compatible with 5MP Cameras</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">CS Mount</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Compatible with 1/2" Sensors</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">7.6mm Focal Length</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">IR Corrected</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">60.8° Diagonal Field of View</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Fixed Iris Operation</li>\n</ul>
Marshall Electronics V-557.6-5MP-VIS-IR 1 2 CS-Mount 7.6mm Fixed Lens
Marshall Electronics

Marshall Electronics V-557.6-5MP-VIS-IR 1/2 CS-Mount 7.6mm Fixed Lens

$89.50

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Lens Mount</strong> M12
<strong>Sensor Compatibility</strong> 1/2", 1/2.5" CMOS (5 MP)
<strong>Focal Length</strong> 7.6mm
<strong>Back Focal Length</strong> 6.1mm
<strong>Aperture</strong> f/2.0

<strong>Angle of View</strong>
<strong>1/2" Sensor</strong>
<em>Diagonal:</em> 60.8°
<em>Horizontal:</em> 47.9°
<em>Vertical:</em> 35.6°
<strong>1/2.5" Sensor</strong>
<em>Diagonal:</em> 55.4°
<em>Horizontal:</em> 47.9°
<em>Vertical:</em> 26.6°

<strong>Focus Type</strong> Fixed Focus
<strong>Iris Type</strong> Fixed
<strong>Distortion</strong> 1/2": -12.7%
<strong>IR</strong> <strong>Corrected</strong> Yes
<strong>Flange</strong> <strong>Back</strong> <strong>Length</strong> 0.22" / 5.7 mm
<strong>Certifications</strong> RoHS, as per Manufacturer
<strong>Dimensions</strong> (ø x L) 0.67 x 0.98" / 17 x 24.8 mm
