Product Summary


  • Control the CV-PT-HEAD Pan/Tilt Head

  • Pan/Tilt/Zoom/Focus Functions

  • Compact Design, Menu Navigation

  • Can Accept RCP Data and Power Camera

  • Stores up to 8 Preset Positions

  • Built-In Camera Control Protocols

  • Compatible with BR Cameras and Heads

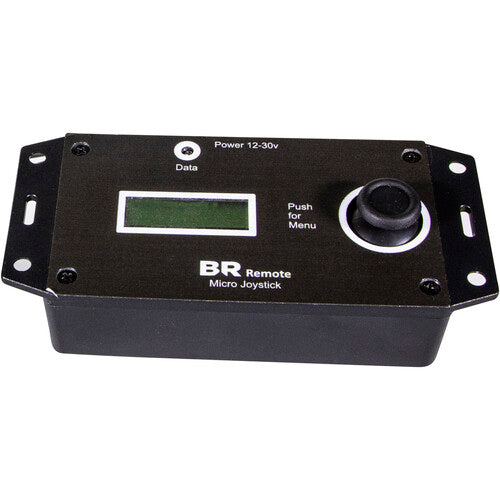

Control your pan/tilt head and BR camera functions remotely with this Mini Joystick Controller from Marshall Electronics. The compact controller features a thumb-style joystick that can control the pan, tilt, zoom, and focus features of your CV-PT-HEAD, BR head, or BR camera using RS-485 serial connectivity.

The controller is powered using a DC power input, and it features a 4-pin XLR output that connects to the pan/tilt head. Using a separately available cable extension, RS-485 serial signals can travel up to 3000' over XLR. It can also receive RCP data to control and power your BR camera mounted on the pan/tilt head. Using the LCD screen and menu system, you can store up to eight preset positions within the controller, and you can also set pan/tilt head configuration as well as camera settings such as iris, gain, shutter, focus, and more. The unit features mounting holes on the sides so it can be mounted on a rack.


Compatibility



Marshall CV-PT-HEAD motorized pan/tilt head
Marshall BR series heads and cameras






Joystick Functions



Pan, Tilt, Zoom, Focus, and Menu navigation






Menu Functions



Pan/Tilt Speed and Direction
Head Select and Re-Assign Ident
Ramp Up/Down
Store and GoTo Preset positions (8)
White Balance, Red Gain, and Blue Gain
Iris, Gain, Shutter
Auto Focus and Auto Iris
Master Pedestal, Gamma, Detail
Dynamic Range, Noise Reduction
Rec Run/Stop
Camera Protocol Select



Marshall Electronics CV-MICRO-JYSTK Mini Joystick Controller

SKU: CVMICROJYSTK | UPC: 801813227574
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$299.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall Electronics CV-MICRO-JYSTK Mini Joystick Controller $299.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_22p_DbxsLr4MV-m3EOA_5T">\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Control the CV-PT-HEAD Pan/Tilt Head</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Pan/Tilt/Zoom/Focus Functions</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Compact Design, Menu Navigation</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Can Accept RCP Data and Power Camera</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Stores up to 8 Preset Positions</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Built-In Camera Control Protocols</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Compatible with BR Cameras and Heads</li>\n</ul>
