Product Summary


  • Enables Extension of SDI/HDMI Cameras

  • Transmission Distance - 28 miles (45km)

  • Internal Battery

  • Talkback Function


Get everything you need for cameras in live production with a single converter! Connect your camera’s SDI or HDMI outputs for conversion to optical fiber, while your switcher program feed can be fed back via optical fiber for camera monitoring. ATEM Camera Converter includes an internal battery, talkback, tally, and microphone inputs!




ATEM Camera Converter

Blackmagic Design ATEM Camera Converter SWRCONV

SKU: SWRCONV | UPC: 9338716001310
Authorized Dealer Authorized Black Magic Design Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$595.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Blackmagic Design ATEM Camera Converter SWRCONV $595.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_22p_DbxsLr4MV-m3EOA_5T">\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Enables Extension of SDI/HDMI Cameras</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Transmission Distance - 28 miles (45km)</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Internal Battery</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Talkback Function</li>\n</ul>

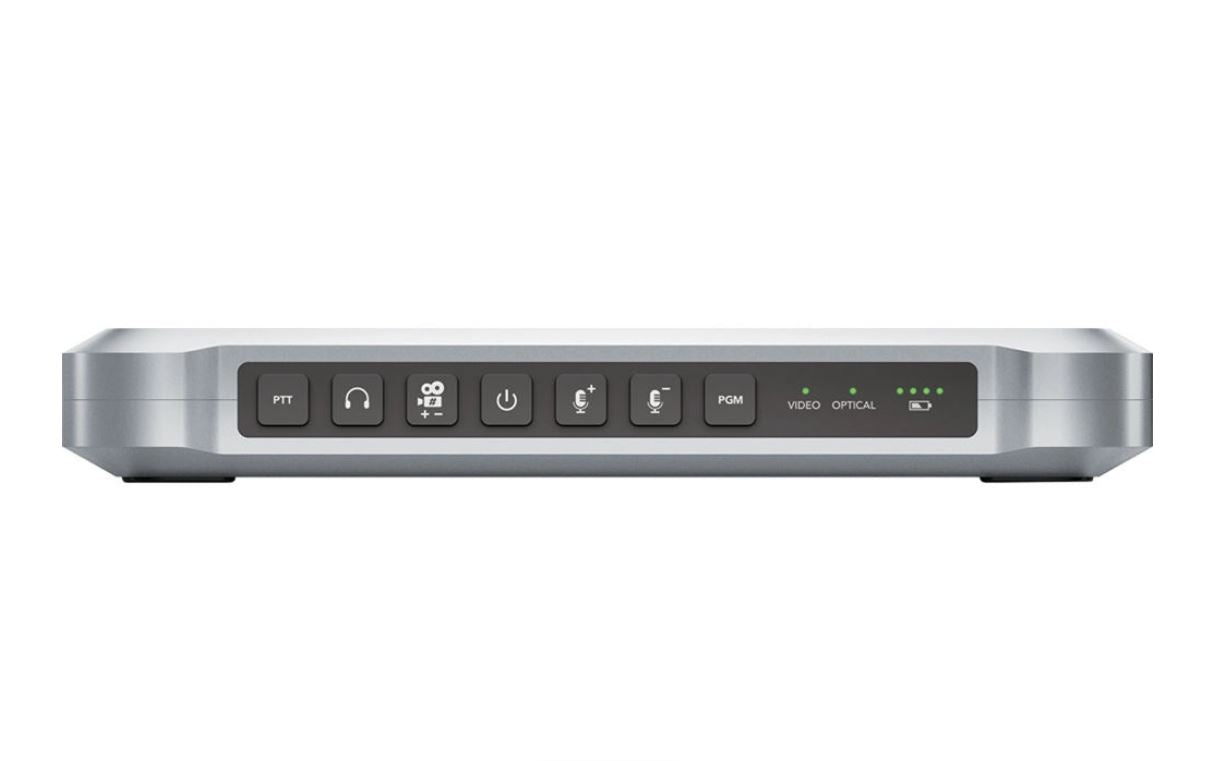

Blackmagic Design ATEM Camera Converter SWRCONV front
Black Magic Design

Blackmagic Design ATEM Camera Converter SWRCONV

$595.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Video Input</strong> :

SDI Video Input:1 x 10 bit SD/HD switchable
SDI Video Output: 1 x 10 bit SD/HD switchable
DMI Video Input: 1 x HDMI 1.3 type A connector
HDMI Video Output: 1 x HDMI 1.3 type A connector
Optical Fiber Video Input: 1 x LC type, 10 bit SD/HD switchable
Optical Fiber Video Output: 1 x LC type, 10 bit SD/HD switchable

Only single-mode LC type fiber optic cables are recommended for all fiber optic connections above

&nbsp;

<strong>Analog Audio :</strong>

2 x balanced 1/4" TRS connectors (stereo), line or microphone level in. When connected, replaces audio from SDI In or HDMI In. 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones (compatible with iPhone compatible headsets)
<strong>Computer Interface :</strong> 1 x USB 2.0 high speed interface for configuration and firmware updates
<strong>SDI Compliance :</strong> SMPTE 259M, SMPTE 292M
<strong>Video Sampling</strong> : 4:2:2
<strong>Audio Sampling :</strong> Television standard sample rate of 48Khz, 24 bit A/D conversion
<strong>Color Precision :</strong> 10 bit
<strong>Color Space :</strong> 4:2:2 YUV
<strong>Multiple Rate Support</strong> SDI and HDMI switches between 270Mb/s SD-SDI and 1.5Gb/s HD-SDI
<strong>Firmware Upgrade :</strong> Firmware built into software driver. Loaded at system startup or via updater software
<strong>Power Supply</strong> : 12V power supply included with international socket adaptors for all countries
<strong>Operating Systems Supported</strong> : Microsoft Windows XP, Windows Vista. Windows 7 and Apple Mac OS X
