Product Summary


  • 18x Optical + 12x Digital

  • 1/4-type EXview HAD CCD

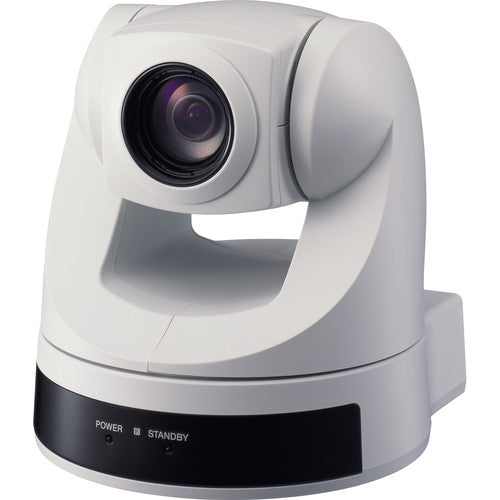

Take control with Sony's robotic pan/tilt/zoom color video camera - the popular EVI-D70/W. This camera combines a high quality 1/4 type EXview HAD™ CCD color camera with the flexibility of a remote pan/tilt/zoom operation, all in a compact easy-to-use package. Compared to its predecessor the EVI-D30, this superior EVI-D7/W camera incorporates a wider pan/tilt range with an 18x optical zoom lens and a faster pan/tilt mechanism, making it ideal for distance learning, video conferencing, houses of worship, courtrooms, hospitals and nursing homes, events and concert halls, and just about any other remote shooting application. Controller options available include the CPITV4S and the RM-BR300 joystick controllers. And best of all, the EVI-D70/W is ceiling mountable!

Sony EVID70/W PTZ Color Video Camera

SKU: EVID70/W | UPC: 27242285408
Authorized Dealer Authorized Sony Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$999.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Sony EVID70/W PTZ Color Video Camera $999.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>18x Optical + 12x Digital</li>\n <li>1/4-type EXview HAD CCD</li>\n</ul>

Technical Details

Specifications

Sensor
1/4" CCD
Signal System
NTSC
Signal To Noise Ratio
>50dB
Gain
Auto/Manual (-3 to +28 dB 2 dB steps)
Shutter Speed Range
1 to 1/10000 s
White Balance
Auto ATW Indoor Outdoor One push Manual
Resolution
SD
Output
VBS Y/C
Camera Control
RS-232C (8-pin mini DIN) control (VISCA)/RS-422 (9-pin) control (VISCA) Baud rate: 9.6 Kb/s 38.4 Kb/s
Focal Length
4.1-73.8mm
Minimum Object Distance
1 Lux with f/1.4
Pan Angle
±170 degrees
Tilt Angle
-30 degrees to +90 degrees
Pan Speed
100degrees/sec
Tilt Speed
90degrees/sec
Presets
6 positions
Operating Temperature
32-104°F 0-40°C
Power
10.8-13.2VDC
Minimum Illumination
1 Lux with f/1.4
Optical Zoom
18x
