Product Summary


  • RC2-HDS Kit

  • 1/4" 3CMOS ClearVid

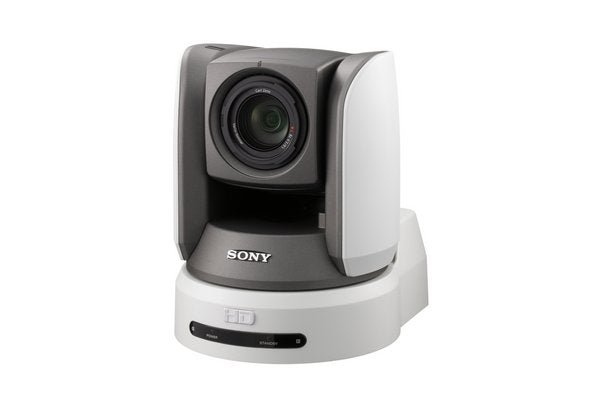

EZ-2-Connect PTZ Camera Solution featuring BRC-Z700 PTZ Camera with RC2-HDS Kit. The Sony BRC-Z700 is a high definition 3CMOS communications camera mounted on a pan and tilt mechanism. The superior quality of the video resulting from the 3CMOS and the choice between HD and SD video output makes this camera ideal for almost any situation, including sporting events. With the refinement in CMOS development, it has over 1 million pixels at its disposal and can be mounted upside down from a ceiling due to a built-in image-flip function. With the addition of an optional BRBK-HSD1 card, the camera is also capable of HD/SD-SDI output.

Sony BRC-Z700 PTZ Camera Package with RC2-HDS Kit

SKU: BRCZ700/PAC2 | UPC: 27242285163
Authorized Dealer Authorized Sony Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
Sony BRC-Z700 PTZ Camera Package with RC2-HDS Kit Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • High-Definition Three-CMOS Imaging
  • HD And SD Outputs
  • Ceiling Mount Image Flip
  • Optional HD-SDI Video Output
  • RC2-HDS Extension Kit Included

Technical Details

Specifications

Resolution
HD 1080
Optical Zoom
20x
Pan Angle
±170° from Center
Tilt Angle
-30-90°
Output
BRBK-HSD1: HD-SDI, SD-SDI (with an optional card)
Power
12VDC, Power Requirements 10.8 to 13.2 VDC, Storage Temperature : -4 to 104°F (-20 to 60°C)
sony-brc-z700-hd-ptz-camera
Sony

Sony BRC-Z700 PTZ Camera Package with RC2-HDS Kit

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/4"-type HD 3 CMOS, 1.04 MP

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

1080/59.94i, NTSC or 1080/50i, PAL (switchable)

N/A

Signal To Noise Ratio

50dB

N/A

Gain

Auto/Manual (0 to 24 dB and Hyper Gain)

N/A

Shutter Speed Range

1/60 to 1/10000 (59.94i) 1/50 to 1/10000 (50i)

N/A

Exposure Control

-

N/A

White Balance

Auto1, Auto2, Indoor, Outdoor, One-push WB, Manual

N/A

Image Stabilization

-

N/A

Image Flip

On/Off

N/A

ICR

-

N/A

Sync

-

N/A

Output

BRBK-HSD1: HD-SDI, SD-SDI (with an optional card)

N/A

Audio Input

-

N/A

Audio

-

N/A

Camera Control

VISCA protocol

N/A

Focal Length

f=3.9 to 78.0mm (F1.6 to F2.8)

N/A

Minimum Object Distance

0.4 in

N/A

Pan Angle

±170° from Center

N/A

Tilt Angle

-30-90°

N/A

Pan Speed

0.22-60°/s

N/A

Tilt Speed

0.22-60°/s

N/A

Presets

16 positions

N/A

Operating Temperature

32-104°F (0-40°C)

N/A

Power

12VDC, Power Requirements 10.8 to 13.2 VDC, Storage Temperature : -4 to 104°F (-20 to 60°C)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

6 Lux at f/1.6

N/A

Optical Zoom

20x

N/A

TAA Compliant

N/A
