Product Summary

Projector Overview

The Epson PowerLite 685W is one of the best ultra short-throw presentation displays on the market. Specifically engineered for the classroom, it allows for large-scale viewing even in the tightest spaces.

Key Specifications

  • Resolution: WXGA (1280 x 800) for widescreen laptops
  • Brightness: 3,500 Lumens for well-lit rooms
  • Contrast: 14,000:1 for sharp text and deep blacks
  • Audio: Built-in 16W speaker

Integration and Connectivity

This model is the ideal choice for environments using SMART Board M685 and 885 interactive whiteboards. It supports the SMART Extended Control Panel, allowing teachers to manage power and volume directly from the board. Advanced networking allows IT administrators to monitor and control the projector status remotely.

Eco-Friendly Design

With a lamp life of up to 10,000 hours in ECO Mode, maintenance costs are significantly reduced, ensuring your classroom stays operational longer without downtime.

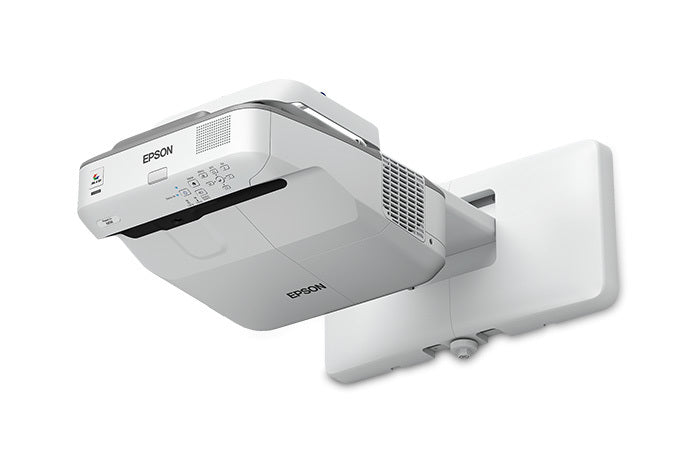

Epson PowerLite 685W WXGA 3LCD Ultra Short-Throw Projector for SMART Board

SKU: V11H744620 | UPC: 10343930926
Authorized Dealer Authorized Epson Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,549.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Epson PowerLite 685W WXGA 3LCD Ultra Short-Throw Projector for SMART Board $1,549.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • WXGA 1280 x 800
  • 3,500 ANSI lumens
  • Ultra short throw design
  • 10,000-hour ECO lamp
  • SMART Board compatibility

Technical Details

Specifications

Lumens (ANSI)
3500
Native Resolution
1280 x 800
Display Technology
LCD
Contrast Ratio
14000:1
Aspect Ratio
16:10 (WXGA)
Throw Distance
Throw Ratio Range: 0.28 - 0.37
Image Size Diagonal
60" – 100" (0.34 – 0.6 m)
Lens
F-number: 1.6 Focal Length: 3.7 mm Zoom Ratio: Digital zoom 1.0 – 1.35
Digital Keystone
Horizontal & Vertical
Short Throw
Yes

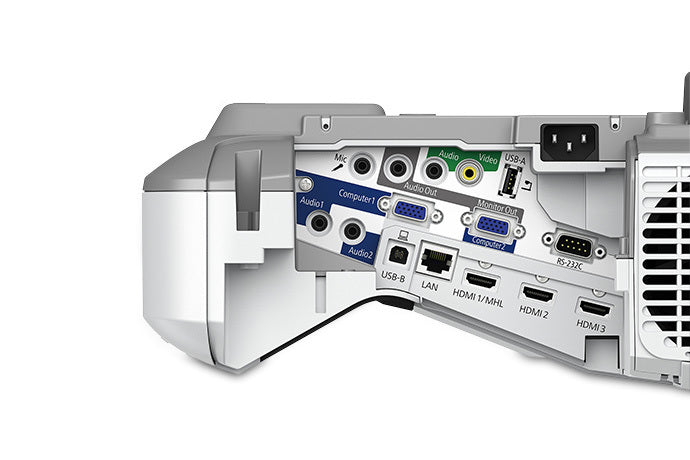

Inputs
• Microphone: 1x RS-232c: 1x Video: 1x Audio in: 3x Mini Stereo,
Outputs
• Audio-out: 1x Monitor-out: 1x / Computer 2
Speakers
16W Mono
Audible Noise
35 dB
Lamp Life
5000 hours
Projector Methods
Front, Rear, Ceiling Mount, Table Top
Dimensions (W × D × H)
Including feet: 14.5" x 15.8" x 7.4" (W x D x H)
Unit Weight
12.6 lbs
