ViewSonic

ViewSonic CDE4320-W1 43" 4K UHD Presentation Display Bundle with VSB050 USB Wi-Fi Adapter

• 3840 x 2160 Resolution
• 350 Nit Brightness
• 24/7 Operation
• Landscape Orientation

SKU: CDE4320W1

Atlas Sound

Atlas Sound UL Listed Explosion-Proof 16.5" Diameter Horn HLE_MLE-32

• Choice of 60 or 30 Watt High-Intelligibility Driver in Cast Aluminum Housing (Sold separately)
• Efficiency of Reflex-Style Projector with Circular Sound Dispersion
• Explosion-Proof Loudspeaker Projector for Signal and Communications Systems
• Listed by UL and CSA for Use in Hazardous/Combustible Environments (noted models)
• Requires Either HLE Type or MLE Type Driver

SKU: HLE/MLE32

ViewSonic

Viewsonic CDE9830K 98" 4K Presentation Display

• 3840 x 2160 Resolution
• 500 Nit Brightness
• Landscape/Portrait Orientation
• 24/7 Operation

SKU: CDE9830

Atlas Sound

AtlasSound Priority Paging Remote Controller AA-PPRC

Height	1 1/2" (3.81 cm)
Width	4" (10.16 cm)
Depth	4 1/2" (11.43 cm)
Shipping Weight	2.00 lbs (0.91 kgs)
Frequency Response	20Hz - 20kHz Flat
Connector Type	Four Position Detachable Phoenix Connector
Finish	Black
Load Capacity	5 AMPS
Compatible With	8Ω, 25V, 70.7V, 100V Systems

SKU: AAPPRC

Atlas Sound

Atlas Sound Indoor/Outdoor Analog Wall 3x1 Mic/Line/BT/AUX Mixer W/Optional Dante® Audio Network Interface WTSD-MIX31K

Music Input	3.5mm Stereo Summed Front Panel
Impedance	10kΩ
Input Level	1V (0dBV)
Input Type	Unbalanced, Qty. 1
Music Input	Bluetooth Stereo Front Panel
Impedance	10kΩ
Input Level	1V (0dBV)
Input Type	Balanced Mic/Line Selectable, Qty. 1
Connector Type	XLR Female Socket
Impedance	1.2kΩ Balanced, 600Ω Unbalanced
Phantom Power	24VDC Defeatable Rear panel DP SW, ON Indicator RED Front Panel
Low Cut Filter	125Hz/12dB Defeatable Rear Panel DP SW
Line Input Level	500mV (-6dBV) Balanced
Output Type	WTSD Bus
Connector Type	RJ45
Frequency Response	20Hz -20KHz +/- 1dB
THD	.06% & 1KHz
Height	4.37" (111mm)
Width	4.34" (110mm)
Depth	2.5" (62.6mm)
Weight	0.53 lbs (.24kg)
Shipping Weight	1.3 lbs. (.61kg)

SKU: WTSD-MIX31K

Atlas Sound

Atlas Sound WTSD Mixer/Mic Line/Aux Mixer 3x1 with Bluetooth, Dante

Music Input	3.5mm Stereo Summed Front Panel
Impedance	10kΩ
Input Level	1V (0dBV)
Input Type	Unbalanced, Qty. 1
Music Input	Bluetooth Stereo Front Panel
Impedance	10kΩ
Input Level	1V (0dBV)
Input Type	Balanced Mic/Line Selectable, Qty. 1
Connector Type	XLR Female Socket
Impedance	1.2kΩ Balanced, 600Ω Unbalanced
Phantom Power	24VDC Defeatable Rear panel DP SW, ON Indicator RED Front Panel
Low Cut Filter	125Hz/12dB Defeatable Rear Panel DP SW
Line Input Level	500mV (-6dBV) Balanced
Output Type	WTSD Bus
Connector Type	RJ45
Frequency Response	20Hz -20KHz +/- 1dB
THD	.06% & 1KHz
Height	4.37" (111mm)
Width	4.34" (110mm)
Depth	2.5" (62.6mm)
Weight	0.53 lbs (.24kg)
Shipping Weight	1.3 lbs. (.61kg)

SKU: WTSDMIX31K

Atlas Sound

Atlas Sound TSD- MIX42RT 4x2 Mic/Line Mixer with Priority Sense

Type	3x Unbalanced 1/8" (3.5 mm) stereo1x Balanced mic or line selectable removable 3 position captive screw 1/8" (3.5 mm) spacing
Impedance	1/8": 10 kΩCaptive Screw: 1.2 kΩ (balanced), 600 Ω (unbalanced)
Input Level	1/8": 316 mV (-10 dB) = 2 V (+6 dBV) Balanced Output, Maximum Input 1.6 V (4.1 dBV)
Phantom Power	Captive Screw: 24 VDC, defeatable
Low Cut Filters	Captive Screw: 125 Hz/12 dB, defeatable
Line Input Level	1 V (0 dBV) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 6 V (15 dBV)
Mic Input Level	46 dB Gain, 1 0mV (-40 dB) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 40 mV (-27 dBV)

Outputs

Type	2x Balanced line (L & R) removable 3 position captive screw 1/8" (3.5 mm) spacing
Impedance	Balanced: 300 ΩUnbalanced: 150 Ω
Line Output Level	1 V (0 dBV) In = 2 V (+6 dBV), Maximum Output 6 V (15 dBV)

Controls

Input Level	4x Removable knobs with security covers
Mute	Mute CC: Contact closure, removable 2 position captive screw 1/8" (3.5 mm) spacingVOX Mute Sens: Trim adjust for mic sensitivity
Limiter	Output Limiter: Threshold adjust
Remote	Remote Level: Control port 10 kΩ external pot, removable 2 position captive screw 1/8" (3.5 mm) spacing
Voltage Output	DC 12 V Output: 12 V DC to power wall controller LED, removable 2 position captive screw 1/8" (3.5 mm) spacing

SKU: TSDMIX42RT

Atlas Sound

Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer

Type	1x Unbalanced RCA left and right actively summed2x Balanced mic or line selectable removable 3-position captive screw 1/8" (3.5mm)
Impedance	RCA: 10 kΩ1/8": 1.2 kΩ balanced, 600 Ω unbalanced
Input Level	RCA:316 mV (-10 dBV) = 2V (+6 dBV) Balanced OutputMaximum Input: 1.6 V (4.1 dBV)
Phantom Power	1/8": 24 V DC, defeatable
Low Cut Filters	1/8: 125 Hz/12 dB, defeatable
Line Input Level	1/8": 1 V (0 dBV) Balanced, 2 V (+6 dBV) Balanced Output,Maximum Input: 6 V (6 dBV)
Mic Input Level	1/8": 46 dB Gain 10 mV (-40 dBV) Balanced = 2 V (+6 dBV) Balanced OutputMaximum Input: 40 mV (-27 dBV)

SKU: TSDMIX31RL

Atlas Sound

Atlas Sound CZSVUS Atmosphere™ Zone, Source, and Volume Wall Controller

• Software configurable pin code access lock
• Control of groups and room combine
• Scene recall, message recall, and routine recall
• Sub mix control
• Automatic creation of Virtual Wall Controller (VWC)
• User selectable screen saver, including QR code for simple, touchless Virtual Wall Controller access
• Locate LED function for easy identification

SKU: CZSVUS

Atlas Sound

Atlas Sound CVUS Atmosphere Volume Controller (White)

• Control of single zone or source
• Single-click configuration
• Customizable RGB LED ring for mute, level, and fader control
• Live signal level meter

SKU: CVUS

CHRISTIE

Christie DWU19-HS WUXGA Large Venue Projector

• 1920 x 1200 Resolution
• 17,000 ANSI Lumens
• 6000:1 Contrast
• Geometric Correction

SKU: DWU19HS

Atlas Sound

Atlas Sound BlueBridge® Level Controller - White BBWP-K1W

• Power and Network Status Indicator LEDs
• Single Label Slot with Plastic Protective Cover
• Level Control with LED Ladder Level Indicator
• Aluminum Front Panel
• RJ45 Ethernet Connector
• External Power: 2 Pin Detachable Euro Connector
• IP Reset Switch Push Button
• Also Available in Black

SKU: BBWPK1W

Atlas Sound

Atlas Sound BBWP-K1B Bluebridge Wall Controller with Single Value Change Adjustment (Black)

• Power and Network Status Indicator LEDs
• Single Label Slot with Plastic Protective Cover
• Level Control with LED Ladder Level Indicator
• Aluminum Front Panel
• RJ45 Ethernet Connector
• External Power: 2 Pin Detachable Euro Connector
• IP Reset Switch Push Button
• Also Available in White

SKU: BBWPK1B

Atlas Sound

Atlas Sound Atmosphere™ 4-Zone Audio Processor AZM4

• 2 accessory ports that support up to 16 controllers & sensors, and 2 audio wall plates (1 per port)
• App-less virtual wall controller access via QR code or distributed URL
• Bell Scheduler
• Message player
• Room combine and groups
• Mono, stereo, and subwoofer support
• Auto noise compensation
• Loud Noise Detection
• On board WIFI to use as an access point or connect to existing Wi-Fi network
• Large library of AtlasIED speaker presets
• Accessory self-heal
• High Priority GPI input for integration with alarm system
• Wide selection of audio DSP objects
• Third Party Control

SKU: AZM4US

Atlas Sound

Atlas Sound Dual 2" x 4" Sound Masking Speaker System with 70V Transformer M2000-LP

Height	2 5/8" (67mm)
# Inputs	> 4
Width	7 1/2" (191mm)
Depth	7" (178mm)
Transformer Taps	.25, .5, 1, 2, & 4 Watts, plus an Off Setting
Loudspeaker	Two 2" x 4" Paper Cone Speakers
Weight	3.3lb (1.49kg)

SKU: M2000LP

Atlas Sound

Atlas Sound BBWP-S4B Bluebridge DSP Controller with 4-Button Controller (Black)

External Power: 2 Pin Detachable Euro Connector

IP Reset Switch Push Button

SKU: BBWP-S4B

Atlas Sound

Atlas Sound BlueBridge® Expansion I/O Box with Dante™ BB-EB1616DT

Input Impedance	>10kΩ
CMRR	>100dB (50Hz-10kHz)
Maximum Level	+20dBu
CMRR	>100dB (50Hz - 10kHz)
Mic Gain	0/+40dB Steps
Frequency Response	20Hz - 20kHz
Crosstalk	<-100dB
Distortion	.002% (1kHz @ +40dBu))
Signal LEDs	1 Dual Color Per Channel
Status LEDs	Power and Data
Analog I/O	Phoenix Plug-in 3.5MM
Ethernet Network I/O	RJ45 (CAT5)
Power	90-240VAC (50-60Hz)
Width	19" (483mm)

SKU: BBEB1616DT

Atlas Sound

Atlas Sound BB88 BlueBridge 8 Input / 8 Output DSP Audio Processor

Dimensions	L x W x D: 1.8 x 19.0 x 9.0" (4.4 x 48.2 x 22.9 cm)
Input Type	Microphone or Line, Software Selectable
Input Gain	-40 to +15 dB in 0.25 dB Steps
Phantom Power	48 V, Software Enabled
Output Type	Line
Output Gain	-40 to +15 dB in 0.25 dB steps
Output Impedance	50 ohms
Processor	40-bit Floating Point
Sampling Rate	48 kHz
Power Requirements	90 - 240 VAC (50-60 Hz)
Digital to Analog Converter	High Performance 24-bit

SKU: BB88

Atlas Sound

Atlas Sound BB168 BlueBridge 16 Input / 8 Output DSP Audio Processor

• Filter modules include high shelf, low shelf, and all pass

• Mixer modules includes a gain sharing auto-mixer, a gating auto-mixer, a matrix mixer, a standard mixer, a LR mixer, and a LCR mixer

• Generator modules come in sine tone, sign sweep, white, and pink

• Dynamic modules include a compressor, expander, limiter, and ducker

• Output peak and signal indicator LEDs

• Safety listed to UL60005

SKU: BB168

Atlas Sound

Atlas Sound BB1616 BlueBridge 16 Input / 16 Output DSP Audio Processor

Inputs	16
Safety Listed	Listed to UL60005
Outputs	16
Input Type	Microphone or Line, Software Selectable
Output Type	Line
RAID	40-Bit Floating Point
Analog Converters	High Performance 24-Bit
Phantom Power	48V, Software Enabled
Input Impedance	>10kΩ
Dynamic Range	110dB Type (Unweighted)
Latency	5ms
CMRR	>100dB (50Hz-10khz)
Distortion	0.002% (1kHz @ +4dBu)
Configuration Electronically Balanced Gain	-100 to +15dB in 0.25dB Steps
Power Consumption	18.5W
Polarity	+/-, GUI Selectable
Frequency Response	20Hz - 20kHz
Height	1.75" (44mm)
Width	19"
Depth	9" (229mm)
Weight	7.2 lbs / 3.25 kg

SKU: BB1616

Atlas Sound

Atlas Sound Atmosphere™ 8-Zone Audio Processor AZM8

• 4 accessory ports that support up to 16 controllers & sensors, and 4 audio wall plates (1 per port).
• App-less virtual wall controller access via QR code or distributed URL
• Bell Scheduler
• Message player
• Room combine and groups
• Mono, stereo, and subwoofer support
• Auto noise compensation
• Loud Noise Detection
• On board WIFI to use as an access point or connect to existing Wi-Fi network
• Large library of AtlasIED speaker presets
• Accessory self-heal

SKU: AZM8US

Atlas Sound

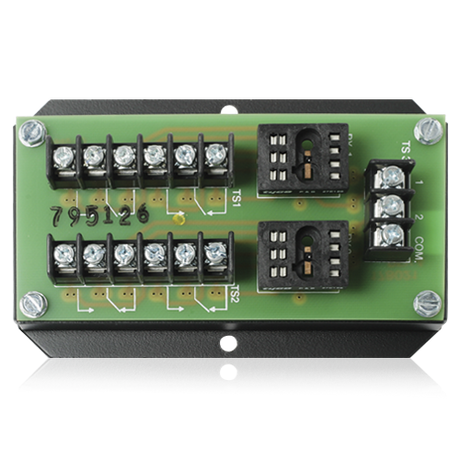

Atlas Sound 2 Socket Modular Relay Pack RPM-2Atlas Sound 2 Socket Modular Relay Pack RPM-2

Relay	2
Height	15/16" (2.38252 cm)
Width	4 3/4" (12.065 cm)
Shipping Weight	0.50 lbs (0.23 kgs)

SKU: RPM-2

Atlas Sound

Atlas Sound 5 Amp Relay RLM-24-5

Frequency Response	350Hz-4500Hz (±6dB)
Sensitivity	88dB (Measured @ 1 watt / 1 meter) 92.4dB 2000Hz Octave Band
Transformer Taps	1/4, 1/2, 1, and 2 Watts
Transformer	25V
Height	4 3/4" (121mm)
Depth	2 1/8" (54mm)
Shipping Weight	1.75 lbs (0.79 kgs)

SKU: RLM24

Atlas Sound

Atlas Sound Intercom Stations w Speaker, Call & 25V Transformer VPCS-2GPB-2

• Shallow Depth of 2 1/8" (54mm) for Mounting in Standard 2 & 3-Gang Back Boxes
• Transformer Models Include 1/4, 1/2, 1, and 2 Watt Taps at 25V
• Durable 11-Gauge, Stainless Steel Face Plate
• Moisture-Resistant 2 1/2" (64mm) Diameter Cone Loudspeaker
• Offers Smooth Loudspeaker Response with High Output in the Speech Range
• Two-Piece Die-Cast Baffle System Protects the Loudspeaker Assembly from Vandalism
• Choice of Basic or Call Switch Equipped Models
• Unit Design Facilitates Quick and Easy Service Procedures

SKU: VPCS2GPB2

Atlas Sound

Atlas Sound Recessed Circular Vandal Proof Baffle for 8" Speakers and Select Horn Speakers VP60R

• Meets Varying Application and Aesthetic Requirements
• Special Aluminum Alloy Construction Provides Twice the Strength of Conventional Cast Aluminum Baffles
• Tamperproof Protection for Cone Loudspeakers and Re-Entrant Horns

SKU: VP60R

Atlas Sound

Atlas Sound TSD-TXHL High/Low Level Converter

• Speaker Level to Line Level Conversion Works with 4Ω/25/70/100V Speaker Systems
• Variable Output Level
• Transformer Isolated
• Trim Level Control
• Cable Management System
• Multiple Mounting Configurations
• Wide Bandwidth Frequency Response
• Separate Ground Connections

SKU: TSDTXHL

Atlas Sound

Atlas Sound TSD-PS24V250MA Power Supply for TSD Modules

Input Voltage	100 VAC to 240 VAC
Output Voltage	24 VDC
Output Current	250 MA

SKU: TSDPS24V250MA

Atlas Sound

Atlas Sound 2-Channel Balance Line Input to Dante® Interface TSD-DAC2I

SPECIFICATIONS

Network Interface	Single RJ-45
Input Impedance	15kΩ (Analog)
Frequency Response	20Hz - 20kHz (+/- 2dB)
THD	.06% @ 1kHz
Signal To Noise Ratio	95dB @ 1kHz (A Weighted)
Dynamic Range	100dB (-60dBFS A Weighted)
Power Source	PoE (52V 36mA)
Power Consumption	1.9W
Height	1" (25mm)
Width	3.6" (93mm)
Depth	3.17" (81mm)
Weight	.44 lbs (0.20kg)
Shipping Weight	.7 lbs (0.32kg)

SKU: TSDDAC2I

Atlas Sound

Atlas Sound Deluxe 8 inch Surface Mount Square Enclosure 8 inch Deep SM191-78-8

• Choice of Square Surface Mounting Model Meets Professional Sound Installation Requirements
• Generous Acoustic Fiberglass Lining Improves Low Frequency Response to Achieve Fuller, Richer Bass
• Mounts a Variety of Atlas Sound Square Baffles

SKU: T5184

Atlas Sound

Atlas Sound SHS-LF Strategically Hidden Subwoofer 60-Watts 70V/100V Transformer (Black)

SPECIFICATIONS

Sensitivity	87dB (1W/1m)
Power Taps (70V)	1.9, 3.8, 7.5, 15, 30, 60-Watts
Power Taps (100V)	3.8, 7.5, 15, 30, 60-Watts
Recommended Amp Power (RMS)	200-Watts @ 8Ω
Frequency Response (Line Gain)	46Hz - 127Hz (+/- 5dB)
Cut Out Diameter	2.75" (69.85mm)
Certified To Safety Listing	UL1480A & UL2043, CSA C22.2 No. 205-17
Dimensions (HxWxD)	4.58" (116.3mm) x 24.56" ( 623.8 mm) x 16.66" (423.3mm)
Weight	28.70 Lbs (13.02 kg)

SKU: SHSLF

Atlas Sound

Atlas Sound 2 RU 22 inch Deep Rack Shelf SH2-22

Rack Units	2
Color	Black
Height	3 1/2" (8.89 cm)
Depth	22" (55.88 cm)
Shipping Weight	11.04 lbs (5.01 kgs)

SKU: SH222

Atlas Sound

Atlas Sound Single Gang Stainless Steel Plate with (1) Female 3 Pin XLR SG-XLR-F1

• Female 3 Conductor
• Perfect for Remote Microphone Applications
• Wall/Panel Receptacle

SKU: SGXLRF1

Atlas Sound

Atlas Sound Semi-Flush Adapter - Neutral for Voice / Tone™ Speakers SFP-N

• All Models Produce High Level Output, Optimum Intelligibility, and Effective Dispersion
• Choose from Surface or Recessed Models in Red or Neutral Gray Finish
• Durable, Die-Cast, Water-Sealed Housings Withstand Vandalism, Vermin, Moisture, Corrosion, and Vibration
• Easy and Low Cost Installation Via Standard E.O. Boxes
• Ideal for Reliable Voice/Tone Signaling in Public Area Emergency Communications and Heavy-Duty Industrial Applications
• Patented Emergency Loudspeakers Available in 8-Ohm, 70.7V, and 25V Versions

SKU: SFPN

Atlas Sound

Atlas Sound SFD16 Solid Front Door for WMA Series Racks (16U)

Rack Form Factor	16 RU
Height	28.00" / 71.12 cm
Width	20" / 50.8 cm
Depth	1" / 2.5 cm
Material of Construction	Solid Steel
Front / Rear	Front

SKU: SFD16

Atlas Sound

Atlas Sound Solid Front Door for WMA Series Racks 14RU SFD14

Rack Units	14
Height	27" (68.58 cm)
Width	22.5" (57.15 cm)
Depth	1" (2.54 cm)
Shipping Weight	17.00 lbs (7.71 kgs)

SKU: SFD14

Atlas Sound

Atlas Sound SB11WE Studio Boom Microphone Stand 43-68"(Ebony)

Tube Style	Two- Section
Boom Counter Weight	Adjustable, 2 lbs
Boom Length	60
Stand Height	43 - 68
Shipping Weight	26.00 lbs (11.79 kgs)

SKU: SB11WE

Atlas Sound

Atlas Sound 25 inch Deep, 14RU Mobile Equipment Rack Includes: Casters, and Side Handles RX14-25

• Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
• Standard Rack Includes Base, Top Panel, Side Panels, and Casters
• Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
• Welded Frame for Long-Lasting Durability

SKU: RX1425

Atlas Sound

Atlas Sound Extra Rack Rails for 300 Series - 10 RU RR310

• Finished in black
• Rails are Sold in Pairs and Include Hardware
• These 11-Gauge CRS Mounting Rails are Tapped 10-32 on E.I.A. Universal Spacing

SKU: RR310

Atlas Sound

Atlas Sound PSR-206 Zone Page-Powered Relay Pak

• Available in 12 or 24-Watt Versions
• Capacity for Additional External Relays or Lights
• Choice of Six (PSR-206) or Twelve (PSR-212) 24 VDC DPDT Relay Models
• Easy Conversion for All-Page Applications
• Pre-Mounted and Wired to Power Supply

SKU: PSR-206

Atlas Sound

Atlas Sound 19 inch 5 RU Recessed Vent Rack Panel PPR5

Rack Units	5
Color	Ebony Black
Panel Type	Steel
Height	8 3/4" (22.23 cm)
Width	19" (48.26 cm)
Depth	5/8" (1.59 cm)
Shipping Weight	1.40 lbs (0.64 kgs)
Safety Listed	1678

SKU: PPR5
