Product Summary


  • 1920 x 1080 Resolution at 60 fps

  • 1/2.5" Exmor R CMOS Sensor

  • Optionally Upgradable to UHD 4K

  • 3G-SDI, HDMI & Ethernet Output

  • 70° and up to 12x zoom


Key Features


  • Up to 1920 x 1080 Resolution at 60 fps

  • Optionally Upgradable to UHD 4K

  • 1/2.5" Exmor R CMOS Sensor

  • 3G-SDI, HDMI & Ethernet Output






The integrated pan/tilt system allows for 340° panning and 110° tilting at up to 300° and 126° per second respectively. Focusing can be performed manually or set to automatic. The camera outputs video via its HDMI, IP, and 3G-SDI interfaces. PoE+ technology simplifies setup by enabling you to power the camera directly via its network connection. An IR remote commander, mounting hardware, and an HDMI clamp are included in the package.













  • 1/2.5" Exmor R sensor for low-noise images even in dimly lit environments down to 1.6 lux










  • 1920 x 1080 resolution at 60 fps










  • Upgradable to UHD 4K (3840 x 2160) resolution via optional license










  • 12x optical zoom










  • Up to 40x total zoom in Full HD with Clear Image Zoom










  • Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings










  • Horizontal viewing angle of approximately 70° for covering the whole scene in meeting rooms, lecture theaters, etc.










  • Can be used with the AI-based REA-C1000 Edge Analytics Appliance to smoothly track the speaker's movements and automatically generate a cut-out image of the speaker










  • Up to 300°/sec pan and tilt speed during preset recall










  • Picture Freeze Preset maintains a steady image while the camera moves to a new preset position, with no uncomfortable transitions for the audience










  • NDI | HX compatibility via optional license










  • RTSP (Real Time Streaming Protocol) support for remote viewing over the internet from a web browser










  • PoE+ simplifies installation—a single IP cable can carry camera power, video image output, and control signals










  • Day/night, visibility enhancer, image stabilization, image flip, and flicker cancel functions

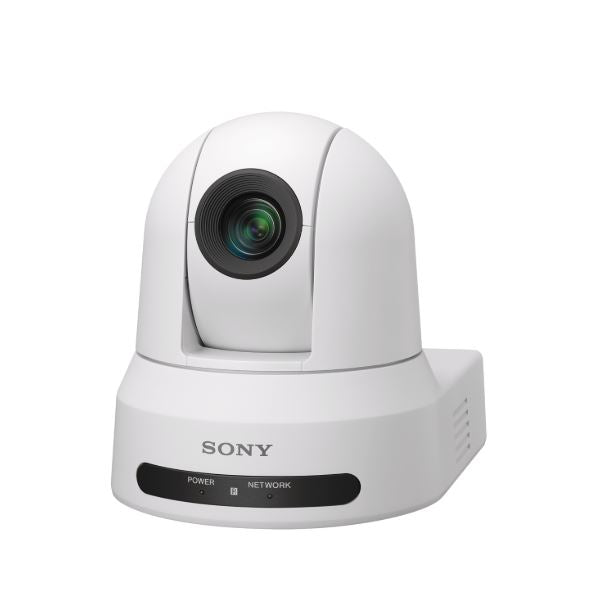

Sony SRG-X120/W 1080p PTZ Camera with HDMI, IP & 3G-SDI Output (White)

SKU: SRGX120/W | UPC: 027242918153
Authorized Dealer Authorized Sony Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$2,049.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Sony SRG-X120/W 1080p PTZ Camera with HDMI, IP & 3G-SDI Output (White) $2,049.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Full HD 1080p60 Video
  • 12x Optical Zoom
  • 70° Wide Field View
  • SDI HDMI IP Outputs
  • Optional UHD 4K Upgrade
Complete Your Solution
e69f9bed9b944781b70e93c5e14ea828
Sony

Sony SRG-X120/W 1080p PTZ Camera with HDMI, IP & 3G-SDI Output (White)

$2,049.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.5 type ExmorR CMOS

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

2160 (*1)/29.97p, 25p, 23.98p (HDMI and IP only) 1080/59.94p, 50p, 29.97p, 25p, 23.98p 1080/59.94i, 50i 720/59.94p, 50p

N/A

Signal To Noise Ratio

N/A

N/A

Gain

Auto/Manual (0 to +48 dB) (High Sensitivity On)

N/A

Shutter Speed Range

1/1 to 1/10000 sec (59.94 Hz system) 1/1 to 1/10000 sec (23.98 Hz system) 1/1 to 1/10000 sec (50 Hz system)

N/A

Exposure Control

Auto/Manual/Priority AE (Shutter, Iris)

N/A

White Balance

Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual

N/A

Image Stabilization

Yes

N/A

Image Flip

Yes

N/A

ICR

N/A

N/A

Sync

INT

N/A

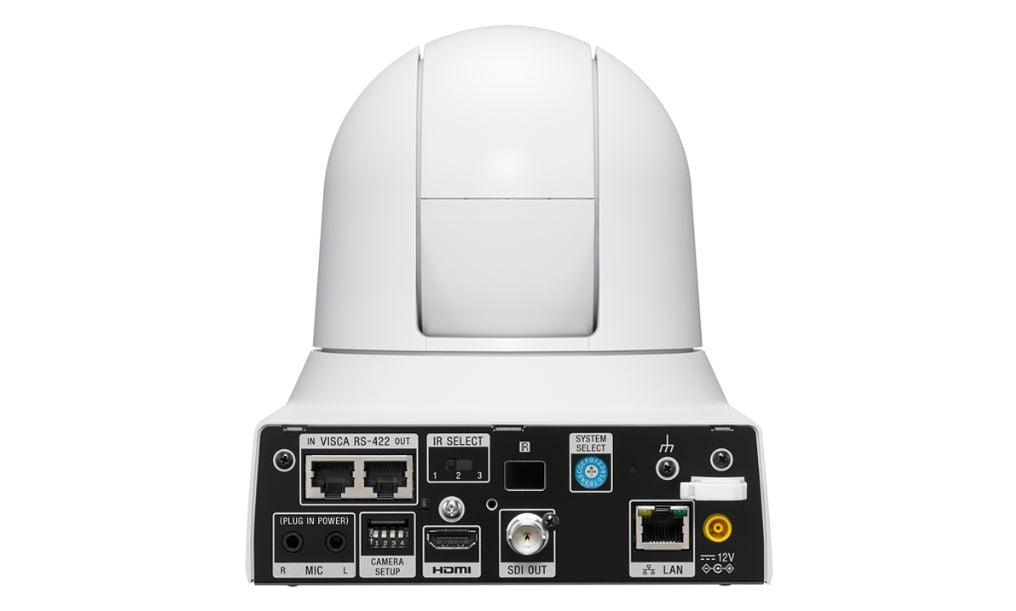

Output

3G-SDI x1, HDMI x1, IP (streaming) x1

N/A

Audio Input

Mini-phone (φ3.5mm) x2, (Mic/Line Selectabe)

N/A

Audio

Embedded Audio in IP Streaming

N/A

Camera Control

VISCA RS-422 RJ45 (In/Out) VISCA over IP RJ-45

N/A

Focal Length

f=4.4mm (Wide) to 52.8mm (Tele) F2.0 to F3.7

N/A

Minimum Object Distance

80 mm (Wide)~ 400 mm (Tele)

N/A

Pan Angle

Pan: ±170°

N/A

Tilt Angle

Tilt: +90°/-20°

N/A

Pan Speed

Tilt: 126°/s

N/A

Tilt Speed

Pan: 300°/s

N/A

Presets

256 (CGI) 100 (VISCA)

N/A

Operating Temperature

0 °C to 40 °C 32 °F to 104 °F

N/A

Power

DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)

N/A

Optical Zoom

12x

N/A

TAA Compliant

N/A
