Product Summary

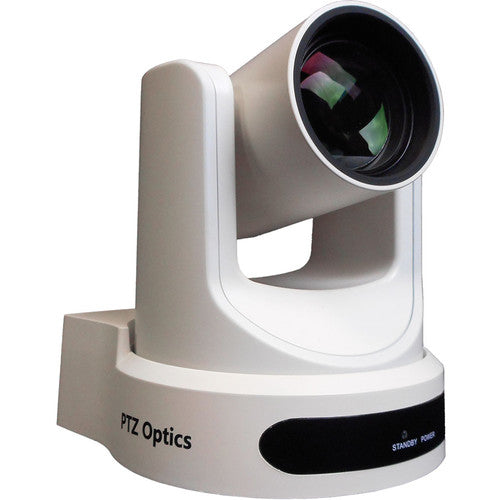

PTZOptics PT12X-USB-WH-G2 Videoconferencing PTZ Camera (White)

The PTZOptics PT12X-USB-WH-G2 12X-USB Gen2 PTZ Camera is a professional Full HD pan-tilt-zoom camera designed for video conferencing, live streaming, education, corporate meetings, houses of worship, and other professional AV applications. Finished in white, this second-generation PTZOptics camera features a 1/2.7" CMOS sensor, USB 3.0 connectivity, and video capture at up to 1080p60/50 for smooth, detailed conferencing and streaming.

Compared with the previous generation's maximum 30 fps capability, the Gen2 platform supports higher frame rates while adding H.265 and MJPEG streaming alongside H.264, providing greater flexibility for modern network video workflows.

Full HD 1080p60/50 Video

The PT12X-USB-WH-G2 delivers Full HD video at up to 1080p60/50, producing smooth motion and clear imagery for presentations, lectures, meetings, and live events.

Imaging Features

  • 1/2.7" CMOS image sensor
  • Full HD video up to 1080p60/50
  • 0.5 lux minimum illumination
  • Professional motorized pan, tilt, and zoom
  • White housing for discreet installations

Its low-light capability makes the camera suitable for conference rooms, classrooms, auditoriums, and other spaces with varying lighting conditions.

Optical Zoom for Flexible Framing

The PT12X-USB-WH-G2's motorized optical zoom provides the flexibility needed to capture wide room views as well as tighter shots of presenters and meeting participants.

Combined with remote pan and tilt operation, the camera can cover multiple areas of a room from a single fixed installation point, making it well suited for conferencing, education, and presentation environments.

USB 3.0 for HD Web Conferencing

A USB 3.0 output allows the PT12X-USB-WH-G2 to connect directly to a compatible computer, making it an excellent choice for software-based HD video conferencing and streaming systems.

USB connectivity simplifies integration into conference rooms, classrooms, and other environments where a computer serves as the primary conferencing platform.

Flexible IP Streaming

The Gen2 platform expands network streaming capabilities with support for multiple video compression formats.

Supported Video Compression

  • H.265
  • H.264
  • MJPEG

Support for multiple codecs provides greater flexibility when integrating the camera into different IP streaming and professional AV workflows.

Remote Pan, Tilt, and Zoom Control

Motorized PTZ functionality allows operators to remotely reposition the camera and adjust framing without physically accessing the unit. This makes it easy to follow presenters, focus on individual participants, or switch between different areas of a meeting or presentation space.

PTZOptics PT12X-USB-WH-G2 Videoconferencing PTZ Camera

SKU: PT12XUSBWHG2 | UPC: 53176516042
Authorized Dealer Authorized PTZOptics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,599.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
PTZOptics PT12X-USB-WH-G2 Videoconferencing PTZ Camera $1,599.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Full HD 1080p60 Video
  • 12x Optical Zoom
  • USB 3.0 Video Output
  • H.265 Network Video Streaming
  • 0.5-Lux Low-Light Performance

Best For

  • 🎓 Education
  • 🏢 Corporate Collaboration
  • ⛪ House of Worship
  • 🏛️ Government

Technical Details

Specifications

Resolution
4K
Optical Zoom
12x
Pan Angle
±170°
Tilt Angle
Up: 90° Down: 30°
Output
1 x USB 3.0 (type B, female) 1 x HDMI (1.3) 1 x RJ45 (10 m/100 m adaptive Ethernet port) 1 x 3.5 mm Component
Audio Input
1 x 3.5 mm line in (for embedding into IP stream only)
Power
Input: 12 VDC (10.8 - 13.0 VDC)
panasonic-aw-hn38hwpj-22x-zoom-ptz-camera-white
PTZOptics

PTZOptics PT12X-USB-WH-G2 Videoconferencing PTZ Camera

$1,599.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.7" CMOS progressive, 2.12 MP

N/A

Resolution

4K

N/A

Signal Sysyetm

NTSC, PAL

N/A

Signal To Noise Ratio

-

N/A

Gain

-

N/A

Shutter Speed Range

1/30 - 1/10000 sec

N/A

Exposure Control

-

N/A

White Balance

-

N/A

Image Stabilization

-

N/A

Image Flip

-

N/A

ICR

-

N/A

Sync

-

N/A

Output

1 x USB 3.0 (type B, female) 1 x HDMI (1.3) 1 x RJ45 (10 m/100 m adaptive Ethernet port) 1 x 3.5 mm Component

N/A

Audio Input

1 x 3.5 mm line in (for embedding into IP stream only)

N/A

Audio

-

N/A

Camera Control

1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance) 1 x RS-232 output

N/A

Focal Length

Integrated 4.4 - 88.5mm, f/1.8 - f/2.8

N/A

Minimum Object Distance

-

N/A

Pan Angle

±170°

N/A

Tilt Angle

Up: 90° Down: 30°

N/A

Pan Speed

-

N/A

Tilt Speed

-

N/A

Presets

Up to 64 presets (255 presets via RS-232)

N/A

Operating Temperature

23 to 104°F (-5 to 40°C

N/A

Power

Input: 12 VDC (10.8 - 13.0 VDC)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.5 lux at f/1.8, AGC on

N/A

Optical Zoom

12x

N/A

TAA Compliant

N/A
