Product Summary


  • 1/3" CMOS Sensor (Approximately 2.5 MP)

  • Lens 3.7mm

  • 3G-SDI, HD-SDI, HDMI Video Output



  • 2.5 Megapixel 1/3-inch CMOS Sensor

  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)

  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras

  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)

  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p

  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps

  • Camera will adjust to Resolution & Framerate of Sync source

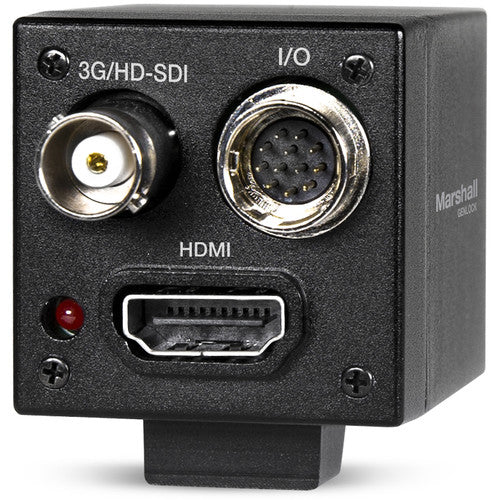

  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel

  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TRS Mic/Line level (selectable) input with 2.5V power

  • Captures sharp & vivid color images at 0.2lux (low light sensitive)

  • New WDR function adjusts automatically to bright and dark areas in FOV

  • Audio Mic/Line level audio embedding w/ 2.5V power supplied

  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)

  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)

  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness

  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2

  • Includes 12V power supply in box

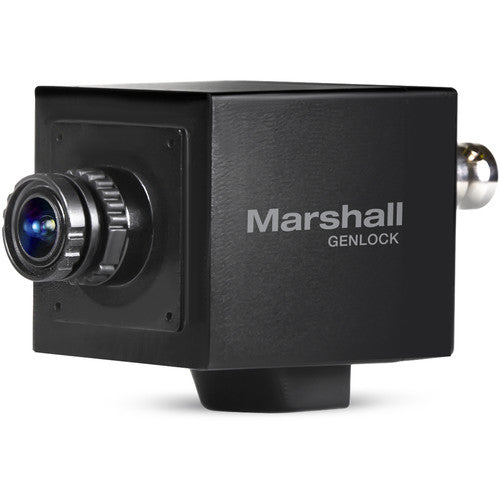

Marshall Electronics next generation Miniature GENLOCK CV565-MGB PRO-Series Camera adds the convenience of Signal Sync at camera level to ensure seamless switch transitions between cameras on location.



Using Tri-Level Sync the CV565-MGB locks 3G/HD video signals (genlock) up to 1920x1080p @ 59.94/50/60 frames per second, as well as 1920x1080i @ 59.94/50/60fps and 1280x720p @ 59.94/50/60fps. Also featuring a 3.5mmTRS Mic/Line level (selectable) input with 2.5V power and broadcast convenient HDSDI/3GSDI (BNC) & HDMI (v1.3) simultaneous outputs. Built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.9 7/25fps.



New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry leading low power consumption draws very low power in full-HD resolutions. CV565-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall Pro-Series Cameras continue to establish a broadcast standard for POV cameras with ease of use and broadcast centric feature sets.

Marshall CV565-MGB 2.5MP 3G/HD-SDI/HDSDI/HDMI Full-HD Miniature GENLOCK POV Camera

SKU: CV565MGB | UPC: 401752180512
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$699.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall CV565-MGB 2.5MP 3G/HD-SDI/HDSDI/HDMI Full-HD Miniature GENLOCK POV Camera $699.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>1/3" CMOS Sensor (Approximately 2.5 MP)</li>\n <li>Lens 3.7mm</li>\n <li>3G-SDI, HD-SDI, HDMI Video Output</li>\n</ul>

Technical Details

Specifications

Resolution
HD 1080
Optical Zoom
3x
Output
3G-SDI SMPTE 424M (2.97 Gb/s),HD-SDI SMPTE 292M (1.485 Gb/s),HDMI (1.3 Compliant)
Power
Operating: 14 to 122 °F / -10 to 50 °C
ab6b14af57ce4344bf833c8a50923f6b
Marshall Electronics

Marshall CV565-MGB 2.5MP 3G/HD-SDI/HDSDI/HDMI Full-HD Miniature GENLOCK POV Camera

$699.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/3" CMOS Sensor (Approximately 2.5 MP)

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

3G-SDI SMPTE 424M (2.97 Gb/s),HD-SDI SMPTE 292M (1.485 Gb/s),HDMI (1.3 Compliant)

N/A

Audio Input

N/A

N/A

Audio

Line Level Input (1 Vrms) 2.5 V bias Bit Depth: 32/24/20/16 Sample Rate: 48 kHz

N/A

Camera Control

RS-485 PELCO-P/D Sony-VISCA Protocol 8-Bit Data, 1 Stop Bit, No Parity, 2400~115200 bps

N/A

Focal Length

ens MountM12 Lens 3.7mm

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

Operating: 14 to 122 °F / -10 to 50 °C

N/A

Power

Operating: 14 to 122 °F / -10 to 50 °C

N/A

Power Consumption

N/A

N/A

Minimum Illumination

Color: 0.2 Lux B&W: 0.1 Lux DSS On: 0.005 Lux

N/A

Optical Zoom

3x

N/A

TAA Compliant

N/A
