Product Summary

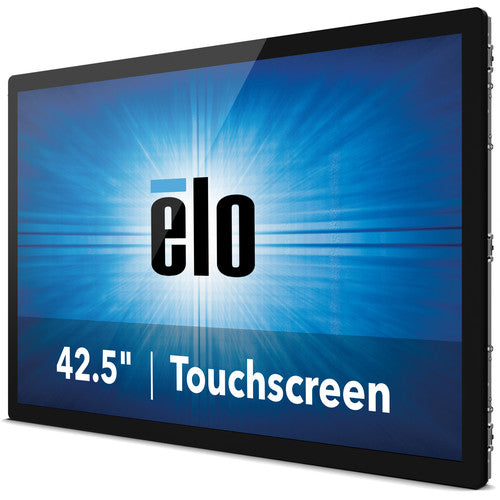

Elo Touch 4343L 42.5" Open-Frame Touchscreen Display

The Elo Touch 4343L 42.5-inch Open-Frame Touchscreen Display delivers commercial-grade performance, exceptional touch accuracy, and a slim open-frame design for interactive kiosk and embedded applications. Featuring a Full HD 1920 × 1080 display, TouchPro® PCAP technology, and support for up to 12 simultaneous touch points, the 4343L provides a responsive, smartphone-like touch experience ideal for high-traffic public environments.

Designed for continuous commercial operation, the 4343L features an edge-to-edge glass surface, touch-through-glass capability, multiple mounting options, and a rugged design tested to meet impact resistance standards. Its thin 2.6-inch profile makes it easy to integrate into kiosks, gaming machines, retail displays, transportation systems, and hospitality installations.

Brilliant Full HD Display

Deliver vibrant, high-impact visuals.

  • 42.5-inch commercial LCD display
  • 1920 × 1080 Full HD resolution
  • 450-nit brightness (387 nits with touch)
  • 1100:1 contrast ratio
  • 178° wide viewing angles

The Full HD display produces crisp text, vivid colors, and excellent readability, even in demanding commercial environments.

TouchPro® PCAP Technology

Responsive multi-touch performance.

  • Projected Capacitive (PCAP) touchscreen
  • Up to 12 simultaneous touch points
  • Fast, accurate, drift-free touch response
  • Anti-friction glass surface
  • Touch-through-glass capability available

TouchPro® technology delivers smooth, precise interaction similar to modern smartphones and tablets.

Slim Open-Frame Design

Built for seamless integration.

  • Ultra-slim 2.6-inch profile
  • Edge-to-edge glass architecture
  • Flush-mount compatible
  • Multiple mounting options
  • VESA 400 × 400 mounting support

The open-frame design simplifies integration into kiosks and custom enclosures while maintaining a clean, professional appearance.

Rugged Commercial Construction

Designed for demanding public environments.

  • Commercial-grade construction
  • Sealed touchscreen against dirt and dust
  • UL60950 ball-drop tested
  • IK06/IK07 impact resistance
  • 50,000-hour MTBF

Engineered for continuous use in high-traffic commercial applications with outstanding long-term reliability.

Flexible Connectivity

Integrates easily with commercial systems.

  • HDMI input
  • VGA input
  • USB touch interface
  • Integrated power supply
  • Plug-and-play compatibility

Flexible connectivity supports a wide variety of embedded systems, media players, and commercial PCs.

Energy-Efficient Performance

Lower operating costs without sacrificing quality.

  • LED backlight technology
  • Energy Star® 7.0 certified
  • Reduced power consumption
  • Low heat output
  • Commercial-grade efficiency

Designed for reliable 24/7 operation while minimizing energy usage.

Elo Touch 4343L 42.5" Full HD Open-Frame LCD Touchscreen

SKU: E220574 | UPC: 815335025372
Authorized Dealer Authorized Elo Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,499.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Elo Touch 4343L 42.5" Full HD Open-Frame LCD Touchscreen $1,499.00
Contact Us for Availability Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 42.5" LCD Display
  • TouchPro® Projected Capacitive (PCAP) Touch Technology
  • Open Frame Design
  • 1920 × 1080 Full HD Resolution
  • 450 nits Brightness (387 nits typical with PCAP)
  • 12-Point Multi-Touch

Best For

  • 🛍️ Retail / Digital Signage
  • 🏨 Hospitality

Technical Details

Specifications

Screen Size
42.5"
Native Resolution
1920 x 1080
Brightness
LCD panel: 450 nits. With TouchPro PCAP: 387 nits.
Inputs
• HDMI and VGA video inputs, as well as a USB interface for the touch functionality.
VESA Pattern
400mm x 400mm
Elo

Elo Touch 4343L 42.5" Full HD Open-Frame LCD Touchscreen

$1,499.00

Brightness

LCD panel: 450 nits. With TouchPro PCAP: 387 nits.

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

24/7

N/A

Dimensions

(W x H x D): 39.34" x 23.13" x 2.61" (999.3 mm x 587.5 mm x 66.4 mm)

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

1920 x 1080

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

HDMI and VGA video inputs, as well as a USB interface for the touch functionality.
