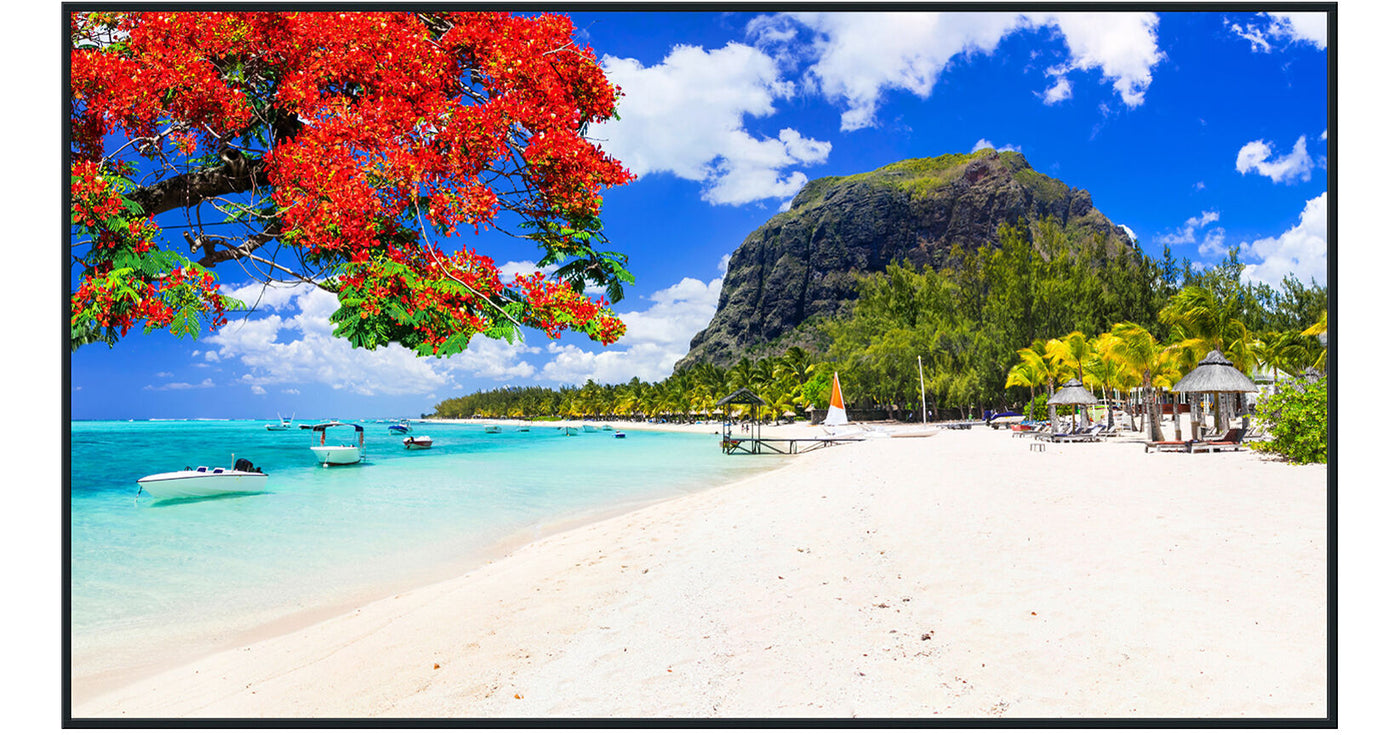

Panasonic TH-86SQ2HW Series 86" UHD 4K Commercial Monitor

Panasonic SQ2HW Series 86" UHD 4K Commercial Display Overview

Deliver bold, highly visible content with the Panasonic SQ2HW Series 86" UHD 4K Professional Display (model TH-86SQ2HW). With 700 nits of brightness, anti-glare VA panel technology, and reliable 24/7 operation, this display is purpose-built for high-visibility environments such as corporate headquarters, conference rooms, retail spaces, and educational facilities. A built-in content management system ensures seamless playback and scheduling without the need for external devices.

Exceptional Visibility in Bright Environments

With a high brightness of 700 nits and ultra-clear 4K resolution, the SQ2HW display excels in well-lit settings. Its anti-glare screen reduces reflections from overhead lighting and natural light sources, allowing for consistent visibility—even when placed near windows in classrooms or conference spaces.

Flexible Connectivity for Varied Use Cases

Equipped with versatile inputs—including three HDMI ports and a USB-C port (supporting DP Alt Mode and up to 60W power delivery)—this display can accommodate a wide array of input sources. The inclusion of the Intel® Smart Display Module (SDM) slot expands integration possibilities by allowing compatibility with PC boards and interface modules. Additionally, built-in 20W stereo speakers and a USB media player make it a powerful, all-in-one solution.

Network Control & Integration

Designed with professional integrators in mind, the SQ2HW Series supports LAN and RS-232 control, allowing for centralized device management. It is fully compatible with Crestron Connected™, Crestron XiO Cloud™, and AMX systems for streamlined integration into existing AV ecosystems.

Multi-Display Content Distribution with Screen Transfer

Through Panasonic’s Screen Transfer Ver. 2.3 software, users can broadcast content from a single PC to up to 64 displays over a LAN network. Ideal for disseminating information across classrooms, conference rooms, or training centers, the system also supports priority messaging and emergency alerts with remote power control.

Adaptive Sensors for Smart Operation

The included sensor module allows the display to automatically adjust brightness and color to match ambient lighting conditions. Additionally, it features gesture-based controls, such as content playback and power toggle by simply waving a hand over the sensor.

Built-in Whiteboard & Annotation Tools

The SQ2HW features an integrated whiteboard function. By connecting a USB mouse receiver, users can draw, annotate, and zoom directly on the display, making it a valuable tool for collaborative meetings and presentations.

USB Pass-Through for Simplified Meetings

Easily connect USB peripherals like cameras, microphones, or speakers to the display’s USB-A ports and control them directly through a single USB-C connection from your PC. This setup allows for instant meeting readiness without the need to reconfigure equipment.

Portrait Zoom Mode for Impactful Digital Signage

The Portrait Zoom feature enables dynamic signage by splitting and enlarging video content across vertically stacked displays. For example, combining three TH-65SQ2H units vertically simulates a 112" portrait display, eliminating the need for external processors and enhancing visual impact in retail spaces.

4K USB Media Playback

Enjoy PC-free 4K playback by inserting a USB drive with preloaded content. The media player supports seamless image transitions, content switching over LAN, and synchronized playback across multiple displays—ideal for simple, effective signage deployment.

Integrated Content Management Software

With the built-in USB Media Player and free Content Management Software for PC (Version 3.2), users can easily create playlists and schedule media playback (videos and still images). Playlists can be transferred to the display via USB or LAN, and synchronized multi-display playback is also supported.
