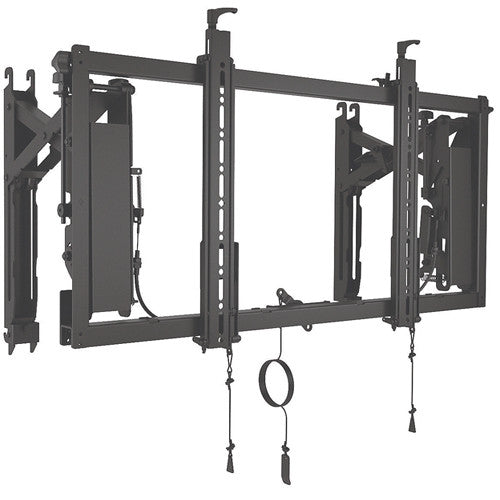

Chief LVSXU ConnexSys LVSXU Video Wall Landscape Mounting System

SKU: LVSXU  |  UPC: 841872161174
$920.80
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Supports 42 to 80" Displays Up to 150 lb\n 200 x 100 to 700 x 400mm Mount Pattern\n Extends Display 4 to 13.4" from Wall\n -2.5 to 4° of Tilt Adjustment\n Mounts to 1-5/8" Sizes of Channel Strut\n Mounts Display in Landscape Orientation\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • Supports 42 to 80" Displays Up to 150 lb

  • 200 x 100 to 700 x 400mm Mount Pattern

  • Extends Display 4 to 13.4" from Wall

  • -2.5 to 4° of Tilt Adjustment

  • Mounts to 1-5/8" Sizes of Channel Strut

  • Mounts Display in Landscape Orientation






The Chief ConnexSys LVSXU Video Wall Landscape Mounting System supports 42 to 80" displays up to 150 lb on a single strut channel for quick row-leveling. It can extend your display from 4 to 13.4" from the wall and supports 200 x 100 to 700 x 400 mm mount patterns in either landscape orientation. It provides -2.5 to 4° of tilt adjustment, 1" of height adjustment, and three levels of lateral adjustment. The ConnexSys LVSXU mount installs on a separately sold rail and provides six points of adjustment in one location at the top.










Speed




  • Hang units on a single strut channel for quick row-leveling

  • Eliminates the need for horizontal spacers

  • Vertical measurement is simply the height of the display to the next rail

  • Compatible with most 1-5/8" sizes of channel strut

  • Reduces installation time - especially for XL and recessed configurations

  • Tool-free ClickConnect latching secures displays

  • PowerZone provides 6 points of adjustment in one location at the top of the mount










Alignment




  • Height adjustment of ±1" on each interface

  • Tilt adjustment at a single pivot point protects displays from twisting

  • Depth can be set between 4 and 7.4" from the wall, providing a range of "home positions", making it suitable for recessed installations

  • Both sides adjust independently, compensating for imperfections in the wall

  • Walls can be out of alignment by up to 2" horizontally

  • Three levels of lateral adjustment: Mount left/right along rail, interface left/right along mount, and lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions










Serviceability




  • RapidDraw display release system – cord release system gently and remotely pops any screen out for easy access and can be extended up to 13.4" for service

  • Protects displays by not requiring an aggressive push to release/pop-out

  • Releases only on demand, preventing accidental pop-outs

  • Cord can be set up to pull for release from any 90° angle

  • Kickstand provides 20° of bottom tilt access










Rigidity




  • Rigid frame keeps displays where you set them, even after extending for service

  • Adjustable "home" depth position locks screens in place to maintain alignment despite accidental bumps/pushes










Additional Features




  • Accepts padlocks with up to 0.25" shank diameter

  • Each mount comes with adjustments set in the same position







Is This Right For You?


Recommendation


Chief LVSXU ConnexSys LVSXU Video Wall Landscape Mounting System
Chief

Chief LVSXU ConnexSys LVSXU Video Wall Landscape Mounting System

$920.80

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

Number of Displays Supported 1
Distance from Mounting Surface 4.0 to 13.4" / 10.2 to 34.00 cm
Dimensions 35.5 x 21.8 x 4" / 90.3 x 55.4 x 10.2 cm

N/A

VESA Pattern

200 x 100 to 700 x 400 mm
