Product Summary

The AVer CAM550 is a 4K dual-lens PTZ conferencing camera with 12× optical zoom for medium and large meeting rooms. Its two lenses have different jobs. The fixed wide-angle lens watches the room, while the motorized PTZ lens frames the people on the call. If...

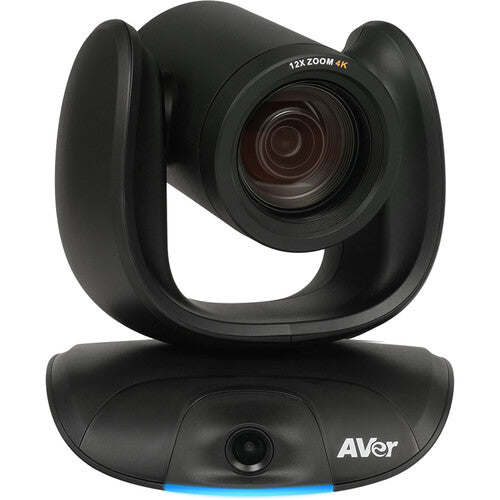

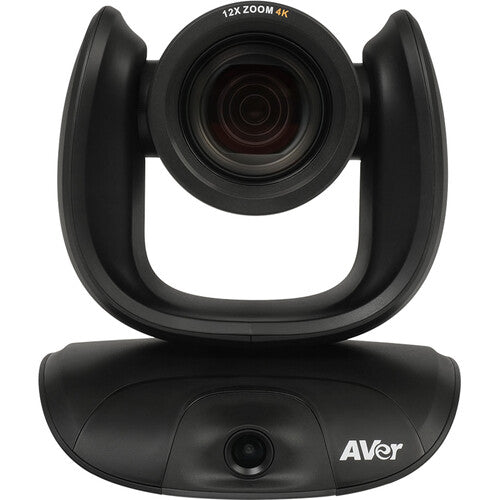

AVer CAM550 4K Dual-Lens PTZ Conferencing Camera

SKU: COMCAM550 | UPC: 848090008632
Authorized Dealer Authorized AVer Dealer
🛡️Manufacturer Warranty 3 years parts and labor on the camera, with advanced replacement during the first year under AVer’s program terms. Accessories carry a 1-year warranty.
🛠️Expert Support Pre- and post-sale assistance

$1,690.09

Fall Special | additional discount in cart
Request a Quote
AVer CAM550 4K Dual-Lens PTZ Conferencing Camera $1,690.09
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Dual-lens dynamic group framing
  • 12× optical zoom and up to 24× total zoom
  • 4K video up to 30 fps
  • Smart Gallery participant views
  • Simultaneous USB, HDMI and IP output
  • PoE+ power

Best For

  • 🎓 Education
  • 🏢 Corporate Collaboration

Expert Advice

Mount the CAM550 above the tabletop so the lower lens has a clear view of the seats. Test both ends of the table before finalizing presets. If you’re adding a local HDMI monitor, plan for a Full HD feed.

Technical Details

Specifications

Resolution
4K UHD (3840 × 2160)
Image Sensor
Sony 4K Exmor sensors in both cameras
Optical Zoom
12× optical, up to 24× total
Field of View
PTZ lens: 85° diagonal, 76° horizontal, 46° vertical. Secondary lens: 95° diagonal, 78° horizontal, 50° vertical.
Frame Rate
4K up to 30 fps. Full HD up to 60 fps.
Auto Tracking
Yes — Dynamic group framing and preset framing. Audio tracking through Preset Link requires a compatible third-party ceiling microphone.
Pan Angle
±170°
Tilt Angle
−30° to +90°
Control Protocols
VISCA over IP and browser control via Ethernet, VISCA and Pelco P/D over RS-232, included infrared remote
Streaming Support
RTSP and RTMP with H.264 or H.265 network video
Video Outputs
• USB 3.1 Gen 1 Type-B with UVC
• HDMI 1.3 at 1080p30 or 1080p60
• IP video over RJ45 Ethernet
Output
• USB video
• HDMI up to 1080p60
• and IP video
Power over Ethernet
PoE+ (IEEE 802.3at)
Power Requirements
12 V DC, 2 A via included adapter or PoE+
Power
AC 100V–240V, 50/60 Hz
Mounting Options
Included wall bracket, tripod mount, optional AVer upright ceiling or foldable TV mount
Dimensions (W × D × H)
6.7 × 6.8 × 7.5 in. (W × D × H)
Unit Weight
4.6 lb.
AVer CAM550 4K Dual-Lens PTZ Conferencing Camera
AVer

AVer CAM550 4K Dual-Lens PTZ Conferencing Camera

$1,690.09

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

4.6 lb.

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

6.7 × 6.8 × 7.5 in. (W × D × H)

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Dual Camera</dt>
<dd>
<ul>
<li class="title"><strong>PTZ optical zoom lens</strong></li>
<li>Image sensor: Sony 4K EXMOR, crystal clear in any lighting</li>
<li>Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps</li>
<li>24X Zoom*: 12X optical; 2X digital zoom</li>
<li>Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°</li>
<li>Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)</li>
<li>Lens F#: 1.8 (wide) ~ 2.8 (tele)</li>
<li>AE, white balance: auto, manual override via PTZApp 2</li>
<li>Minimum focus distance: 1.5m</li>
<li>Motorized Pan &amp; tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)</li>
<li>Preset number: 10 via IR remote, 128 via RS232</li>
<li class="title"><strong>Secondary fixed lens (AI lens)</strong></li>
<li>Image sensor: Sony 4K EXMOR</li>
<li>Frame rates and resolution set according to PTZ lens settings</li>
<li>Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°</li>
</ul>
<small>*Please use PTZApp 2 to set up 24X zoom</small>
<small>*Please don't put the CAM550 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Innovative features</dt>
<dd>
<ul>
<li>Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.</li>
<li>Preset framing tracks both preset area and speaker*</li>
<li>Simultaneous 3-way output: USB, HDMI and IP connections</li>
<li>Gesture control provides intuitive camera controls</li>
<li>HDMI Picture in Picture (PIP) function</li>
<li>Smart gallery** function offers great visibility for individual participant in the meeting room</li>
<li>Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology*** (One RJ45 cable transfers IP streaming to USB.)</li>
<li>Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link*** function.</li>
</ul>
<small>* Make sure preset areas are within AI lens' view.</small>
<small>** Smart gallery function will be available in Q2 2022 via FW update.</small>
<small>*** Please download PTZApp 2 to set up Smart gallery, USB virtual streaming and Preset Link functionality.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>

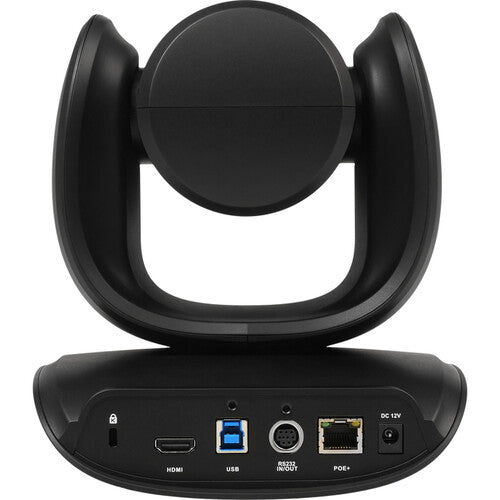

<dt>Connectivity</dt>
<dd>
<ul>
<li>USB type-B 3.1 connector, backward compatible with USB 2.0</li>
<li>12V/2A DC jack power adapter</li>
<li>Mini DIN9 for RS232 in &amp; out connection (VISCA control panel and camera daisy-chain)</li>
<li>IP (RJ45)</li>
<li>HDMI</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>HDMI &amp; PoE</dt>
<dd>
<ul>
<li>HDMI 1.3: 1080p 30fps/ 60fps</li>
<li>PoE+: 802.3at</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Video Format</dt>
<dd>
<ul>
<li>YUV, YUY2, MJPEG</li>
<li>Network video compression format: H.264, H.265</li>
<li>Network protocol: RTSP, RTMP</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>USB</dt>
<dd>
<ul>
<li>3.1 Gen 1, backward compatible with USB 2.0</li>
<li>UVC 1.1 (USB video), UVC1.5*</li>
</ul>
<small>*UVC1.5 utilizes a different platform environment and requires an extra FW upgrade. Please contact technical support for more details.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Control</dt>
<dd>
<ul>
<li>IR remote control</li>
<li>VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)</li>
<li>Remote side: VISCA over IP, IP (RJ45)</li>
<li>UVC plug and play</li>
<li>WebUI: Browser IP access via Chrome. (Not support IE)</li>
<li>OSD setting: HDMI out to TV monitor</li>
<li>PTZApp 2</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Power Supply</dt>
<dd>
<ul>
<li>AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A</li>
<li>PoE+: 802.3 at</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Free Applications for Meeting Collaboration (For Windows® and Mac® computers)</dt>
<dd>
<ul>
<li class="title"><strong>EZManager 2: Camera Central Management Software</strong></li>
<li>Remotely group FW/SW upgrades, control the camera, and manage settings</li>
<li class="title"><strong>PTZApp 2: Camera Settings Software</strong></li>
<li>Smart gallery/ Virtual USB streaming/ Preset Link</li>
<li>View live video, participant metrics, and meeting-interval information</li>
<li>Enable Skype for Business far-end control</li>
<li>Upgrade firmware automatically/manually</li>
<li>Control the camera</li>
<li>Set parameters and adjust the camera image</li>
<li>View operation status, diagnose issues</li>
<li class="title"><strong>EZLive: Broadcasting Software</strong></li>
<li>Multi-camera real-time streaming, annotating, image capturing, and video recording</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Environment Data</dt>
<dd>
<ul>
<li>Operation temperature: 0 to 40°C</li>
<li>Operation humidity: 20% to 80%</li>
<li>Storage temperature: -20 to 60°C</li>
<li>Storage humidity: 20% to 80%</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Dimensions</dt>
<dd>
<ul>
<li>Package dimensions: 253(L)*253(W)*271(H) mm</li>
<li>Package weight: 4.8KG</li>
<li>Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg</li>
<li>Remote control: 200 x 50 x 21 mm/90g</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Package Contents</dt>
<dd>
<ul>
<li>CAM550 unit</li>
<li>Power adapter (10 ft/3 m)</li>
<li>USB 3.1 type-B to type-A cable (3m)</li>
<li>Remote control</li>
<li>Mini DIN9 to mini DIN8 RS232 adapter cable</li>
<li>HDMI cable (3 m)</li>
<li>Wall mount bracket and screws</li>
<li>QR code card</li>
<li>Tripod screw</li>
<li>Drill paper</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Optional Accessories</dt>
<dd>
<ul>
<li>Mini DIN8 to D-Sub9 cable</li>
<li>Ceiling mount*</li>
<li>Foldable TV mount</li>
<li>USB2.0 type-B to type-A cable (5 m)</li>
<li>USB 3.1 Extension Cable (10 m/20 m/30 m)</li>
<li>1-Port POE+ Injector</li>
</ul>
<small>*For ceiling mounting, please purchase the AVer ceiling mount.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Security and Mount</dt>
<dd>
<ul>
<li>Kensington lock</li>
<li>1/4' tripod mounting screw</li>
<li>Camera wall-mount bracket included</li>
<li>Optional foldable TV mount</li>
<li>Optional ceiling mount</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>System Requirements</dt>
<dd>
<ul>
<li>Windows 7/10/11</li>
<li>Mac OS X 10.14 or later</li>
<li>Chromebox 3 version 94.0.4606.114 or later</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Hardware Specs</dt>
<dd>
<ul>
<li>3.2 GHz Intel® Core™ i5-4460 processor</li>
<li>4 GB RAM or more</li>
<li>USB 3.1 port, backward compatible with USB 2.0</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Warranty</dt>
<dd>
<ul>
<li>Camera: 3 years*</li>
<li>Accessories: 1 year</li>
</ul>
<small>* We offer an optional 2-year extended warranty in the European area. Please contact your local agency for details.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Compatible Applications</dt>
<dd>
<ul>
<li>Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit</li>
</ul>
</dd>
</dl>
</li>
</ul>

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

Sony 4K Exmor sensors in both cameras

N/A

Resolution

4K UHD and Full HD

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

USB video, HDMI up to 1080p60, and IP video

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

3.9–47.3 mm, f/1.8–2.8

N/A

Minimum Object Distance

Wide: 4.9' / 1.5 m

N/A

Pan Angle

±170°

N/A

Tilt Angle

−30° to +90°

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

10 via infrared remote, 128 via RS-232

N/A

Operating Temperature

32–104 °F

N/A

Power

AC 100V–240V, 50/60 Hz

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

12× optical, up to 24× total

N/A

TAA Compliant

N/A
View product

EXPERT AV HELP

Need Help Choosing the Right AV Solution?

Our AV specialists can help with product selection, system compatibility, project pricing and complete solutions for commercial, education and government applications.
