Product Summary


  • 5 Watt-Dual Voltage Transformer

  • Safety Listed to UL 1480 & UL 2043

  • Individually Packaged for Stocking & Ordering Convenience

  • Quality 10oz Dual Cone Speaker Provides Familiar Response & Performance



  • 5 Watt-Dual Voltage Transformer

  • Safety Listed to UL 1480 & UL 2043

  • Individually Packaged for Stocking & Ordering Convenience

  • Quality 10oz Dual Cone Speaker Provides Familiar Response & Performance


The speaker used in the SD72 is the next generation of Atlas high performance cone speakers, very similar to the preceding C-Series speakers. Similarity in sonic qualities ensures that contractors and designers who have worked with the AtlasIED C-Series in the past will know exactly what to expect when they use the SD72.

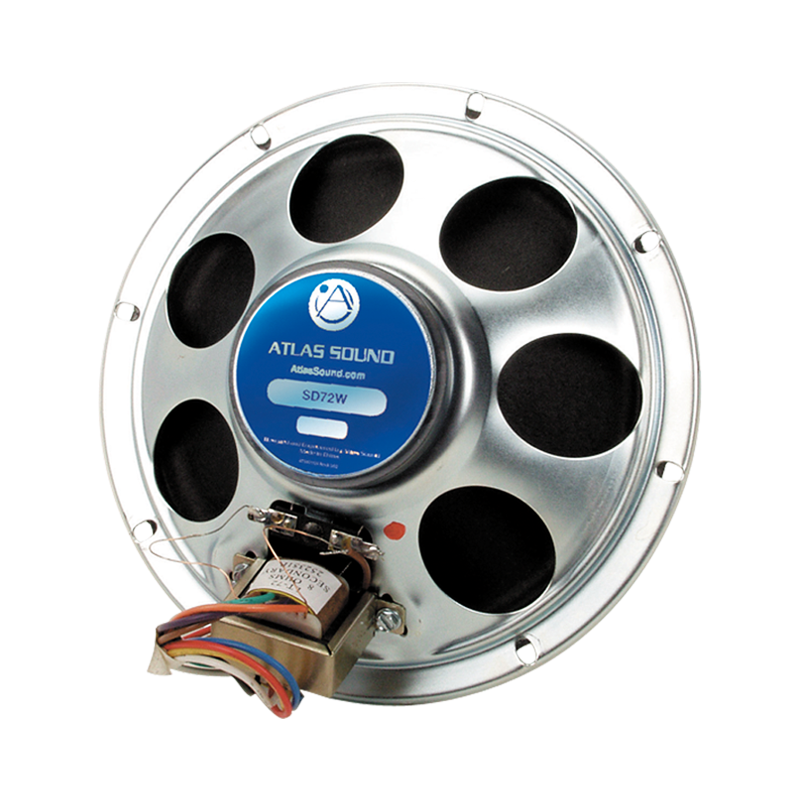

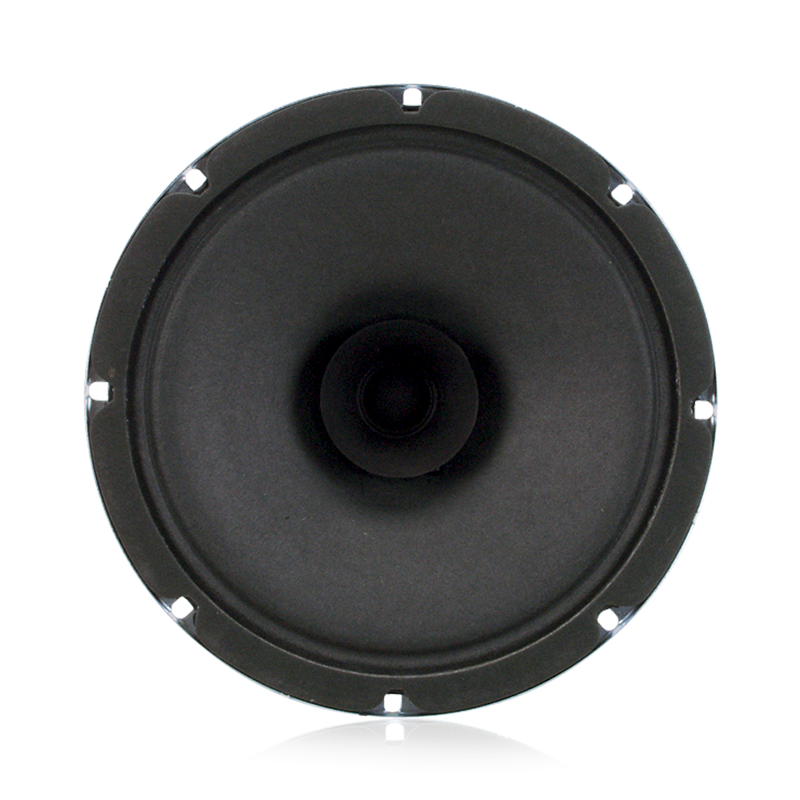

Model SD72 is a dual cone, 25 watt 8" (205mm) speaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

Model SD72 operates within a frequency response range of 45Hz - 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

Atlas Sound 8" Dual Cone In-Ceiling Speaker with 25V/70V 5-Watt Transformer SD72

SKU: SD72 | UPC: 612079179947
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$34.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 8" Dual Cone In-Ceiling Speaker with 25V/70V 5-Watt Transformer SD72 $34.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>5 Watt-Dual Voltage Transformer</li>\n <li>Safety Listed to UL 1480 &amp; UL 2043</li>\n <li>Individually Packaged for Stocking &amp; Ordering Convenience</li>\n <li>Quality 10oz Dual Cone Speaker Provides Familiar Response &amp; Performance</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type Treated Paper
Sensitivity 97dB Average
Frequency Response 55Hz - 8kHz
Power Taps .25, .5, 1, 2, & 5 Watts
Dispersion 105° (2kHz Octave Band, -6dB Points)
Diameter 8 1/8" (20.6375 cm)
Safety Listed 1480, 2043
Atlas Sound 8 Dual Cone In-Ceiling Speaker with 25V 70V 5-Watt Transformer SD72
Atlas Sound

Atlas Sound 8" Dual Cone In-Ceiling Speaker with 25V/70V 5-Watt Transformer SD72

$34.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>Speaker Type</td>
<td>Treated Paper</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>97dB Average</td>
</tr>
<tr>
<td>Frequency Response</td>
<td>55Hz - 8kHz</td>
</tr>
<tr>
<td>Power Taps</td>
<td>.25, .5, 1, 2, &amp; 5 Watts</td>
</tr>
<tr>
<td>Dispersion</td>
<td>105° (2kHz Octave Band, -6dB Points)</td>
</tr>
<tr>
<td>Diameter</td>
<td>8 1/8" (20.6375 cm)</td>
</tr>
<tr>
<td>Safety Listed</td>
<td>1480, 2043</td>
</tr>
</tbody>
</table>
</div>
