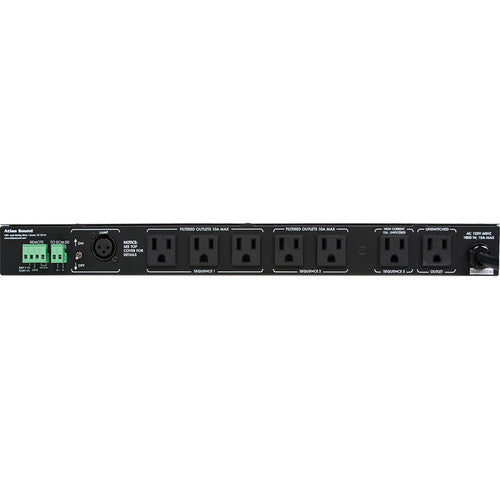

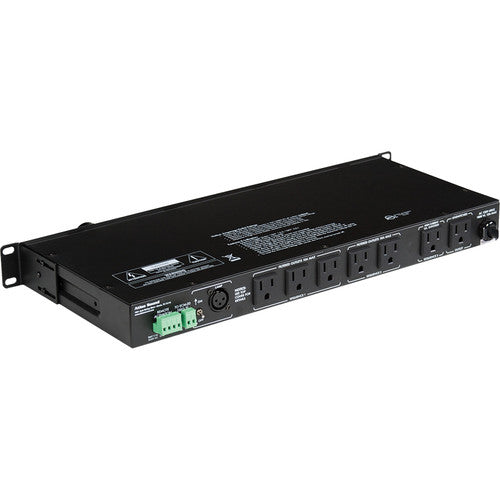

Atlas Sound 15A ECS3 Power Sequencer and Conditioner
Atlas Sound 15A ECS3 Power Sequencer and Conditioner is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
- 9 Total Outlets
- 6 Rear Outlets Sequenced in Three Stages
- 2 Front-Panel and 1 Rear-Panel Outlets
- RF and EMI Filters
- Spike & Surge Suppression, DCS Circuitry
- Front-Panel Digital AC Mains Voltmeter
- Extreme Voltage Shutdown <102V or >132V
- Pull-Out LED 2-Position Dimmer Light
- External Sequence Trigger Activation
- Circuit-Breaker Protection at 15 Amps
DUNS #074303253
IRS W-9 form
- 9 Total Outlets
- 6 Rear Outlets Sequenced in Three Stages
- 2 Front-Panel and 1 Rear-Panel Outlets
- RF and EMI Filters
- Spike & Surge Suppression, DCS Circuitry
- Front-Panel Digital AC Mains Voltmeter
- Extreme Voltage Shutdown <102V or >132V
- Pull-Out LED 2-Position Dimmer Light
- External Sequence Trigger Activation
- Circuit-Breaker Protection at 15 Amps
The ECS-3 is a versatile solution designed to fulfill various installation requirements for AC power distribution and equipment power protection. This compact 1 RU unit, with a 15A capacity, offers three sequential timing sections that can be activated either through the unit itself or remotely. Activation on the front panel is achieved using a momentary switch, while rear activation can be done via a momentary contact closure or a 5-24VDC trigger feed.
Monitoring AC mains voltage is made convenient with the precision Digital Volt Meter located on the front panel. Additionally, to provide illumination for your rack, the ECS-3 is equipped with a pull-out dimmable LED tube light on the front panel. For lighting the rear of the rack, an optional 16" gooseneck LED lamp can be connected through an XLR style socket. LED lamps are preferred for their longevity and heat reduction compared to traditional incandescent lamps, and the XLR base mounts offer superior reliability compared to commonly used BNC type bases.
In cases where a 15A AC mains power source may not be sufficient to meet the amperage demand of your system, the ECS-3 offers a sequenced 24VDC output. This output can be used to trigger other devices, such as the AtlasIED ECM-20SH 20A stand-alone AC power module, expanding the capabilities of your setup.
The ECS-3 is a comprehensive solution that combines power distribution, equipment protection, voltage monitoring, and lighting options, making it an ideal choice for various applications. Its compact size and flexible activation options ensure easy integration into different setups. Upgrade your power management with the reliable and feature-rich ECS-3 for a more efficient and organized installation.
