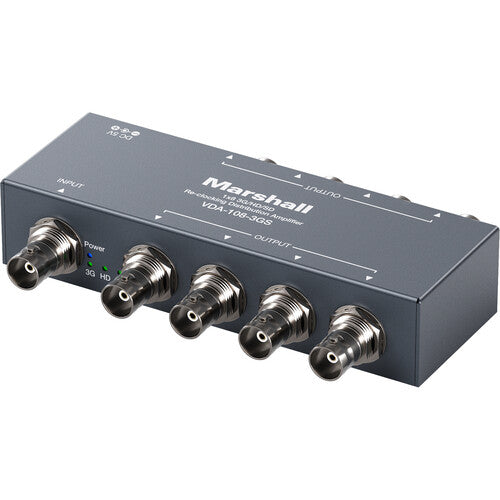

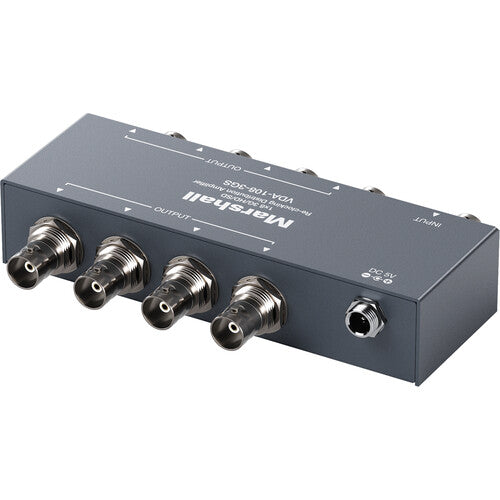

Marshall Electronics 1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier
Marshall Electronics 1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
DUNS #074303253
IRS W-9 form
π‘ Marshall Electronics VDA-108 β 1x8 3G/HD/SD-SDI Reclocking Distribution Amplifier
-
π 1x8 SDI Distribution
-

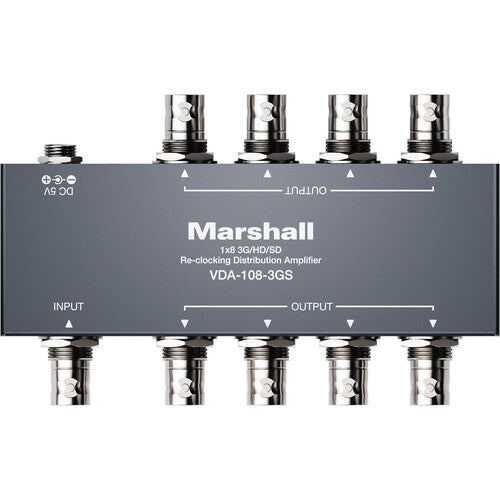

Distributes a single SDI input to eight outputs simultaneously
-
-
ποΈ Multi-Format Support
-
Supports 3G-SDI (SMPTE 424M, 425M Level A/B β up to 2.97 Gb/s)
-
Supports HD-SDI (SMPTE 292M, 296M β up to 1.485 Gb/s)
-
Supports SD-SDI (SMPTE 259M β up to 270 Mb/s)
-
-
π§ Automatic Detection
-
Auto-detects 3G/HD/SD-SDI input formats
-
Passes all ancillary data
-
-
π§ Reclocking & Cable Equalization
-
Eight separately buffered and reclocked outputs for stable signal transmission
-
Supports signal retiming and video bandwidth up to 2.97 Gb/s
-
Automatic cable equalization for long cable runs using Belden 1694A:
-
3G-SDI: >400 ft
-
HD-SDI: >667 ft
-
SD-SDI: >1000 ft
-
-
-
π‘ Status Indicators
-

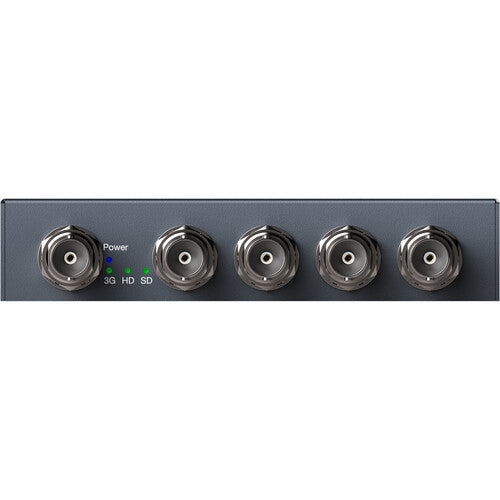

Dual-color LED displays input lock and signal rate
-
-
π Secure Power
-
Features an interlocked power supply for improved reliability in fixed installations
-
