Sony LMD-XH550MT 55" 4K 3D/2D LCD Medical Monitor

Revolution in Surgical Imaging

Sony LMD-XH Series Medical Monitors redefine surgical imaging with exceptional 4K Ultra HD visuals in both 3D (LMD-XH550MT) and 2D (LMD-XH320MT). Featuring a resolution of 3840 x 2160 pixels (16:9 aspect ratio), HDR compatibility, and Local Dimming Technology, these monitors deliver lifelike images and unparalleled precision for modern clinical environments.

Key Specifications

• Resolution: 3840 x 2160 (4K Ultra HD).
• Contrast Ratio: 1,000,000:1.
• Peak Brightness:
  • LMD-XH550MT: Over 1,500 cd/m².
  • LMD-XH320MT: Over 1,750 cd/m².
• Panel Technology: IPS LCD with anti-reflection structure.
• Orientation: Landscape.

HDR Compatibility

HLG (Hybrid Log-Gamma) Support ensures accurate HDR image reproduction, offering:

• Broader brightness ranges.
• Enhanced contrast and vibrant colors.
• True-to-life visualization for better precision during procedures.

Advanced Imaging Features

Local Dimming Technology

• Zone-Specific Backlight Control: Independently dims or brightens areas for optimal HDR performance.
• Enhanced Brightness: Redistributes power from dimmed regions to amplify bright areas, delivering more natural and lifelike visuals.

Wide Color Gamut

• BT.2020 Compliance: Covers a significantly wider color spectrum than BT.709 for superior color accuracy.
• Enables realistic visualization and detailed differentiation in medical imaging.

Anti-Reflection Panel

• Reduces glare and light dispersion for clear, high-contrast images in brightly lit environments.
• Optimized for operating rooms with minimal reflections from surgical lights.

Extensive 3D/2D Display Options

• 3D and 2D Signal Support: Compatible with HD and 4K formats.
• Input Connections: SDI (12G/3G), DisplayPort, HDMI, and DVI.
• Display Modes:
  • Side-by-side.
  • Picture-in-Picture (PIP).
  • Picture-out-Picture (POP).
• 3D Switching: Simple toggle between 3D and 2D modes via front panel controls.

Enhanced Usability

A.I.M.E.™ Technology

• Optimizes color, contrast, and shadow visibility for sharper image clarity.
• Facilitates more detailed and accurate image analysis.

Clone Output

• Outputs identical display content, including enhancements, to a second monitor or recording device.
• Supports both 4K and HD output resolutions for flexible use.

Intelligent Display Modes

• Enlarge smaller POP images with the V Full Mode for better viewing.
• Expand one or both POP images as needed for greater control.

Designed for Clinical Environments

Hygienic Design

• Smooth surfaces and small vents make cleaning and disinfection simple.
• Resilient against liquids and gels for rigorous clinical use.

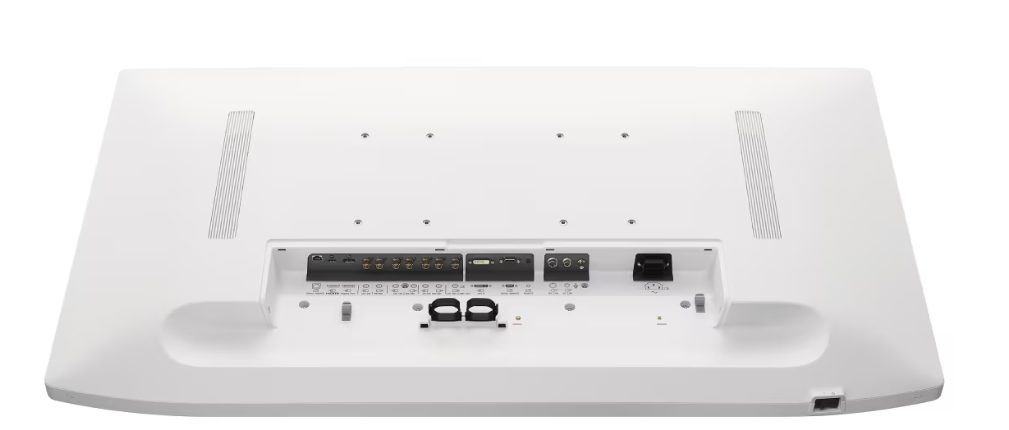

Cable Management

• All ports are downward-facing for neat and organized connections.
• Multiple cable access points ensure flexibility during installation.

User-Friendly Controls

• LED-backlit control panel highlights active buttons for easy navigation, even in low light.
• Customizable buttons for frequently used functions.

Flexible Power Options

• LMD-XH320MT: Offers AC and DC powering with an optional adapter (AC-300MD).

Optional Enhancements

• • Footswitch (FS-24): Allows hands-free control of key functions such as A.I.M.E. toggling, port switching, PIP/POP modes, and 3D/2D adjustments.
