Ricoh PJ WUL6690 WUXGA Large Venue Projector

SKU: PJ-WUL6690 | UPC: 26649326677

ADD TO CART FOR LOWER PRICE

$6,800.00

In Stock · Free Shipping to Lower 48 States

Tax-Exempt & Purchase Orders Accepted

Bulk Pricing Available

SPRING SALE | additional discount in cart

Request a Quote

Manufacturer Warranty Included
Lifetime Technical Support from OfficeWonderland
No Sales Tax for Qualified Tax-Exempt Organizations
Purchase Orders Accepted (Net 30 Available)

Key Features

\n 1920 x 1200 WUXGA Resolution\n 96000 ANSI Lumens\n 3,380,000:1 Contrast\n Full HD 3D\n

Best For

Auditoriums and Large Conference Halls
Multi-projector edge-blended video walls
Medical training facilities requiring DICOM-Sim mode

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

Net 30 Purchase Orders
Tax-Exempt Sales for Eligible Organizations
W-9 Available Upon Request

Request a Quote

Loading recommendations...

Professional Viewing Performance

The Ricoh PJ WUL6690 is a high-performance WUXGA projector designed for large venues. Featuring 9600 ANSI Lumens, it ensures vivid imagery even in brightly lit environments.

Advanced Installation and Flexibility

Equipped with a motorized lens shift (¬±55% Vertical, ¬±25% Horizontal) and 360-degree installation capability, this unit can be mounted in virtually any orientation. Its built-in edge blending allows for seamless wide-format displays using multiple units.

Long-Term Reliability

The multi-module laser light source provides up to 20,000 hours of maintenance-free operation, while the IP5X dust-resistant certification ensures the internal components remain protected in high-traffic public spaces.

Connectivity for Modern Venues

Integrate easily with HDBaseT support for 300ft+ cable runs, HDMI 2.0 for 4K inputs, and full compatibility with Extron, AMX, and PJ Link control systems.

Dimensions

5.90" x 19.13" x 14.80
Aspect Ratio

16:10 (WUXGA)
Native Resolution

1920 x 1200
Contrast Ratio

3,380,000:1
Throw Distance

4.3' - 26.5'
Lens

1.25:1 - 2.00:1

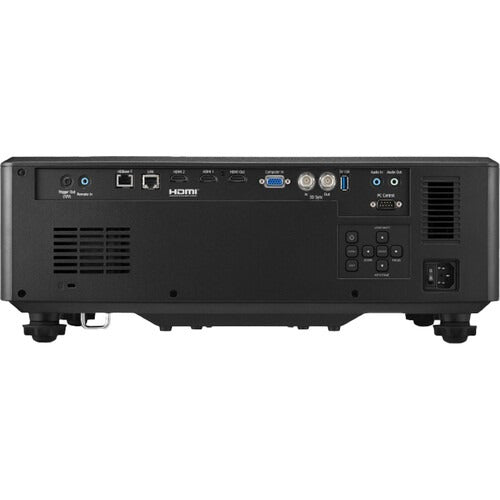

Inputs

Mini D-SUB15pin x1, HDMI(2.0) x1, HDMI(1.4) x1, BNC x1, 3.5mm mini jack x1, 3.5mm mini jack (Blue) x1
Outputs

HDMI(2.0) x1, BNC x1, Usb Type-A 5V/1.5A x1, 3.5mm mini jack x1, 12V Phone jack x1
Display Technology

DLP
Wireless Networking

Optional
Speakers

10W x 2
Economode

-
Audible Noise

34 dB
Lamp Life

20,000 hrs
Short Throw

No
Aspect Ratio

16:10 (WUXGA)
Image Size Diagonal

30-300inch
Lens Shift

Horizontal & Vertical
Data / Video Signals

720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 576p, 480p
Digital Keystone

Vertical & Horizontal
Unit Weight

29.7 lbs
Projector Methods

Front, Rear, Ceiling Mount, Table Top
Dimensions (WxDxH)

5.90" x 19.13" x 14.80"
Dimensions

5.90" x 19.13" x 14.80
Aspect Ratio

16:10 (WUXGA)

We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval. Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:

Contact name, email address & telephone number Note: An email address is required to receive order/shipping confirmation
Billing name & address
Shipping address
Tax ID# (for tax Exempt orders, please see TAX EXEMPT section below)
Purchase Order Number
Date needed (please note: Up to 3-5 days are needed to process requests. This does not include delivery time.
Authorized signature (Your purchase order can only be accepted when accompanied by the signature of the officer authorizing the purchase and when submitted on your organization's official purchase order form or letterhead.)
Purchase orders must be in excess of $75 (excluding shipping). All prices are in USD$
Sales tax is charged only on orders shipping to the state of FL

Please email completed purchase orders to Sales@OfficeWonderland.com.

You can also fax it to: (786) 916-5963 or mail it to:

OfficeWonderland.com
Attn: Purchase Orders
20400 NE 16th PL
North Miami Beach, FL 33179

Once we have all the information requested above, an account and order will be created.

Please note the following:

Please allow 3-5 days for us to process requests
Confirmation emails are sent when the order is placed & another email is sent when the order ships
Please make all checks payable to OfficeWonderland Ltd. at the address referenced above.
Payments on PO orders are due within 30 days
You can download a copy of our W-9

Looking for the W-9 form?

Click here to download the latest version of the IRS W-9 form.

Terms

We operate with a “Net 30 Day" payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.

Frequently Asked Questions

What is the best high-brightness WUXGA projector for professional venue installations?

The Ricoh PJ WUL6690 is one of the best choices for professional auditoriums and large-scale events where ambient light is a factor. Its 9600-lumen output ensure clarity in massive rooms while the laser light source minimizes maintenance overhead.

Is This Right For You?

Ideal If

You need to project in rooms with high ambient light (9600 lumens)
You require motorized lens shift for precise alignment in difficult mounting spots
You want to avoid the cost and downtime of traditional lamp replacements

Not Ideal If

You need a lightweight, portable unit for travel
You are looking for a dedicated home theater projector for dark rooms
Your budget is for an entry-level classroom projector

Recommendation

Choose the WUL6690 if you need maximum brightness and the ability to merge multiple projectors into a single image.
9600 lumens significantly outshines standard 4000-5000 lumen office projectors
Laser source provides 20,000 hours of life compared to 3,000-5,000 hours for lamp-based models
Features professional-grade HDBaseT and BNC inputs rarely found on consumer units

This projector is specifically engineered for large venues, university lecture halls, house of worship sanctuaries, and medical imaging facilities requiring DICOM-simulation modes.

While powerful, this unit weighs nearly 30 lbs and is designed for fixed installation rather than portable use.
