• Marshall Electronics CV730-BK UHD 4K60 IP PTZ Camera with 30x Optical Zoom (Black)

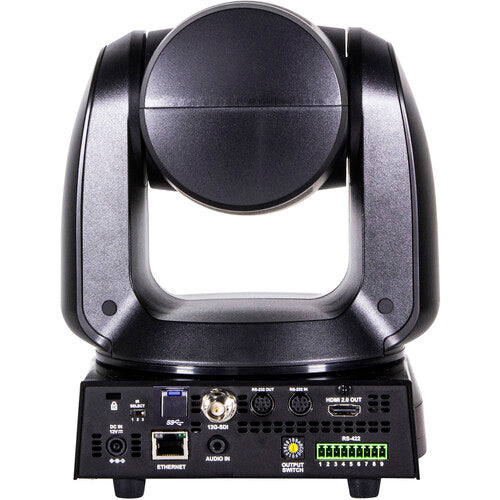

  • Marshall Electronics CV730-BK UHD 4K60 IP PTZ Camera with 30x Optical Zoom (Black) input output

Marshall Electronics CV730-BK UHD 4K60 IP PTZ Camera with 30x Optical Zoom (Black)

SKU: CV730BK  |  UPC: 801813226140
$2,208.75
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Up to UHD 4K/59.94 Capture and Output\n Simultaneous 12G-SDI, HDMI & IP Outputs\n 30x Optical Zoom\n Built-In Tally Light\n PoE++\n RS-232 and RS-422 Control for 7 Cameras\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • Up to UHD 4K/59.94 Capture and Output

  • Simultaneous 12G-SDI, HDMI & IP Outputs

  • 30x Optical Zoom

  • Built-In Tally Light

  • PoE++

  • RS-232 and RS-422 Control for 7 Cameras

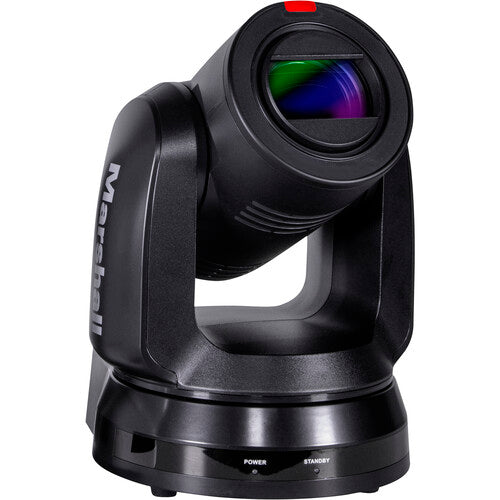

Marshall's CV730 UHD 4K60 IP PTZ Camera, in black, is an indoor camera with a 30x optical zoom lens suitable for everything from small meeting rooms to large event spaces such as auditoriums. A tally lamp is built in right above the lens for applications requiring tally for your talent. Featuring an 8.5MP 1/1.8" sensor, the CV730 captures up to UHD 4K/59.94 resolution video and provides simultaneous 12G-SDI, HDMI, and IP outputs.

While a power supply is included, a single Ethernet cable, sold separately, can be used for power, control, video, and audio, or for just power and control while the video signal is sent via the other outputs. Via RS-232 input and output ports or an RS-422 port, up to seven cameras can be linked up in a serial connection, and you can remotely adjust and match settings such as iris, pan, tilt, zoom, white balance, exposure, pedestal, and many more over long distances or during setup. Auto settings can also be set up to track environmental fluctuations. Alternatively, an included IR remote control can be used to adjust settings, including selecting presets.






Key Features





Up to UHD 4K resolution capture and output at up to 59.94 fps







Simultaneous 12G/6G/3G-SDI, HDMI 2.0, and IP (HEVC/H.265) outputs







30x optical zoom (6.5 to 202mm), starting at 65° horizontal FOV







3.5mm TRS stereo audio mic/line input







RS-232 and RS-422 ports for controlling up to seven cameras







340° pan and 120° tilt range







USB 3.0 port for connecting to your computer for USB signal images







Dip switch on the rear





Is This Right For You?


Recommendation


Marshall Electronics CV730-BK UHD 4K60 IP PTZ Camera with 30x Optical Zoom (Black)
Marshall Electronics

Marshall Electronics CV730-BK UHD 4K60 IP PTZ Camera with 30x Optical Zoom (Black)

$2,208.75

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1-Chip 1/1.8" CMOS Sensor

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Image Flip, Mirror (Vertical)

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

Focus Control : Autofocus Manual Focus, Supported Control Protocols : Pelco-D, RS-232, RS-422, VISCA

N/A

Focal Length

6.5 to 202mm

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

340°

N/A

Tilt Angle

120°

N/A

Pan Speed

5 to 300°/sec

N/A

Tilt Speed

5 to 300°/sec

N/A

Presets

255

N/A

Operating Temperature

N/A

N/A

Power

PoE Support : PoE++ 802.3bt, Power Connectors 1 x Barrel / Coaxial

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

30x

N/A

TAA Compliant

N/A
