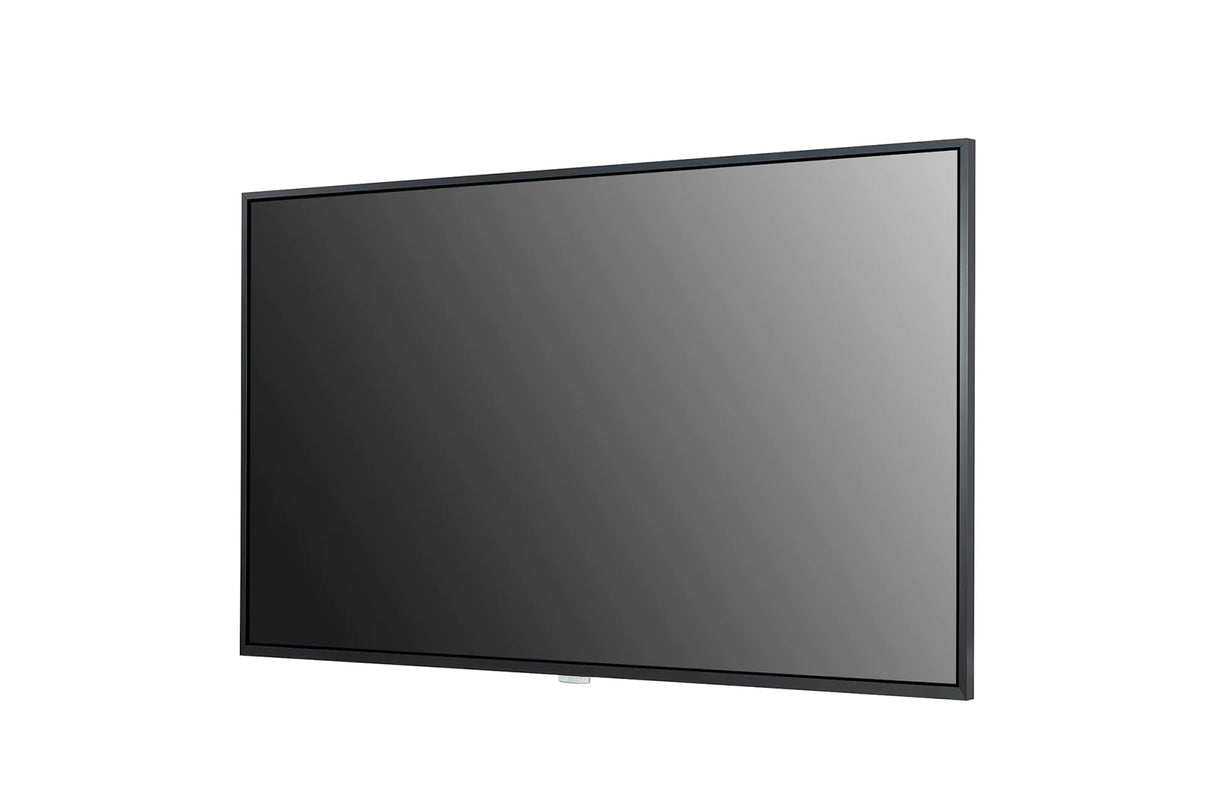

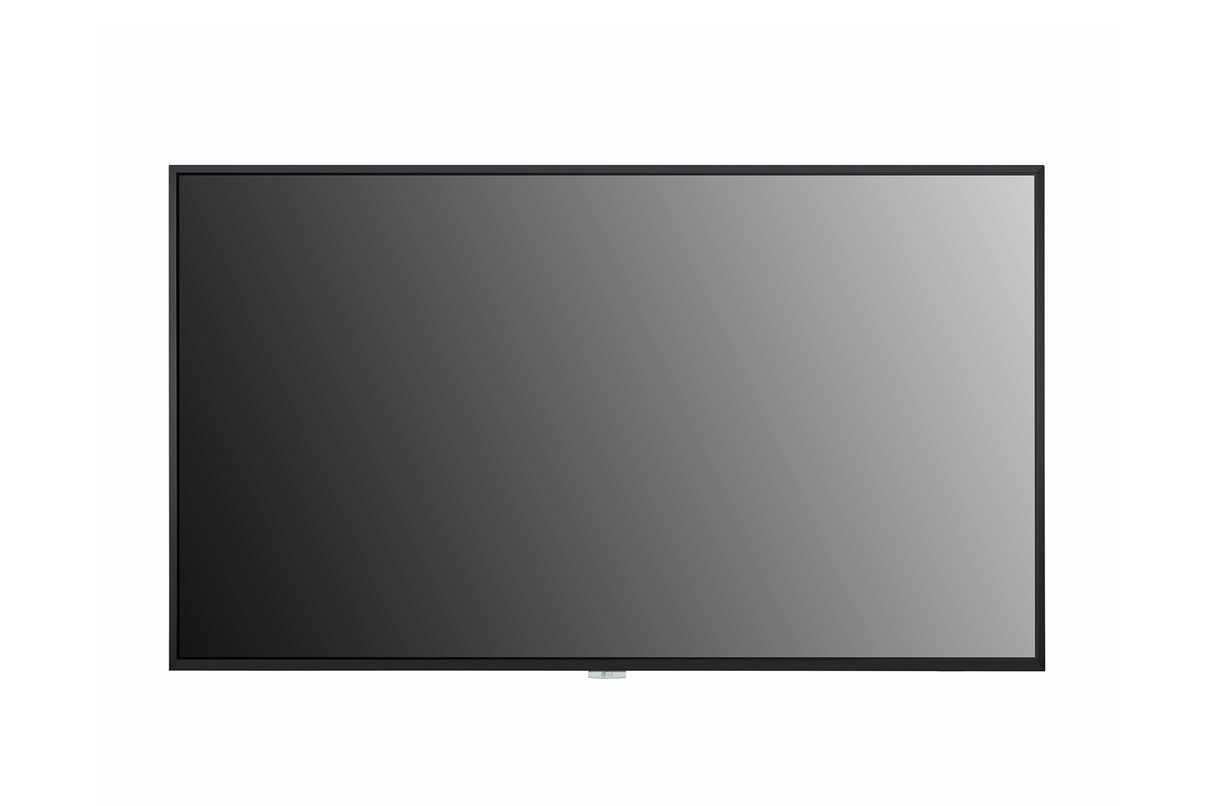

LG 49UH7F-H 49” Series IPS UHD Slim Digital Display
LG brand logo
Authorized Dealer

Need expert advice?
Ask the professionals

Share this item !


Visit us on social media

LG 49UH7F-H 49” Series IPS UHD Slim Digital Display


LG brand logo
Authorized Dealer

Your Price


Need Help? Call Us 800-211-2718


Condition: New

Product Highlights

  • 3840 x 2160 (UHD) Resolution
  • 700 Nit Brightness
  • 24/7 Operation Run Time
  • Landscape/Portrait Orientation
$0.00 Tax collected outside of Florida
FREE Shipping
Product Highlights
  • 3840 x 2160 (UHD) Resolution
  • 700 Nit Brightness
  • 24/7 Operation Run Time
  • Landscape/Portrait Orientation

Share this item !

Why Buy From Us ?
Click above to submit a purchase order
DUNS #074303253

Included In The Box

  • 49UH7F-H Digital Signage Display
  • Remote Control
  • 2 x Batteries
  • Power Cord
  • Quick Service Guide
  • HDMI Cable
  • Regulation Book
  • Phone to RS232C Adapter

Visit us on social media

Key Feature

  • Brightness(Typ.) : 700 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker

LG UHD Signage

LG 49UH7F-H LG UHD Signage
* All images in this web page are for illustrative purposes only and may differ from the actual product.
LG 49UH7F-H Clear View with Non-glare Coating

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH7F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
* The images listed are for reference only and the actual reflection can be different.
LG 49UH7F-H ULTRA HD Resolution

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

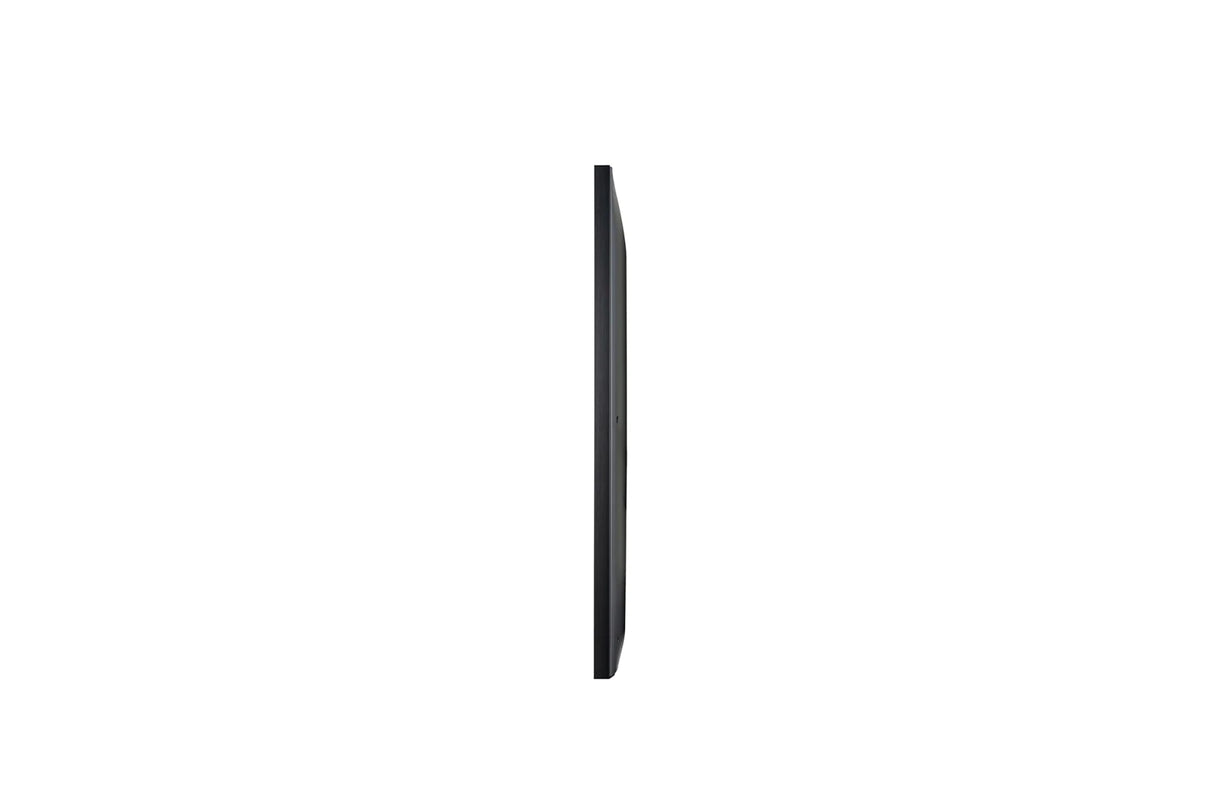

LG 49UH7F-H Narrow Bezel & Slim Depth

Narrow Bezel & Slim Depth

This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
LG 49UH7F-H Detachable Logo and Built-in Speaker

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
LG 49UH7F-H IP5x Certified Design

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
LG 49UH7F-H 30° Tilting Installation

30° Tilting Installation

For the user’s comfort viewing, UH7F-H supports the installation with 30 degrees of tilt* when it is installed at high places.
* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)
LG 49UH7F-H Auto Screen Rotation

Auto Screen Rotation

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn’t required. The direction of OSD and background contents will be already set when you turn on a display at first.
LG 49UH7F-H Fine Adjustment

Fine Adjustment

This series is equipped with a “horizontal sensor” which shows users how the device is tilt, so that it can be precisely installed.
LG 49UH7F-H High-Performance with webOS

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
LG 49UH7F-H Various Sensor Connection

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. Also, the cost for additional software or media players can be saved by reducing the needs for purchasing them.
* LG does not provide any external sensors but webOS platform. External sensors needs to be purchased separately and tested for compatibility with webOS platform.
LG 49UH7F-H Compatible with AV Control System

Compatible with AV Control System

The UH7F-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
LG 49UH7F-H Compatible with Video Conference System

Compatible with Video Conference System

For the optimum visual meeting, the UH7F-H series has supported its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
* Using an HDMI cable connection

Contrast Ratio 1000:1
Viewing Angle 178° Horizontal / 178° Vertical
Response Time 8ms
Sound Output Yes
Screen Size (Diagonal) 49"
Dimensions w/ Stand (W x H x D) 43.3 x 27.3 x 11.4 in, 1098.6 x 694.3 x 290.0 mm
Dimension w/o Stand (WxHxD) 43.3 x 25.4 x 1.6 in, 1098.6 x 644.5 x 39.9 mm
Inputs HDMI (3) HDMI1/HDMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4, USB2.0 Type A (1), IR In (1), RS232C In (1), 4-pin 3.5mm
Outputs Audio Out (1), RS232C Out (External Control) (1), 4-pin 3.5mm
Weight without Stand 34.0 lbs/15.4kg
Weight with Stand 35.3 lbs/16.0kg
Monitor Configuration Digital Signage
Brightness (cd/m) 700
Native Resolution 3840 x 2160
Display orientation Landscape & Portrait
Duty Cycle (Hours of Use) 24/7
WiFi Yes
Communication Port
Refresh rate 60Hz

Back Light Type Edge
Dynamic CR 500,000:1
Lifetime 50,000Hrs (Min.)
Panel Technology IPS
Aspect Ratio 16:9
Color Gamut BT709 95%
Color Depth 10 bit, 1.07 Billion colors
Surface Treatment (Haze) 28%
Bezel Color Black
Bezel Width T/R/L: 9.9mm, B: 14.4mm
VESA™ Standard Mount Interface 300 x 300
Tilt (Facedown) Max 30°
OPS type compatible Yes w/OPS Kit
IP Rating IP5X
Key Feature Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC(Compatibility may differ by equipment.), SI Server Setting, webRTC, Pro:Idiom
Operation Temperature 0 °C to 40 °C
Operation Humidity 10 % to 80 %
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption
Typ./Max. 100W / 145W
BTU (British Thermal Unit) 341.21 BTU/Hr(Typ.), 494.76 BTU/Hr(Max)
Safety CB / NRTL
EMC FCC Class “A” / CE / KC
