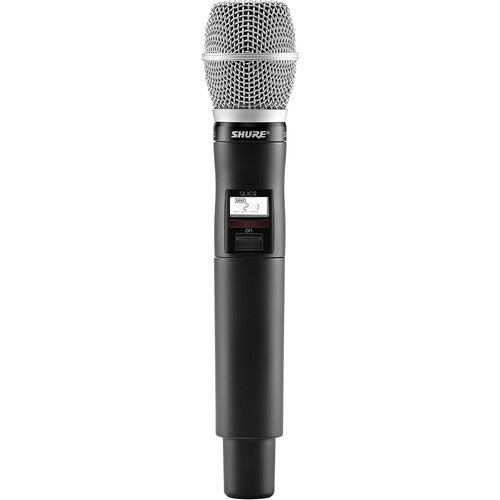

Shure QLXD2/SM86 Digital Handheld Wireless Microphone Transmitter with SM86 Capsule (X52: 902 to 928 MHz)

Shure QLXD2/SM86 Digital Handheld Wireless Microphone Transmitter

Superior Audio Quality with the SM86 Capsule

The Shure QLXD2/SM86 is a digital handheld wireless microphone transmitter that pairs seamlessly with QLX-D receivers. It features the SM86 cardioid condenser capsule, renowned for its clear vocal reproduction and tailored frequency response. The cardioid polar pattern effectively isolates the main sound source, reducing unwanted background noise, making it ideal for live vocal performances and presentations.

Extensive Tuning Range and Battery Life

The QLXD2/SM86 operates on a 26 MHz UHF tuning range, providing 1040 selectable frequencies for optimal performance with minimal interference. The transmitter offers up to 9 hours of continuous operation on two AA batteries and features a transmission range of up to 330 feet. It includes selectable RF power output settings of 1 mW and 10 mW, allowing users to adjust according to the performance environment.

Durable and Secure Design

Constructed with a rugged yet lightweight aluminum housing, the QLXD2/SM86 ensures durability while maintaining ease of use. It delivers pristine audio quality and reliable RF performance, along with AES 256-bit encryption for secure transmission. These features make it well-suited for sound reinforcement in medium-sized venues, houses of worship, and A/V installations in conference, educational, and corporate settings.

Clear, Accurate Audio with Interchangeable Capsule

• High-Resolution Audio: Provides clear, reliable 24-bit/48 kHz digital audio.


• Effective Noise Reduction: The SM86 capsule includes a two-stage “pop” filter to reduce wind and breath noise.


• Versatile Capsule Design: The interchangeable capsule design allows for easy replacement with other Shure capsules, such as SM58, KSM8, SM87A, Beta 58A, Beta 87C, and KSM9, to meet various application needs.

User-Friendly Features in a Rugged Housing

• Quick Syncing: Easily syncs with a wireless receiver via infrared at the touch of a button.


• Adjustable Input Sensitivity: Accommodates a wide range of vocal levels, from loud to soft.


• Lockout Functions: Frequency and power lockout features prevent accidental or unauthorized changes during events.


• Intuitive Interface: A backlit LCD with an easy-to-navigate menu provides quick access to frequency, group, and channel settings, as well as mute and lock status, and RF output.


• Selectable RF Output Power: Allows you to increase either the transmitter's range or the number of mics operating simultaneously.

Flexible Power Management

• Long Operation Time: Provides up to 9 hours of continuous use on two AA batteries.


• Rechargeable Options: Compatible with the optional Shure SB900A lithium-ion rechargeable battery pack, offering over 10 hours of battery life and precision metering in hours and minutes, with zero memory effect.


• Convenient Charging: External charging contacts enable docked battery charging with the SBC200 dual-docking charger (available separately).


• Remote Monitoring: The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

The Shure QLXD2/SM86 transmitter combines superior audio quality, robust construction, and user-friendly features, making it an excellent choice for clear and reliable vocal performance in various professional settings.
