SKU: CV610U3WV2  |  UPC: 801813192780

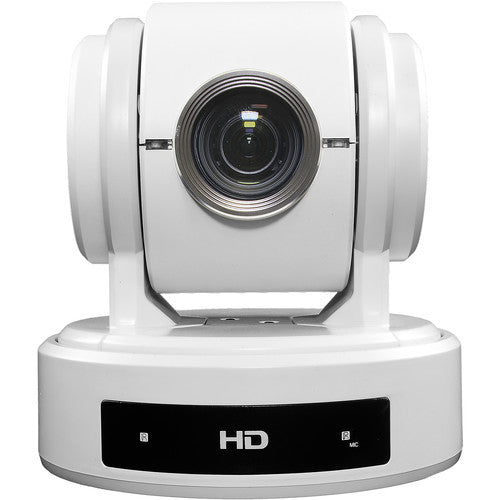

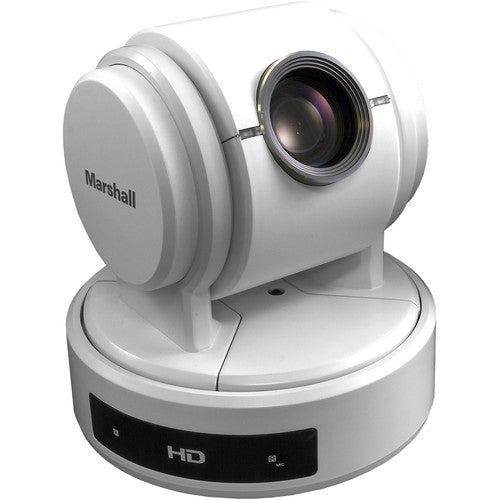

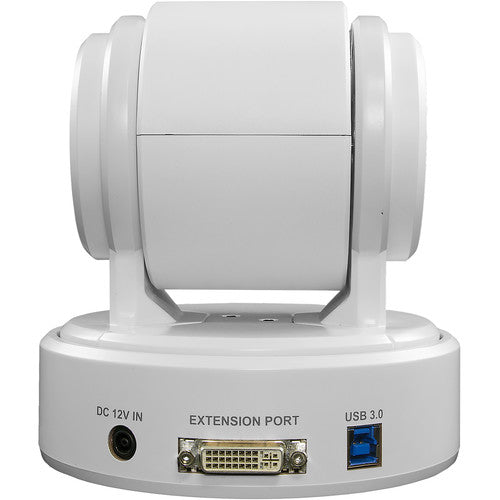

Marshall CV610-U3W-V2 Compact PTZ Camera with USB 3.0/2.0 and HDMI

$899.00
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Accessories

Marshall Electronics

Marshall VS-PTC-IP IP PTZ Camera Controller

$1,349.00
View details

Need Help? Call Us 800-211-2718

Product Highlights:
  • 1/2.8" 2MP CMOS Sensor
  • 10x Optical/12x Digital Zoom
  • Up to 1920 x 1080p60 Video Output
  • 128 Preset Positions

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • IR Remote Control
  • Power Adapter
  • Power Cord
  • USB 3.1 Gen 1 Cable
  • Camera Breakout Cable


  • 1/2.8" 2MP CMOS Sensor

  • 10x Optical/12x Digital Zoom

  • Up to 1920 x 1080p60 Video Output

  • 128 Preset Positions



  • 2-Megapixel HD Sensor

  • 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)

  • Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height

  • USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output

  • Full-HD resolutions: 1920x1080p, 1280x720p

  • Frame rates: 60, 50, 30, 25 fps

  • HDMI output resolution can be set independently of USB output resolutions

  • Onboard audio mic & 3.5mm TRS audio jack (optional input)

  • Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range

  • Up to 128 presets with quiet, smooth transitions

  • Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0/2.0

  • Breakout Cable, USB 3.0/2.0 cable, and 12V Power Cord included with camera


Marshall's new second-generation CV610-U3W-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output. The CV610-U3W-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs. The CV610-U3W-V2 was developed to deliver next-level performance for any UCC, teleconference, Pro A/V, or livestreaming applications with HD video output in 1920x1080p at 60/50/30/25 fps, and 1280x720 at 60/50/30/25 fps.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

d5364907a015463bb2021264f644d33d
Marshall Electronics

Marshall CV610-U3W-V2 Compact PTZ Camera with USB 3.0/2.0 and HDMI

$899.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1-Chip 1/2.8" CMOS Sensor

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

50 dB

N/A

Gain

-3 to 28 dB

N/A

Shutter Speed Range

1/1 to 1/10,000 sec

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Image Flip, Mirror (Vertical)

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

1 x HDMI Type A (HDMI 1.0) Female 1 x USB 3.0 Type-B (USB Video) Female

N/A

Audio Input

N/A

N/A

Audio

1 x 1/8" / 3.5 mm Stereo Mic Level Input

N/A

Camera Control

128 via IR, RS-232,IR RS-232 RS-422 RS-485 VISCA

N/A

Focal Length

3.8 to 38mm, f/1.8 to 3.4

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

350°

N/A

Tilt Angle

120°

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

10x

N/A

TAA Compliant

N/A
