Marshall Electronics VMS-20 Video Management Software

VMS is a powerful IP Video Surveillance Software Package providing rich features and ease of operation. VMS offers live monitoring and recording of a large number of IP cameras and video servers with an easy to use interface. Various types of events and schedule based recording are designed to fulfill each customers needs. The included Relay function provides stable real time streaming to multiple viewers and prevents system overload. VMS-16 software is included free with the purchase of any VS-camera or video server and can be upgraded to any of the larger versions through the purchase of a site licenses.

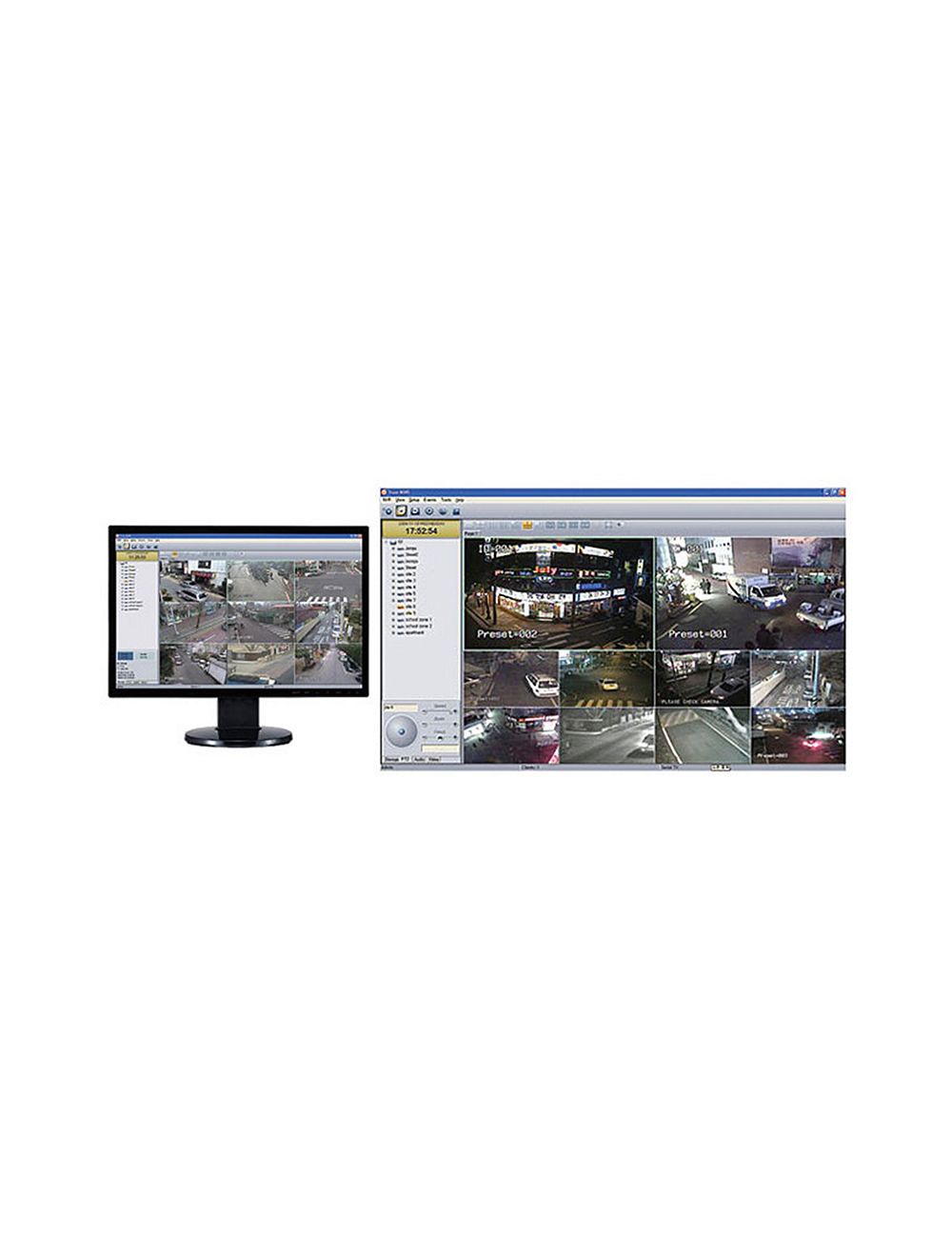

Live View Mode

• Supports Live monitoring of up to 64/36/16CH*


• Automatic camera IP discovery


• Easy display mapping by mouse drag or Auto mapping function


• Supports up to 11 types of screen layout modes


• Create and manage screen pages


• Optimize PC performance by using 'decode visible channels only' function


• Access remote camera setup


• Supports Secondary monitor


• On-Screen PTZ and PTZ Preset/Tour functions


• Automatic video encoding configuration according to various screen modes


• Supports two way audio communications


• Play Wave files based on camera functions

* The number of supported Screen modes and channels depends on version license
* The number of actual channels depends on server's configurations, PC and network capacity

Recording Mode

• Supports up to *128/64/36/20/16CH Recording


• Supports connection to external storage


• Manual configuration of recording files size & duration


• Supports Continuous, Event-based and Manual Recording modes


• Pre & post event recording;
  • Motion • Sensor • Alarm • Video loss • Serial event


• Recording based on manually triggered events and scheduled events


• Recording based external events from other cameras


• Record Status mode:
  The Recording status of all system components can be monitored on this page.
  This mode doesn't require the CPU for decoding and display,
  as a result more cameras can be accommodated for recording and streaming

* The number of supported Screen modes and channels depends on version license
* The number of actual channels depends on server's configurations, PC and network capacity

T-MAP

• Map based monitoring


• Display image-based maps


• Add the list of cameras from VMS


• Easy placement of cameras on the map


• Display video manually or by using an event-trigger


• Supports two way audio communication


• Various types of actions based on events:
  • Highlight camera node
  • Pop-up video window
  • Sound effect
  • Event window display and logging
  • Automatic enabling of audio output
  • Change active channel


• Event log search

* The number of supported Screen modes and channels depends on version license
* The number of actual channels depends on server's configurations, PC and network capacity

Search & Playback

• Supports up to 16 / 20 / 36 / 64 / 128 Channels* of simultaneous playback


• Search by date, time and events


• Easy to use playback control interface


• Playback of individual storage files


• Supports remote search and playback from remote clients


• AVI file back up


• Supports format storage files generated by VMS


• Supports Snapshot


• Bookmark function

* The number of actual channels depends on cameras' configurations or PC capacity

Features

• Manage up to 128 64CH simultaneous live monitoring


• Up to 16 / 20 / 36 / 64 cameras / video servers


• Up to 16 / 20 / 36 / 128CH simultaneous recording


• Up to 16CH simultaneous search & playback


• Provides VMS-Client software for remote live view, search and playback


• Supports T-MAP application


• Streaming relay function


• Two way audio communication


• Supports PTZ controller device interface


• Recording based on schedule associated events


• Various events monitoring and alarm notification


• Supports H.264 and MJPEG video compression


• Supports Secondary Monitor


• Easy installation / Multi-Languages


• Customized event creation using event handler


• For remote VMS viewing use the included VMS Client
