SKU: OR841HDSDI  |  UPC: 801813139686

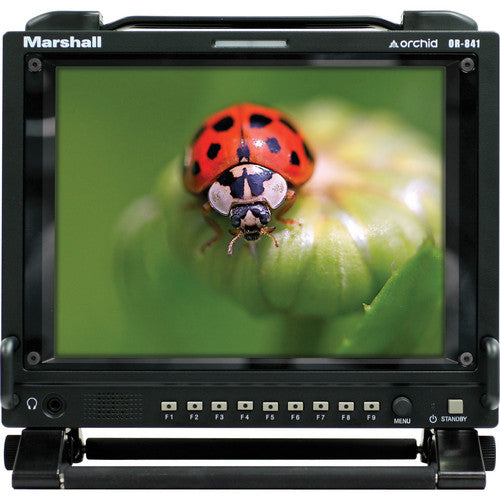

Marshall OR-841-HDSDI Full Featured Single 8.4" Field / Camera Top Monitor with HDSDI/SDI inputs only

$3,088.75
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • 1024 x 768 Resolution
  • 400 cd/m²
  • 500:1 Contrast Ratio
  • HD-SDI

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • 8.4" Portable Field Monitor

  • 1024 x 768 Resolution
  • 400 cd/m²
  • 500:1 Contrast Ratio
  • HD-SDI


  • Real-Time Waveform Monitor

  • Real-Time Color Vectorscope

  • Auto White Balance Calibration

  • Sixteen 64-segment Tri-color Audio Meters

  • Tri-Color Tally Indicator

  • On-Screen Time Code

  • 7 assignable GPI inputs

  • Adjustable Color Temperature

  • Auto-Sensing Front Panel Headphone Jack

  • Auto-Sensing Rear Unbalanced Stereo Output

  • Adjustable Clipping Indicator

  • Precision Gamma Settings

  • Adjustable Color Temperature

  • Variety of Safety Markers

  • HD-SDI / SDI Inputs and Output

  • Supports 3 different Battery Adapters

  • Factory-installed Protective Screen

  • Automatic Color Calibration with ORCHID Color Probe

  • Adjustable / Detachable Stand with top handle



The OR-841-HDSDI 8.4" ORCHID® rack mountable / portable field monitor has all the features that customers have asked for and more. The OR-841-HDSDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system.








The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x.








The OR-841-HDSDI will also de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring.








The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-841-HDSDI comes standard with auto-sensing HD-SDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera.
