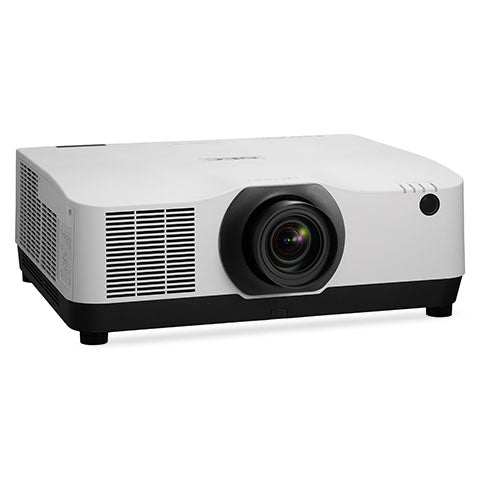

• NEC NP-PA804UL-W 8,200 Lumen Professional Installation LCD Projector with 4K support

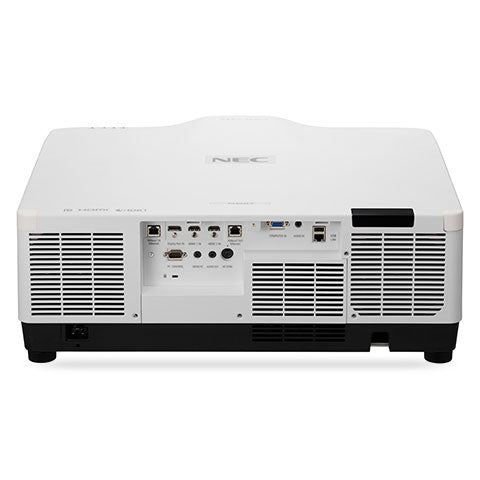

  • NEC NP-PA804UL-W 8,200 Lumen Professional Installation LCD Projector with 4K support view of back with ports inputs and outputs
  • NEC NP-PA804UL-W 8,200 Lumen Professional Installation LCD Projector with 4K support view of top

NEC NP-PA804UL-W 8,200 Lumen Professional Installation Laser LCD Projector with 4K Support

SKU: NPPA804ULW  |  UPC: 805736072990
$8,595.00 $15,399.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
AUTHORIZED DEALER
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • 8,200 ANSI Lumens Brightness
  • Native WUXGA Resolution (1920 × 1200)
  • 20,000-Hour Laser Light Source
  • Sealed Filter-Free Optical Engine
  • 4K/60Hz Signal Input Support
  • HDR10 Compatible
  • BT.2020 Signal Support
  • Interchangeable Lens System
  • Motorized Focus, Zoom & Lens Shift (with supported lenses)
  • HDBaseT Input & Output

Best For

🎓 Education 🏢 Corporate Collaboration ⛪ House of Worship 🏛️ Government 🏛️ Museums / Exhibits 🎥 Large Venue / Auditoriums

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

NEC PA804UL-W: 4K-Ready LCD Laser Projector

High-Performance Visuals

  • Resolution: 4096 x 2160 (4K UHD)
  • Brightness: 8,200 lumens for vivid images in bright environments
  • Contrast Ratio: 3,000,000:1 for enhanced color depth and clarity
  • Filter-Free Design: Maintenance-free operation with a sealed LCD cooling system

Ideal for Professional Installations

  • Perfect for: Corporate settings, higher education, museums, auditoriums, and sanctuaries
  • Ultra-Quiet Operation: Delivers high performance with minimal noise
  • Flexible Installation: Compatible with a range of optional motorized lenses (lens shift, zoom, focus)

Advanced Connectivity & Control

  • Multiple Inputs: HDMI, DisplayPort, and HDBaseT for seamless device integration
  • HDBaseT Input & Repeater: Transmits uncompressed HD video, audio, Ethernet, and control signals over a single cable
  • Dual HDMI & Dual Computer Inputs: Effortless switching between multiple sources
  • ProAssist™ Software: Network-based control for easy projector adjustments
  • Crestron RoomView Integration: Centralized control of multiple projectors via a network

Optimized Image Processing

  • 4K Ready Video Processing: Supports 4K 60P content with HDR10 & BT.2020 for superior image quality
  • Cinema-Quality Scaling: Ensures life-like images with NEC’s proprietary video processing chip
  • VORTEX Technology Plus: Enhances white levels, color accuracy, and dynamic range
  • Built-in Wall Color Correction: Adapts color tones for projection on non-white surfaces
  • Geometric & Cornerstone Correction: Enables projection on curved or angled surfaces

Versatile Installation & Display Features

  • Tilt-Free & Portrait Mode: Supports 360° rotation and vertical orientation for custom applications
  • Stacking Capabilities: Increases brightness up to 20,000 lumens for large-scale presentations
  • Edge Blending & TileMatrix™: Seamlessly combine multiple projectors for high-resolution video walls
  • PIP/POP/Side-by-Side Display: View multiple content sources simultaneously
  • Power Zoom, Focus & Lens Shift: Adjust the image easily for precise alignment

Smart Features for Hassle-Free Operation

  • AutoSense™ Technology: Automatically syncs with connected devices for optimized images
  • Quick Startup & Power-Off: Ready to present in seconds with instant shutdown capabilities
  • Direct Power Off Protection: Ensures proper lamp cooling even if the power is disconnected
  • Power Management: Automatically shuts down when no input signal is detected
NEC

NEC NP-PA804UL-W 8,200 Lumen Professional Installation Laser LCD Projector with 4K Support

$8,595.00 $15,399.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

23.6 x 8.5 x 19.3 in. / 599 x 216 x 490 mm

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Content

N/A

N/A

Native Resolution

1920 x 1200

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

3,000,000:1

N/A

Throw Distance

Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m

N/A

Lens

Zoom Motorized NP11FL - NP12ZL 1.3x NP13ZL 2.0x NP14ZL 1.6x NP15ZL 1.52x NP44ML-02LK 1.0x NP40ZL 1.4x NP41ZL 2.3x NP43ZL 2.0x Focus Motorized NP11FL F=2.3, f= 13.2mm, 2.6lbs. / 1.2 kg NP12ZL Maual zoom / focus, F=2.2 to 2.69, f= 19.4 to 25.3mm, 2.6lbs. / 1.2 kg NP13ZL Maual zoom / focus, F= 1.7 to 2.37, f= 24.2 to 48.6mm, 1.6lbs. / 0.84 kg NP14ZL Maual zoom / focus, F= 2.2 to 2.64, f= 48.5 to 77.6mm, 2.2lbs. / 1.0 kg NP15ZL Maual zoom / focus, F= 2.2 to 2.7, f= 76.6 to 116.5mm, 2.2lbs. / 1.0 kg NP44ML-02LK Motorized zoom / focus, F=2.0, f= 6.27, 6.8 lbs. / 3.1 kg NP40ZL Motorized zoom / focus, F=2.0 to 2.5, f= 13.3 to 18.6mm, 3.5lbs. / 1.6 kg NP41ZL Motorized zoom / focus, F=1.7 to 2.0, f= 21.8 to 49.8mm, 3.7 lbs. / 1.7 kg NP43ZL Motorized zoom / focus, F=2.2 to 2.6, f= 49.7 to 99.8mm, 3.7 lbs. / 1.7 kg

N/A

Inputs

RGB1 (analog) VGA 15 pin D-sub, Component video using ADP-CV1E adapter RGB2 (digital) HDMI (V2.0) w/HDCP (V1.4/2.2) RGB3 (digital) HDMI (V2.0) w/HDCP (V1.4/2.2) RGB4 (digital) DisplayPort w/HDCP (V1.3) RGB5 (digital) HDBaseT w/HDCP (V1.4/2.2) Audio1 Stereo Mini Jack

N/A

Outputs

Monitor Out HDBaseT w/HDCP (V1.4/2.2) Audio Out Stereo Mini Jack 3D Sync Line 3Pin Din

N/A

Display Technology

LCD

N/A

Wireless Networking

-

N/A

Speakers

-

N/A

Economode

20000 hours

N/A

Audible Noise

30.0 dB

N/A

Lamp Life

20000 hours

N/A

Short Throw

No

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Image Size Diagonal

40 to 150 in. / 1.02 to 3.8m, NP11FL; 30 to 500 in. / 0.76 to 12.7m, NP12ZL; 40 to 500 in. / 1.02 to 12.7m, NP13ZL; 50 to 500 in. / 1.27 to 12.7m, , NP40ZL, NP41ZL, NP43ZL; 60 to 500 in. / 1.52 to 12.7m, NP14ZL, NP15ZL; 100 to 400 in. / 2.54 to 10.16m, NP44ML-02LK

N/A

Lens Shift

Horizontal & Vertical

N/A

Data / Video Signals

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD

N/A

Digital Keystone

Vertical & Horizontal

N/A

Unit Weight

53.1 lbs. / 24.1 kg

N/A

Projector Methods

Front, Ceiling, Rear

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

23.6 x 8.5 x 19.3 in. / 599 x 216 x 490 mm

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

23.6 x 8.5 x 19.3 in. / 599 x 216 x 490 mm

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Sensor

N/A

N/A

Resolution

N/A

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

N/A

N/A

TAA Compliant

N/A
